5.2 Attaching the terminal cover
An optional terminal cover is available for the RHINO2 controller. This can be ordered
separately – see 8.2 Parts List for more details.
The terminal cover kit comprises a terminal cover and three M3x8mm screws.
To attach the terminal cover, offer it towards the top case ensuring that the locating-lugs
(see image below) are positioned in the recesses in the top case, and then screw the
terminal cover to the top case with the M3 screws provided.
Note
1.
Tighten the screws with a hand torque wrench to 80 cNm. Over-tightening may cause thread damage on
the top case.
2.
When attaching the terminal cover, ensure that no cables are trapped.

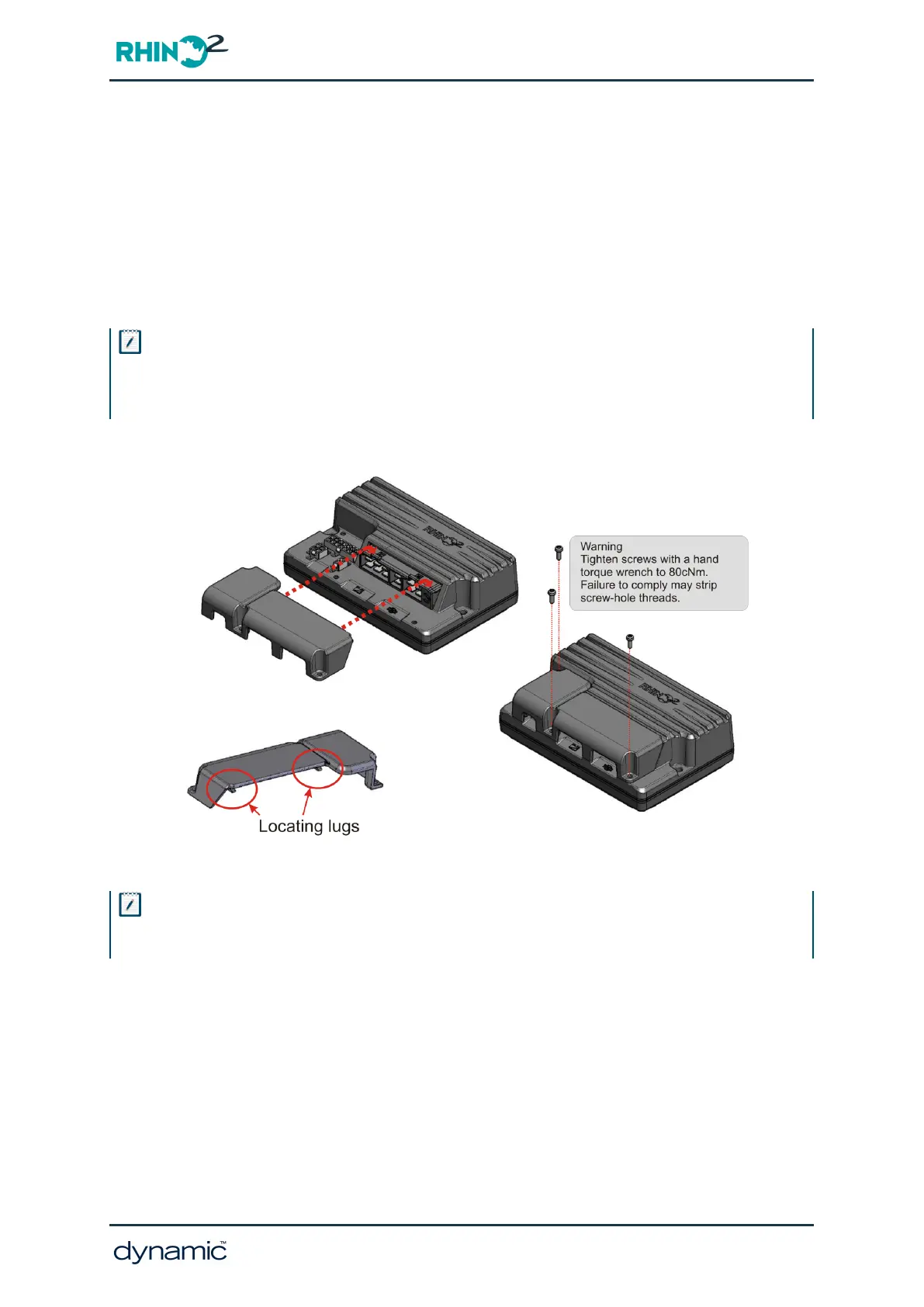

Figure 11: Attaching the terminal cover
Note
The terminal cover should not be fitted more than five times. If fitted more than five times, there is a risk of
stripping the threads of the screw holes.
GBK51948 RHINO2
Installation Manual Issue 5
Installation and testing - Page 19
