5.7.2 Programmer Connections

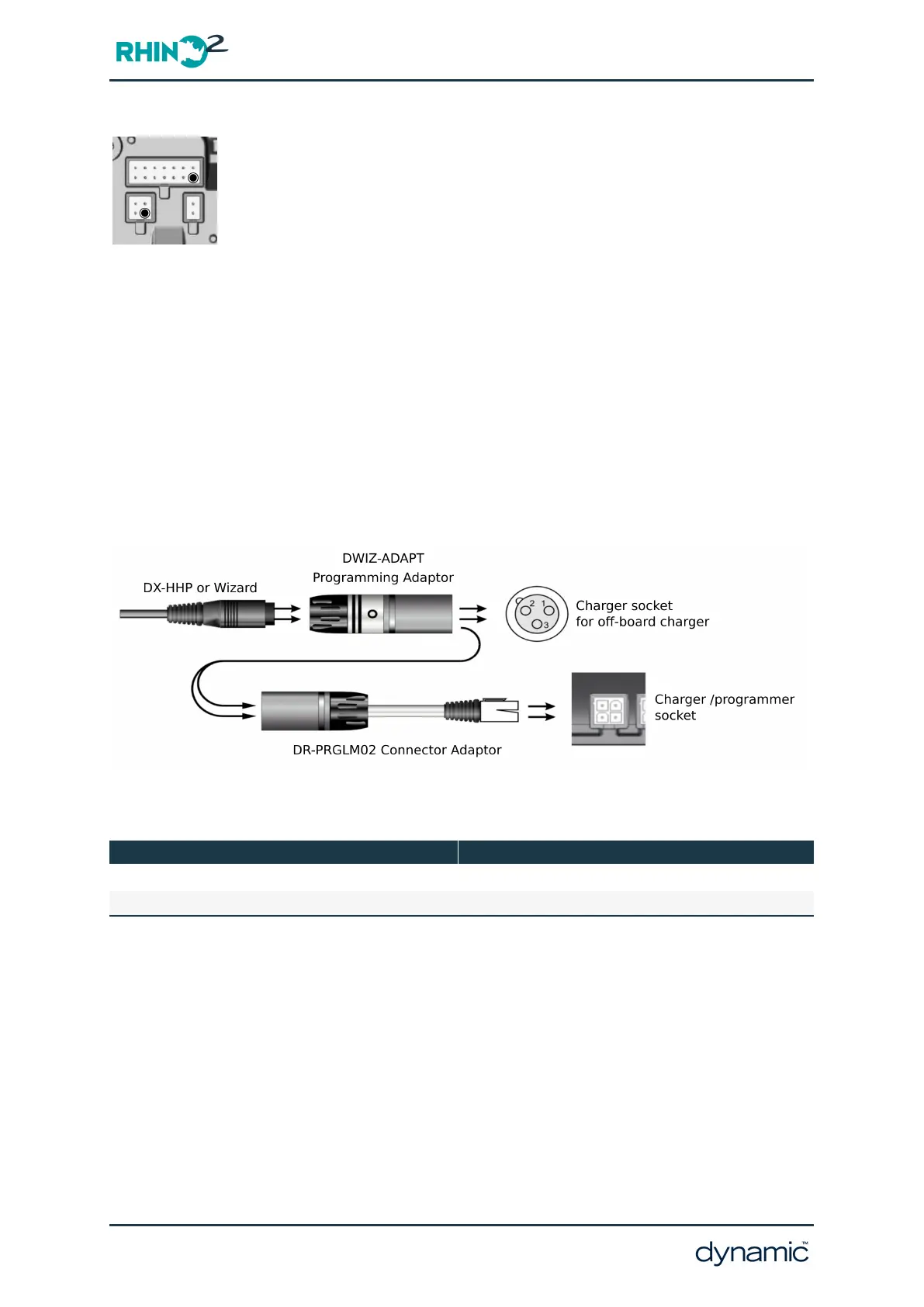

Figure 19:
Programmer
connections
Pin 14 of the Tiller Connector and pin 4 of the charging/programming
connector can both be used for programming the RHINO2. Charging and
programming cannot occur using the same inhibit pin at the same time.
The RHINO2 programming adapter will plug directly into an off-board charger socket or into
the 4-pin Molex Mini-Fit Junior connector with the use of the AMP programming adapter. If
an on-board charger is installed, it will be necessary to disconnect it prior to programming
through this connector.
The RHINO2 can be programmed with two different programming tools:
l
The DX-HHP hand-held programmer (6.1 The Hand Held Programmer (HHP) )
l
The PC-based Wizard programmer (6.2 Dynamic Wizard)
Figure 20: Programming adaptors
Programming socket Adaptors needed
XLR Charger socket DWIZ-ADAPT
Charger/Programmer socket DWIZ-ADAPT + DR-PRGLM02
Page 32 - Installation and testing
