GBK51948 RHINO2
Installation Manual Issue 5
5.10.2 Multifunction Outputs
The Multifunction Outputs will output signals dependent on the condition of the controller
or batteries. As with the Multifunction Inputs, the Multifunction Output pins have been
designed to offer maximum flexibility in the implementation of the scooter feature set and
are programmable using the Wizard.
With the exception of the status output on Pin 10, these functions are not configurable as
to their active state and do not have the ability to be latched. The specific functionality of
each output is explained in the previous sections:
l
5.9.10 Status Indicator Output
l
5.9.11 Beeper Output
l
5.9.12 Battery Gauge Output
l
5.9.13 Brake and Reversing Lights
The table below shows the supported functionality for each input pin.
Pin 3 Pin 10 Pin 11
Beeper ● ●
Brake Light ● ●
Reversing Light ● ●
Status ● ●
Power Status ● ●
Status High ●
Status Low ●
Fault High ●
Fault Low ●
5 V Battery Gauge ●
12 V Battery Gauge ●
Other (multi-LED battery gauge display) ●
For more information, see 6.5.10 Multi-function
Outputs Configuration.
If the Deep Discharge Beeper (beep on low
battery) is enabled, all pins configured for
'Beeper', 'Status ', or 'Status High/Low' will issue
this warning. The warning is a Flash Code 1
1
.

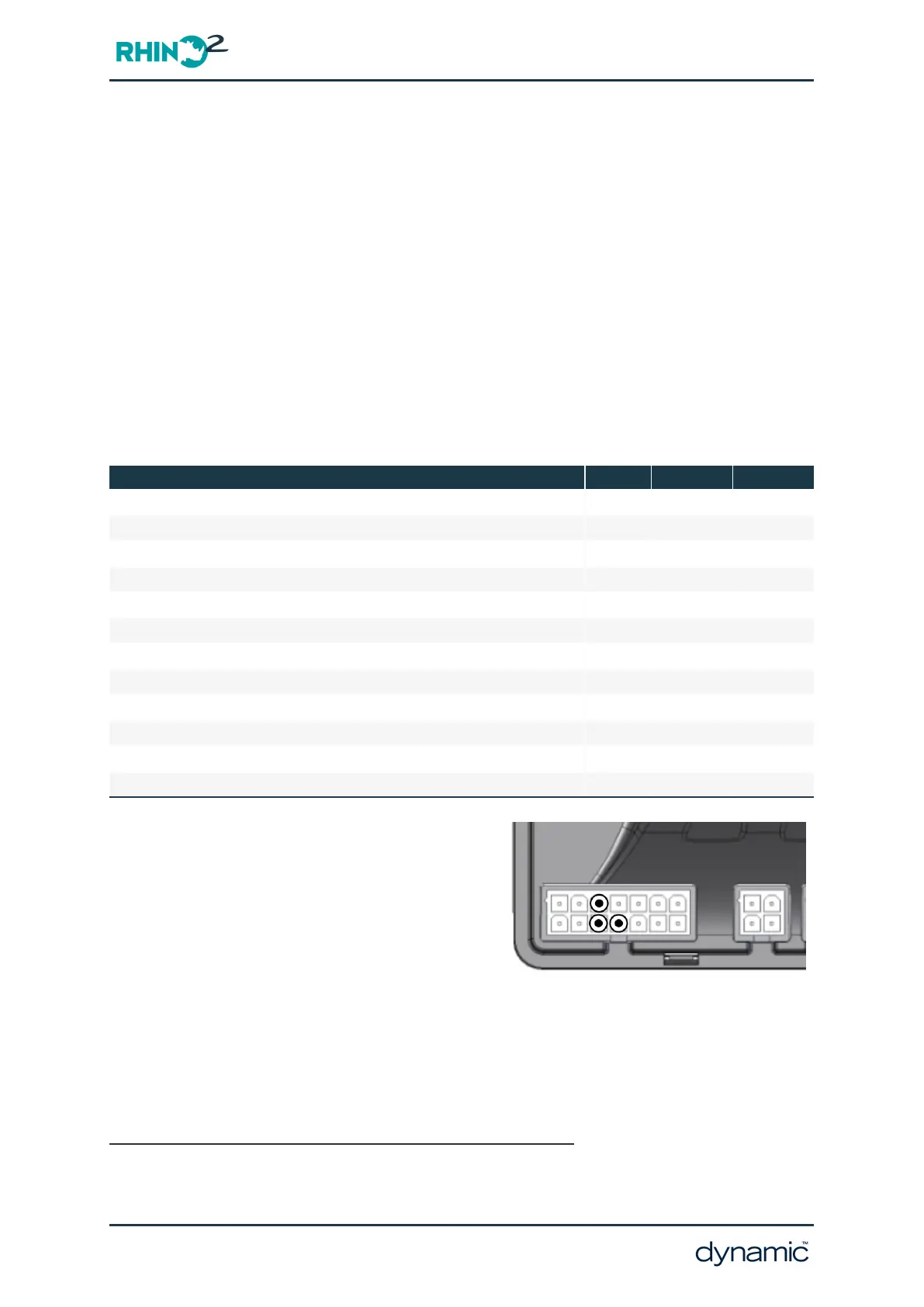

Figure 29: Multifunction Output Pins
1
Flash Code 1 appears for Flash Code Types: Scooter, R-Series, and Type 3. For Flash Code Type ‘Shark’, the Flash Code is 2;
for Flash Code Type ‘Type 4’, the Flash Code is 1-4.
Page 50 - Installation and testing
