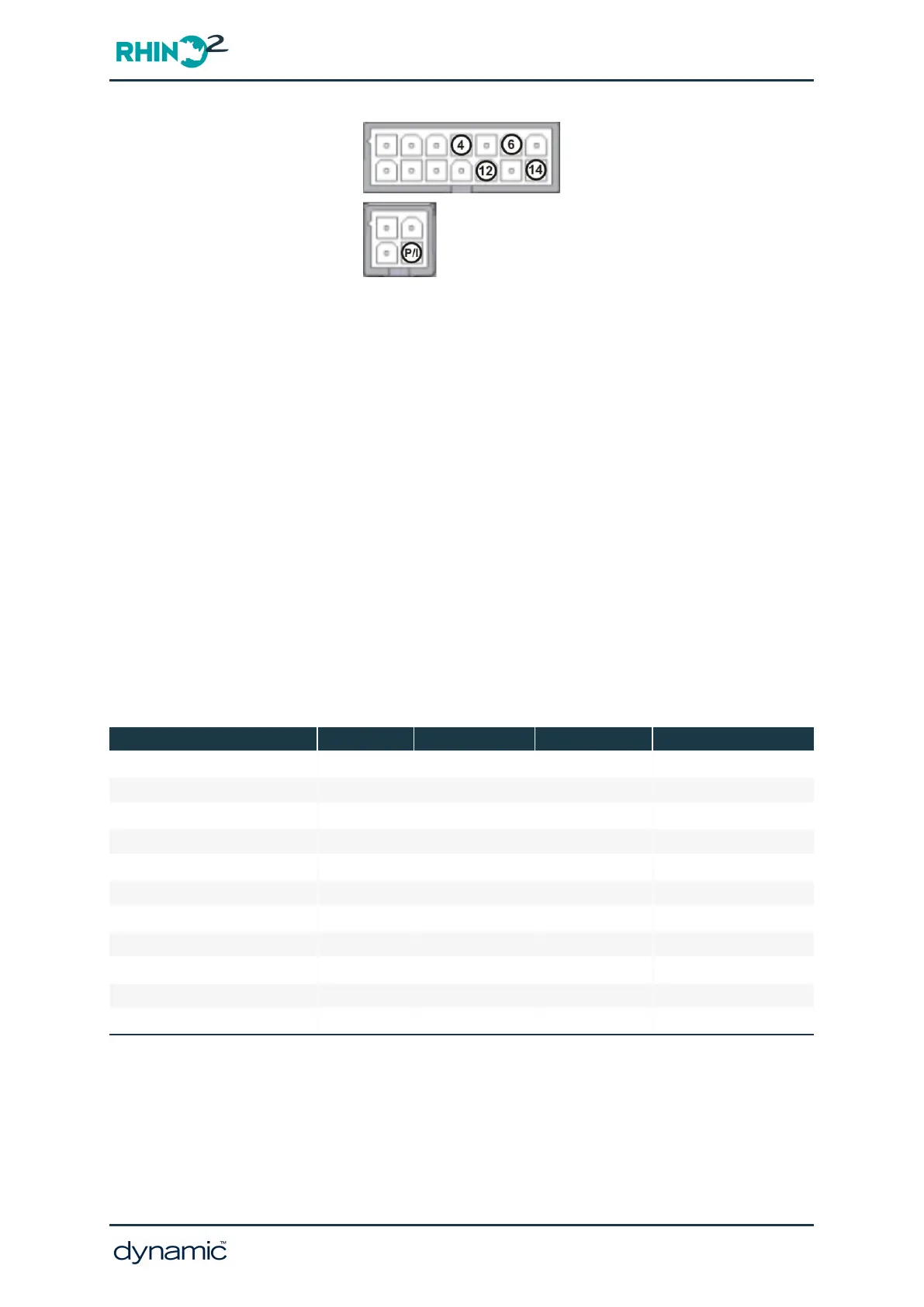

Figure 28: Multifunction Input Pins
The configurable options for each input pin are:
Active — This defines the circuit state at which the function operates.
Slows to — If a Slow function is active, this is the speed the scooter will be
limited to.
Latches — This defines whether the function is latching. If a function is latched,
the active condition will have to be removed and the controller turned off and
then on again before the function will be turned off. The Latches parameter
applies only to the functions that inhibit driving: Charger Inhibit and Stop.
Flashes — During Drive Inhibit (when a Stop condition or a Charger Inhibit
condition occurs) a flash code will be displayed.
Due to the nature of the different functions, some functions do not support the complete
range of configuration. See the table below for further details.
Active Slows to Latches Flashes
SRW
SRW (variable)
Profile 2 ●
Charger Inhibit ● ● ●
Slow ● ● ● ●(0% only)
Reverse Drive ●
Release Brake ●
Slow/Stop Fwd ● ● ● ●
Slow/Stop Rev ● ● ● ●
Slow/Stop ● ● ● ●
Neutral Detect ●
GBK51948 RHINO2
Installation Manual Issue 5
Installation and testing - Page 49
