6.1 The Hand Held Programmer (HHP)
The DX-HHP Hand Held Programmer (HHP) is a programming tool that
gives access to drive parameters (such as speed and acceleration) and
throttle calibration. A technician mode additionally gives access to
system settings such as load compensation, and can read extensive
system diagnostics such as motor voltage.
Note
The Wizard PC-based programmer has an HHP emulator mode:
Tools -> Plug-ins -> HHP Emulation
Warning
The DX-HHP is for use only by scooter manufacturers and their authorised dealers. It is not for use by the
scooter user. Dealers may only program parameters as instructed by the scooter manufacturer.
The DX-HHP Manual should be read and understood before attempting to use the HHP.
l
Turn on the scooter before you connect the programmer to the RHINO2.
l
All changes are saved immediately, it is not necessary to disconnect the HHP or to
cycle the power to save changes. For this reason it is not possible to cancel a change,
other than to set the parameters back to their original settings manually.

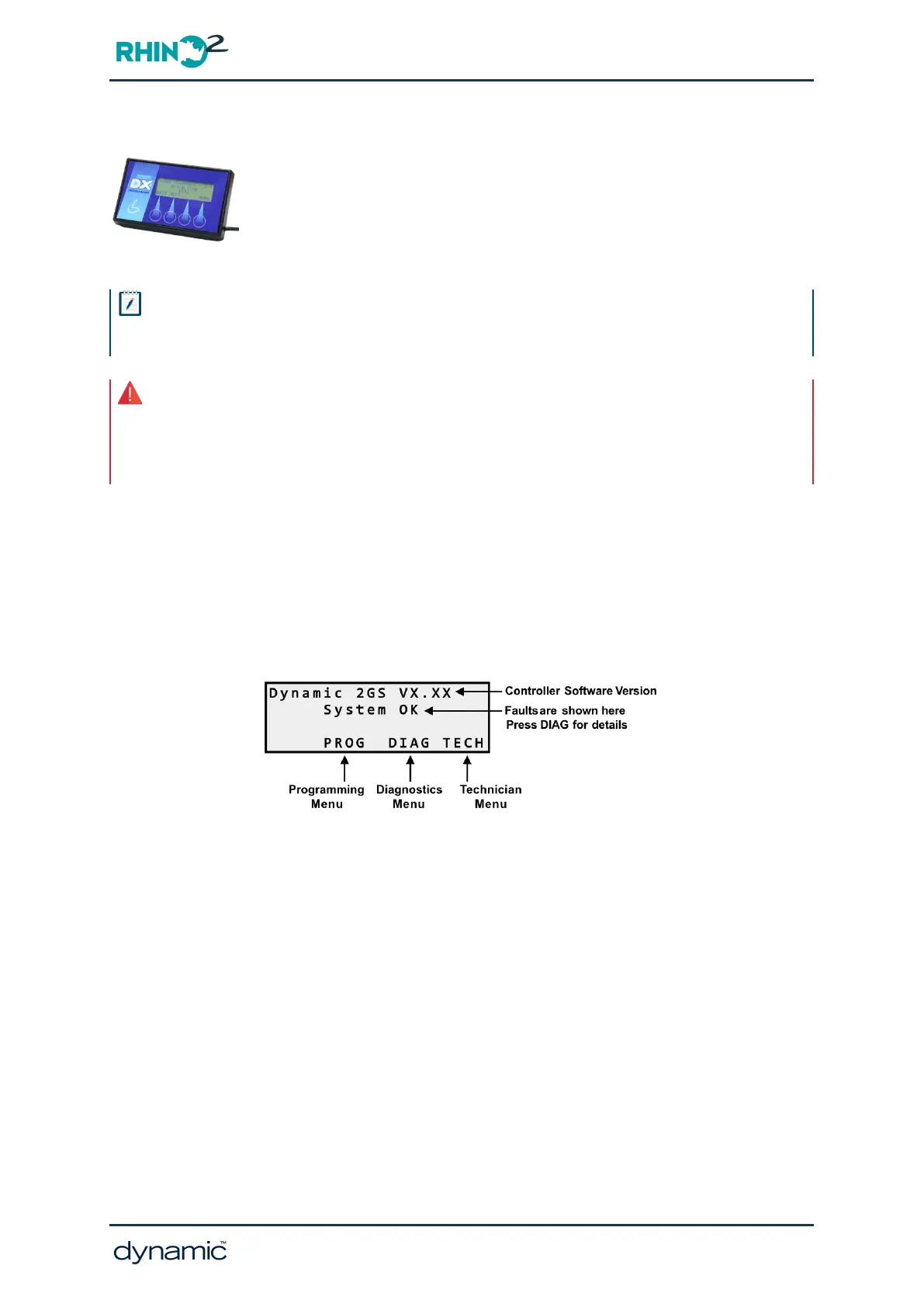

Figure 32: Programmer Main Menu Screen
The following sections describe the menus of the HHP and give a parameter listing if
applicable.
l
6.1.1 Programming menu
l
6.1.2 Diagnostics menu
l
6.1.3 Technician menu
6.1.1 Programming menu
The programming menu gives access to
l
The speed and acceleration settings of Drive Profile 1 and Drive Profile 2
l
Other (non-profiled) settings such as left or right-handed throttle, sleep timer, beeper
settings and the service scheduler
l
Throttle calibration
GBK51948 RHINO2
Installation Manual Issue 5
Programming - Page 57
