GBK51948 RHINO2
Installation Manual Issue 5
Option Description

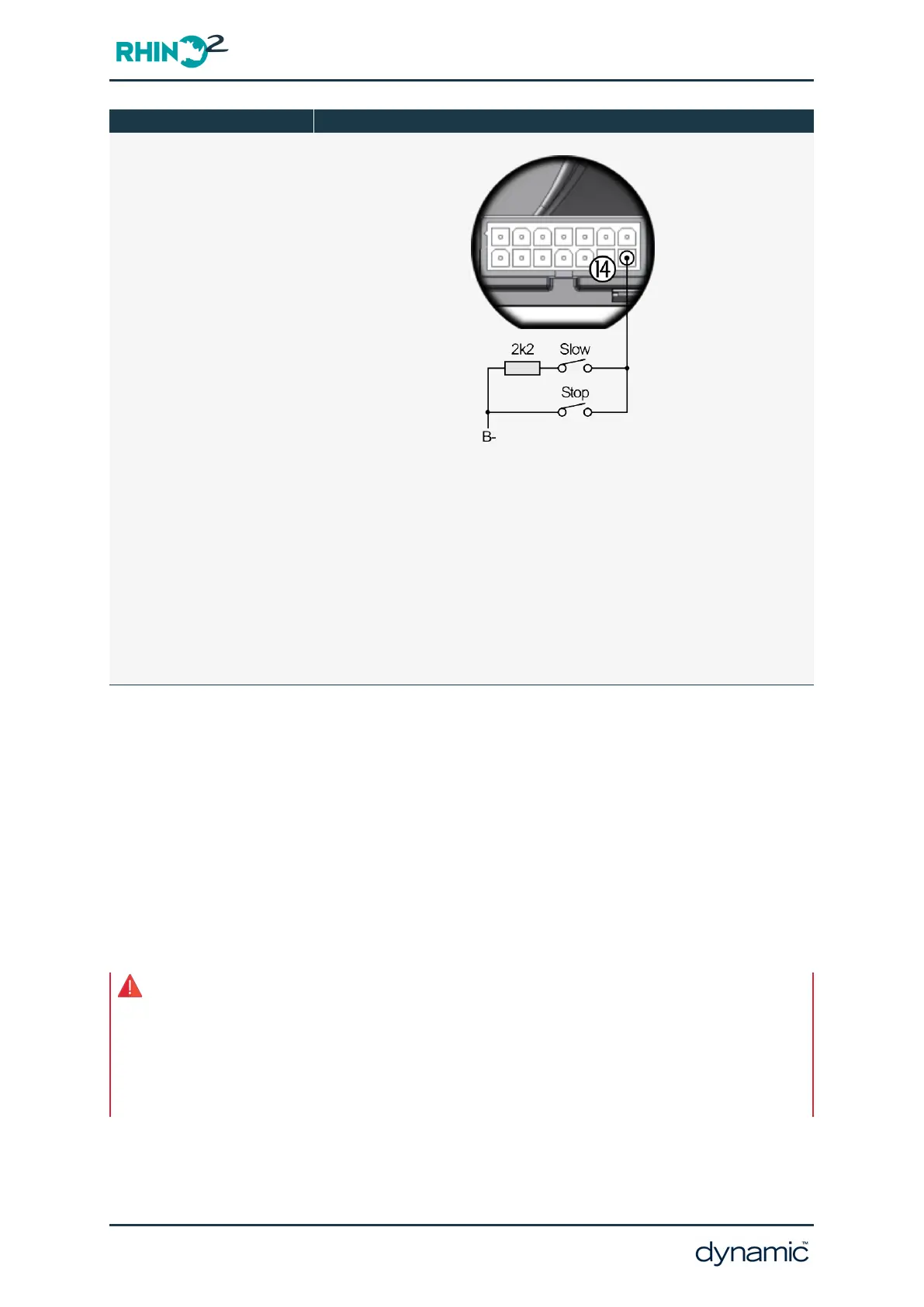

Slow/Stop
This function has three states: Inactive, Slow and Stop.
When Slow is active, the scooter will slow to a programmed speed limit
(a percentage of the maximum speed). Has no effect on scooter
acceleration or deceleration.
When Stop is active, the scooter will stop at the programmed
Emergency Deceleration rate.
Available on Tiller Connector Pins 4, 6, 12, and 14 and
Charger/Programmer Connector Pin 4.
5.9.8 Tiller Battery Supply
Pin 7 provides the Battery Positive (B+) supply to the tiller, while Pin 13 provides the
Battery Negative (B-) return. These pins have current ratings of 9A and can be used for
wiring an XLR socket for an off-board battery charger. An external fuse (maximum rating of
8A) should be installed into the Battery Positive circuit. Refer to section 5.7 Battery
Charging and Programming Connections for further details about battery charging.
The B+ and B- supplies must not be connected either directly or through switches to the
same input connector.
Warning
A suitable fuse (maximum rating of 8A) must be installed in the Battery Positive wire to protect the scooter
wiring Fuse to be connected as close as practical to the controller connector, to minimise the length of
unprotected wiring.
In connecting switches between an input pin and either Battery Positive or Battery Negative, the installer must
ensure that there is no possibility of the switch(es) connecting Battery Positive to Battery Negative.
Page 44 - Installation and testing
