GBK51948 RHINO2
Installation Manual Issue 5
Note
The status indicator can be configured to display five different types of diagnostics flash code plus battery deep
discharge warning.

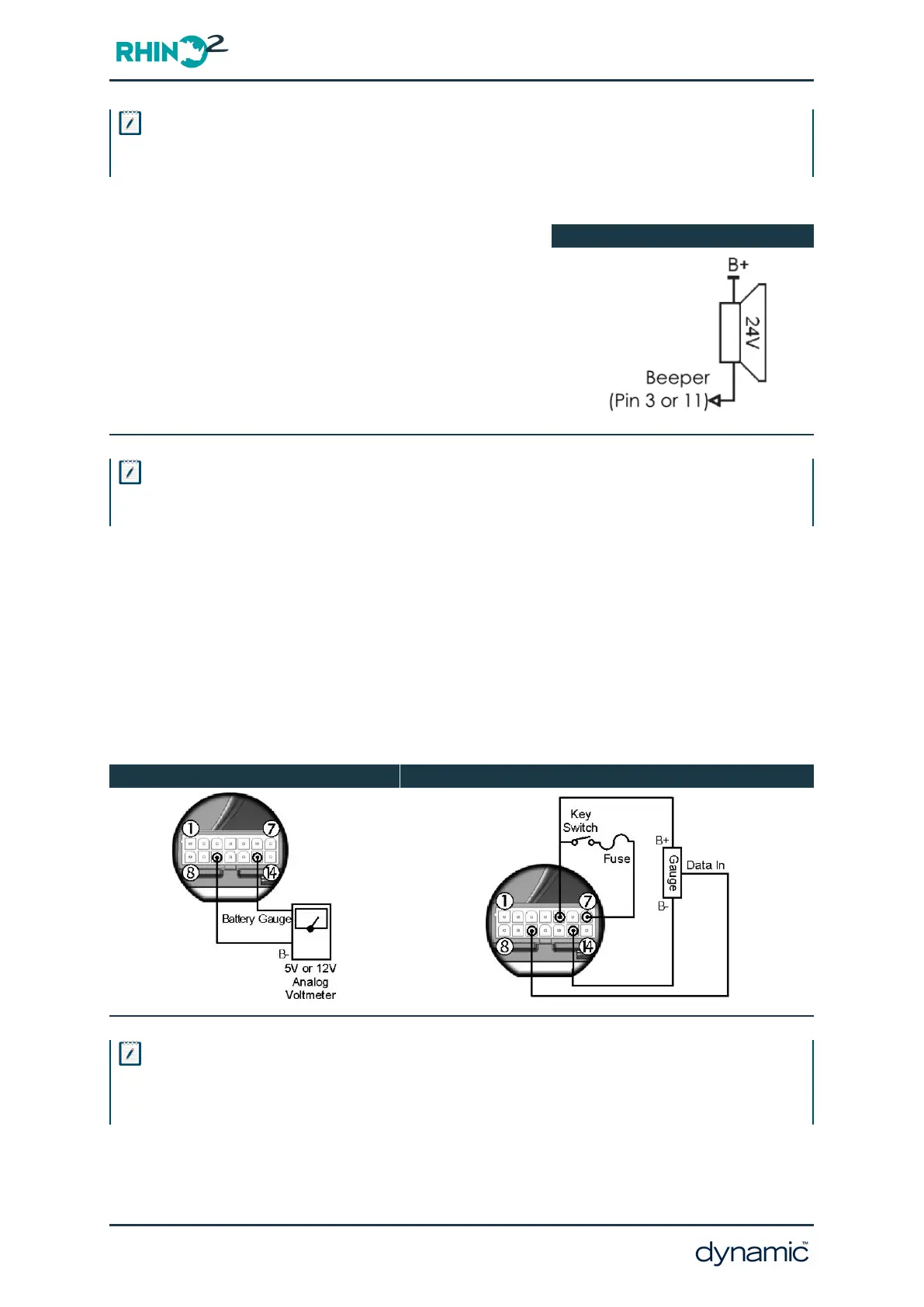

5.9.11 Beeper Output
Pins 3 and 11 on the tiller connector can be configured
as a beeper output. They are both capable of an output
up to 500 mA.
Beeper
Note
The following beeper functions can be enabled or disabled: beeping when entering sleep mode, beeping the
fault codes, beeping when driving in reverse plus battery deep discharge warning.
5.9.12 Battery Gauge Output
The RHINO2 has incorporated a battery capacity algorithm and can output this to either a 5
V or 12 V voltmeter battery gauge display (shown below). Alternatively, a digital LED display
is supported by using the “LED Battery Gauge” wiring shown on the right. The algorithm
used is the same as the Dynamic Shark power chair controller and has built-in filters to
adjust for voltage dips under load and floating voltages after periods of idling.
This function is available on Pin 10 of the tiller connector and is rated for 10 mA source.
Voltmeter Battery Gauge LED Battery Gauge
Note
For a 5 V Voltmeter Battery Gauge, set Pin 10 Function to '5V Gauge'.
For a 12 V Voltmeter Battery Gauge, set Pin 10 Function to '12V Gauge'.
For an LED Battery Gauge, set Pin 10 Function to 'Other'.
Page 46 - Installation and testing
