5.6 Park Brake Connections
Park Brake Connections
Pin Function Wire Gauge
1 Park Brake Negative
0.5mm
2
/ 20AWG
2 Park Brake Positive
Mating Connector Part Numbers
Dynamic Part # Part Description Supplier Part #
GCN0884 Molex ‘Mini-Fit Jr’ 2-socket housing 39-01-3028
GCN0771 Molex ‘Mini-Fit Jr’ Receptacles 18-24AWG 39-00-0039
The RHINO2 supports a 24 V park brake that is connected to the park brake connector.
A manual park brake release lever can be fitted so the scooter can be pushed when the
controller is turned off. To meet ISO requirements, if a manual park brake release lever is
fitted, a micro-switch should be connected in such a way that it inhibits driving when the
park brake is released.
For example, wire a micro-switch to any Multifunction input that is configured to inhibit
driving and mechanically couple this switch to the park brake release lever.

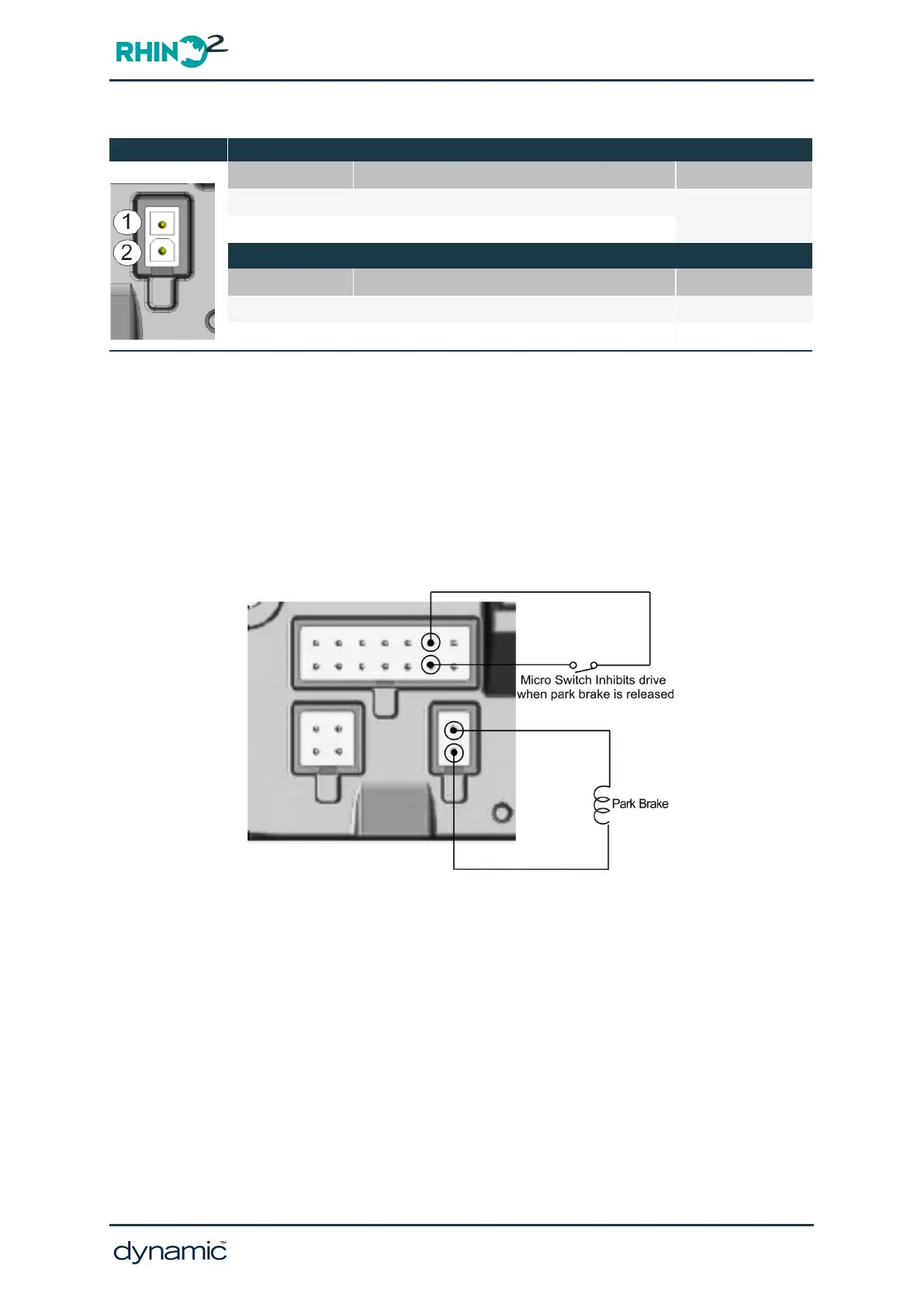

Figure 14: Recommended Park Brake Wiring using a mechanical release lever
GBK51948 RHINO2
Installation Manual Issue 5
Installation and testing - Page 27
