5.9 Throttle Configuration
Select the correct throttle type with the Throttle Type parameter:

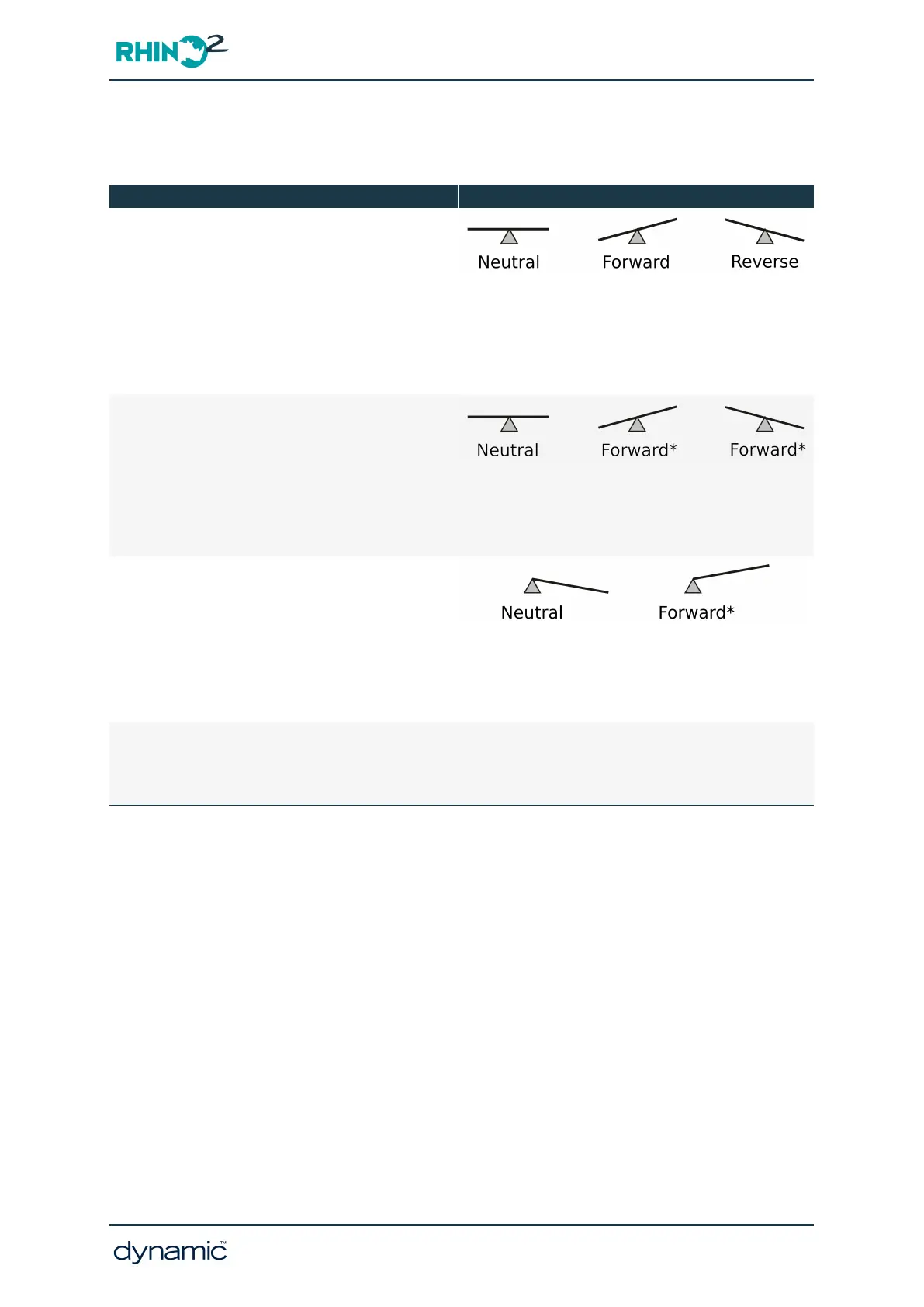

Throttle Type Description
Wig-wag
To swap the forward and reverse directions (for
left-handed use), set the Swap Throttle Direction
parameter to 'Yes'.
Uni-polar
The scooter moves in the same direction for both
sides of the throttle.
Single-ended
Neutral is not halfway but at the start of the pot.
The full speed position in a single direction is at
the end of the pot.
* The direction is dependent on the position of a Forward/Reverse switch. Connect this switch to one of the
Multifunction Inputs (see 5.10.1 Multifunction Inputs), and set the corresponding Pin [x] Function parameter to
'Reverse Drive'.
To have more throttle control at low speeds, increase the Throttle Response parameter.
5.9.1 Protection against open-circuit, short-circuit and leakage current
The RHINO2 offers OEMs a number of options for complying with international safety
standards, EN12184 and ISO7176, with respect to the integrity of the scooter's throttle
signal.
When single fault conditions occur on a scooter, the standards require appropriate means
should be adopted to eliminate or reduce, as far as possible, consequent risks.
For the throttle signal, this means an error due to an open-circuit, short-circuit or leakage
current does not result in a hazardous situation. Specifically, if it is reasonably foreseeable
that a short circuit, open circuit or leakage current could occur between conductors that
carry analogue speed or direction signals, reference voltages, or supply voltages, then the
identified possibilities must be tested and comply with the requirements.
GBK51948 RHINO2
Installation Manual Issue 5
Installation and testing - Page 35
