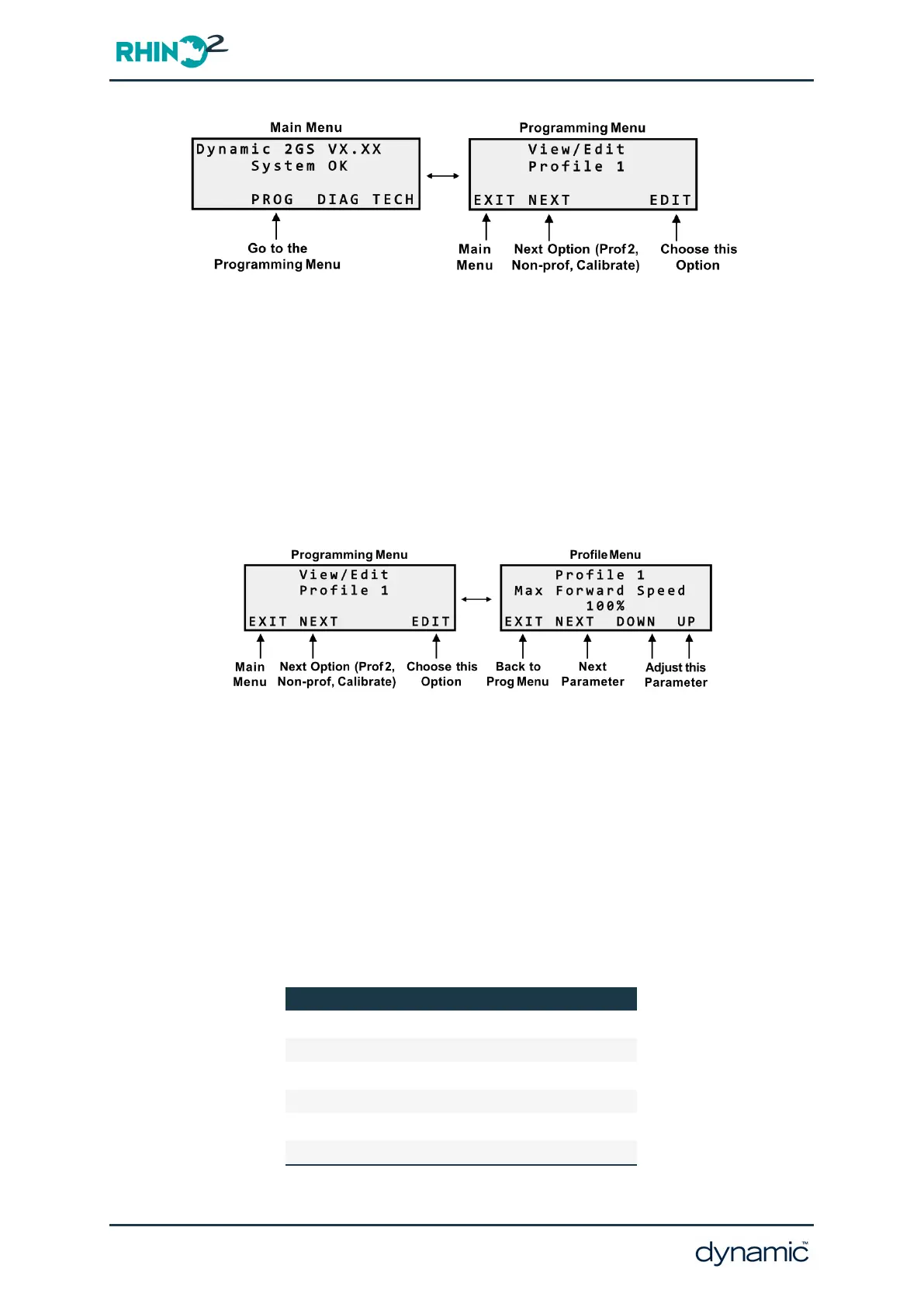

Figure 33: Programming menu
6.1.1.1 Profile 1/2
The RHINO2 has two Drive Profiles that are typically used as follows:
l
Drive Profile 1 - Normal Drive
l
Drive Profile 2 - A 'Slow Speed' mode for indoor use, that the user can select with a
'Slow' switch
Normally Drive Profile 1 is always selected. Drive Profile 2 is only used when Pin [x]
Function is set to 'Profile 2' and the associated input pin is activated.
Figure 34: Profile menu
1. In the Main Menu screen, press PROG to enter the Programming Menu.
2. To select Drive Profile 1, press EDIT. To select Drive Profile 2, press NEXT and then
press EDIT.
3. Press NEXT until the desired parameter is shown.
4. Press UP or DOWN to adjust the parameter to the desired value. Please note that
each change is effective immediately, there is no option to cancel a change. To undo
a change, manually set the parameter back to its original setting with UP or DOWN.
5. Press EXIT twice to return to the Main Menu.
For each drive profile, the following parameters can be adjusted:
Parameter
Maximum Forward Speed
Forward Acceleration
Forward Deceleration
Maximum Reverse Speed
Reverse Acceleration
Reverse Deceleration
Page 58 - Programming
To Next Page
