2) If the batteries are not connected and the scooter is rolling away at some speed, the anti-rollaway feature
may cause sudden braking so that it can reduce the speed of the scooter quickly; this may be upsetting and / or
dangerous for the occupant.
6.5.3.15 Speed Reduction Wiper (SRW) parameters
Parameter Possible Values Default HHP Lite Std Adv
SRW Forward Speed Limit 0 - 100 % 50 %
✓ ✓
SRW Reverse Speed Limit 0 - 100 % 50 %
✓ ✓
SRW Forward Speed Scale 0 - 100 % 50 %
✓ ✓
SRW Reverse Speed Scale 0 - 100 % 50 %
✓ ✓
These parameters are only used when Pin [x] Function, where ‘x’ is 4, 6 or 12, is set to
'SRW' or ‘SRW (variable)’.
When Pin [x] Function, where ‘x’ is 4, 6 or 12, is set to 'SRW', or ‘SRW (variable)’ the RHINO2
reduces the speed proportionally to the resistance between pin x (4, 6 or 12) of the tiller
head connector and Battery Negative (B-).
If Pin [x] Function is set to 'SRW', and the resistance is 10kΩ or more, the speed is not
reduced. If the resistance is zero, the speed is reduced to the value of any of the four SRW
Speed parameters.
If Pin [x] Function is set to 'SRW (variable)' and the resistance is the value of SRW Scaling
Resistor (Ohm) or more, the speed is not reduced. If the resistance is zero, the speed is
reduced to the value of any of the four SRW Speed parameters.
For more information on Speed Reduction Wiper connections, see section 5.9.7 Alternative
Speed Reduction Options.

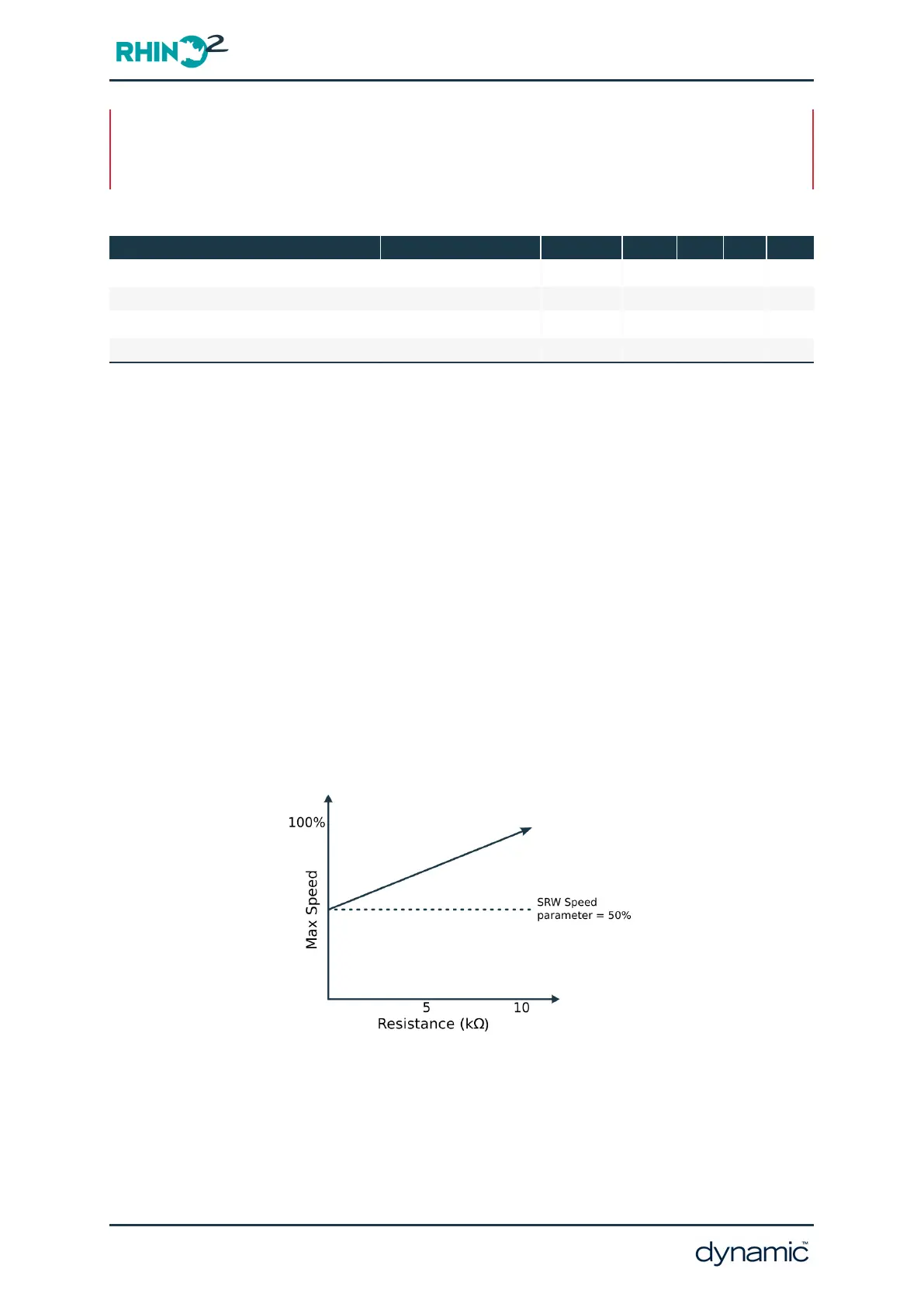

Figure 53: Speed Reduction Wiper (SRW) parameters
The speed can be reduced in 2 different ways:
Limit — Limits the speed of the scooter itself. This means that the throttle can still ask for
100% speed, but when the scooter reaches the SRW Speed Limit value, the actual speed
Page 90 - Programming
