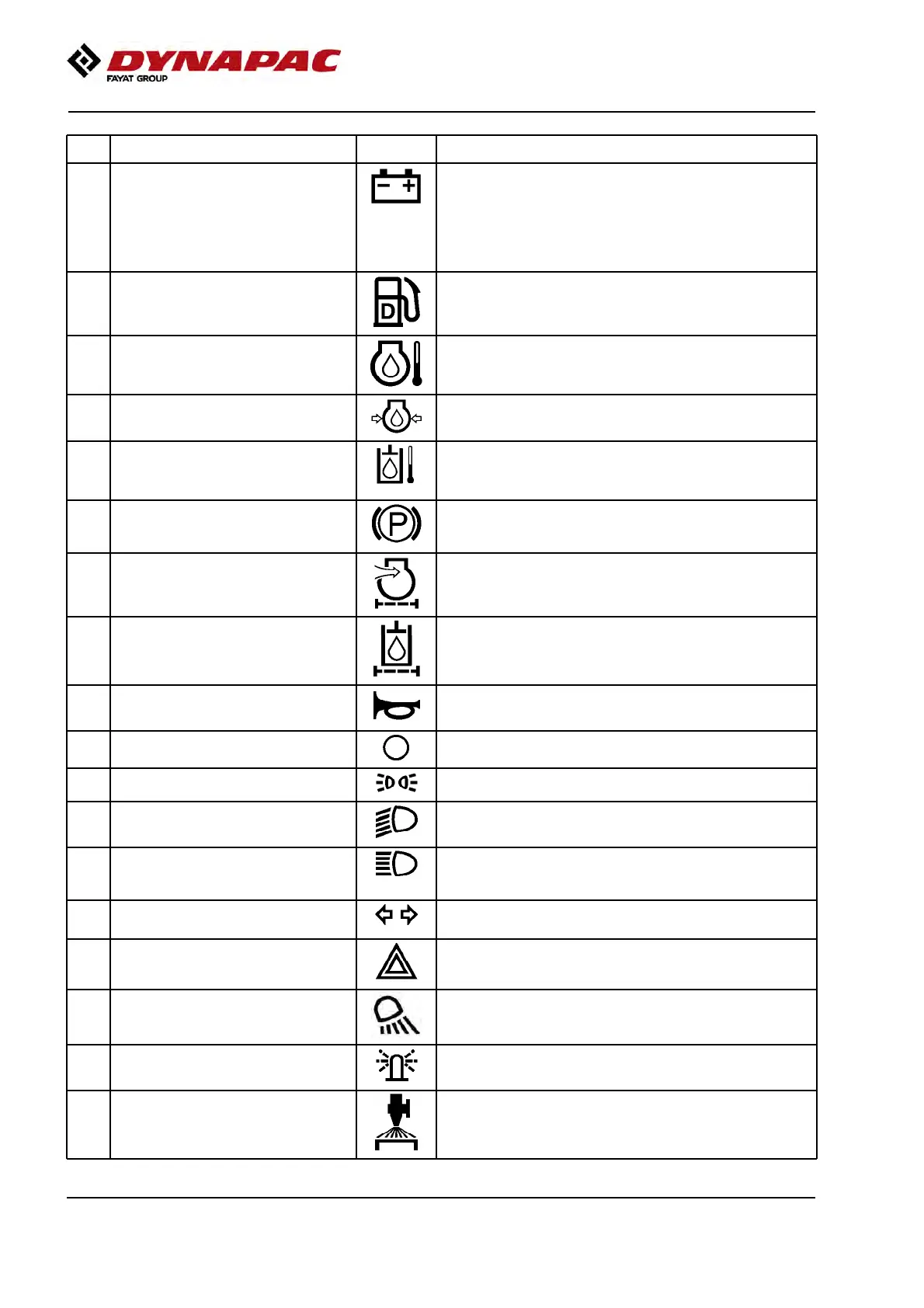

No Designation Symbol FunctionNo Designation Symbol Function
8 Warning lamp, charge (Red) Illuminates at reduced system voltage.
Reduced system voltage can depend on that the
alternator is not charging or on large power output.
The lamp lights up normally while the electrical heater (5)
is activated.
If the lamp comes on without active electric heater at the
same time, stop the diesel engine and locate the fault.
8 Warning lamp, charge (Red) Illuminates at reduced system voltage.
Reduced system voltage can depend on that the
alternator is not charging or on large power output.
The lamp lights up normally while the electrical heater (5)
is activated.
If the lamp comes on without active electric heater at the
same time, stop the diesel engine and locate the fault.
9 Warning lamp, low fuel level (Yellow) If the lamp comes on, there is only a small amount of fuel
left.
Refuel as soon as possible.
9 Warning lamp, low fuel level (Yellow) If the lamp comes on, there is only a small amount of fuel
left.
Refuel as soon as possible.
10 Warning lamp, engine oil
temperature (Red)
If the lamp comes on, the engine is too hot. Stop the
diesel engine immediately and locate the fault.
Refer also to the engine manual.
10 Warning lamp, engine oil
temperature (Red)
If the lamp comes on, the engine is too hot. Stop the
diesel engine immediately and locate the fault.
Refer also to the engine manual.
11 Warning lamp, oil pressure (Red) If the lamp comes on, the engine oil pressure is too low.
Stop the diesel engine immediately and locate the fault.
11 Warning lamp, oil pressure (Red) If the lamp comes on, the engine oil pressure is too low.
Stop the diesel engine immediately and locate the fault.
12 Warning lamp, hydraulic fluid
temperature (Red)
If the lamp comes on, the hydraulic fluid is too hot.
Do not drive the roller. Cool the fluid by allowing the
engine to idle and locate the fault.
12 Warning lamp, hydraulic fluid
temperature (Red)
If the lamp comes on, the hydraulic fluid is too hot.
Do not drive the roller. Cool the fluid by allowing the
engine to idle and locate the fault.
13 Warning lamp, brakes (Red) If the lamp comes on, the brake oil pressure is low or the
parking brake knob is activated and the brakes are
applied.
13 Warning lamp, brakes (Red) If the lamp comes on, the brake oil pressure is low or the
parking brake knob is activated and the brakes are
applied.
14 Warning lamp, air filter (Yellow) If the lamp comes on while the engine is running at full
speed, the air filter must be cleaned or replaced.
14 Warning lamp, air filter (Yellow) If the lamp comes on while the engine is running at full
speed, the air filter must be cleaned or replaced.
15 Warning lamp, hydraulic fluid filter
(Red)
If the lamp comes on while the engine is running at full
speed, the hydraulic filter must be changed.
15 Warning lamp, hydraulic fluid filter
(Red)
If the lamp comes on while the engine is running at full
speed, the hydraulic filter must be changed.
16 Horn Press to sound the horn.16 Horn Press to sound the horn.
17 Driving lights Lights off.17 Driving lights Lights off.
Parking lights onParking lights on
Driving lighting onDriving lighting on
18 Full/Dipped beam In the right position, the switch lights up and the main
beam is on.
In the left position, the dipped beam is on.
18 Full/Dipped beam In the right position, the switch lights up and the main
beam is on.
In the left position, the dipped beam is on.
19 Direction indicator In the left position, the left direction indicator flashes etc.
The flashing function is switched off in the middle position
19 Direction indicator In the left position, the left direction indicator flashes etc.
The flashing function is switched off in the middle position
20 Hazard indicators In the right position, the hazard indicators come on and
the switch lights up.
20 Hazard indicators In the right position, the hazard indicators come on and
the switch lights up.
21 Working lights backwards In the right position, the rear working lights come on and
the switch lights up.
21 Working lights backwards In the right position, the rear working lights come on and
the switch lights up.
22 Rotating beacon In the right position, the rotating beacon comes on and the
switch lights up.
22 Rotating beacon In the right position, the rotating beacon comes on and the
switch lights up.
23 Sprinkler switch, Man/Off/Auto In the left position, the drums are continually watered.
In the middle position, watering is off.
23 Sprinkler switch, Man/Off/Auto In the left position, the drums are continually watered.
In the middle position, watering is off.
