Model 200i and 250i Motorcycle Dynamometer Installation Guide
CHAPTER 3
Power Carriage
3-42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POWER CARRIAGE
The power carriage replaces the standard hand crank with an electrically powered tire
carriage allowing you to easily adjust for various wheel base distances with the press
of a button. This option is ideal for dynos that are recessed where the hand crank is
difficult to access. The power carriage will also reduce the time spent making
adjustments for various length motorcycles.
For more information on using the power carriage, refer to “Using the Power
Carriage” on page 4-6.

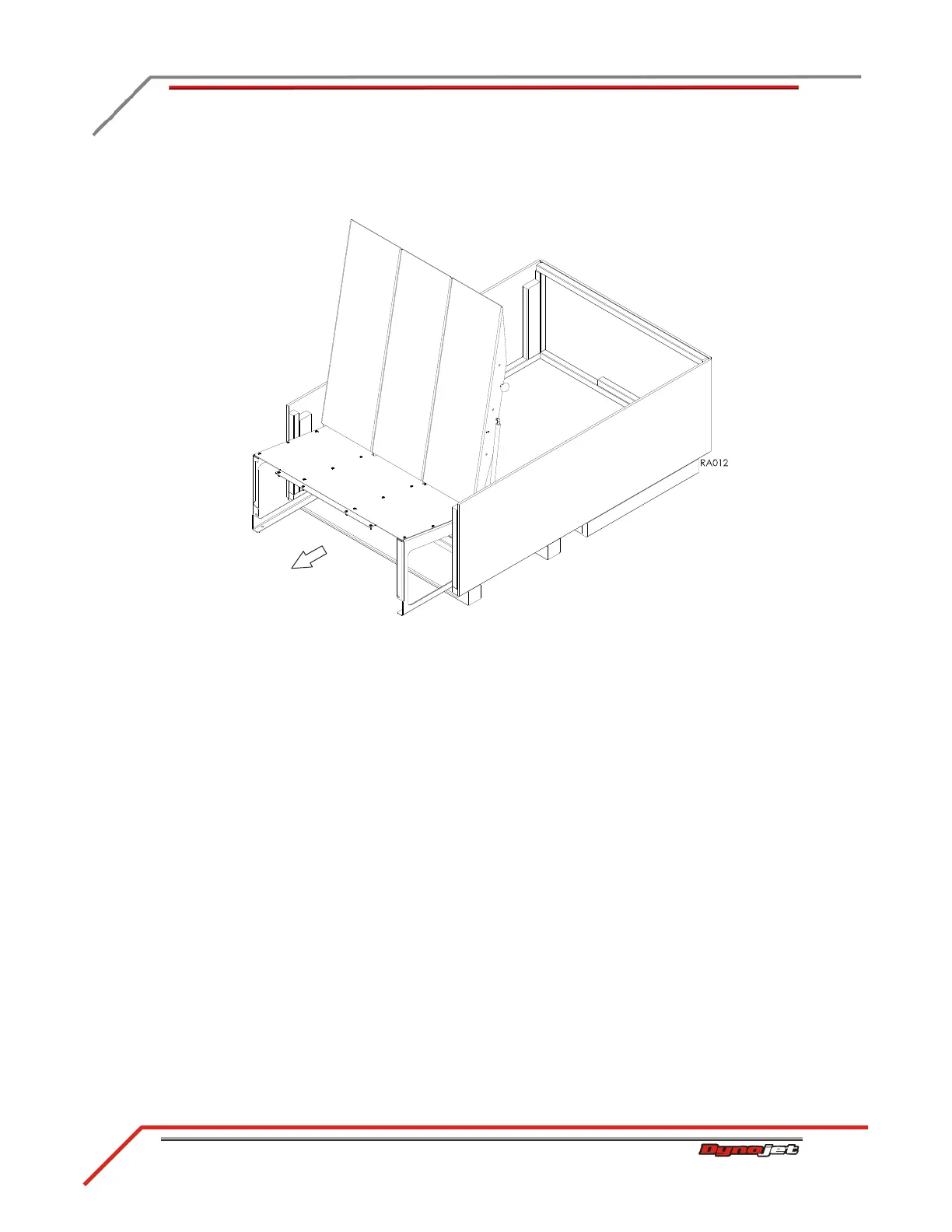

The power carriage motor is preset to be installed with the carriage screwed in
all the way. Do not run the motor prior to installing it on your dyno.
To prevent possible injury, open the CPI door and set the main breaker to the
off position and unplug the dyno. Refer to Figure 3-1 for breaker location.
PARTS LIST
The following table lists all of the parts included in the Power Carriage (P/N 150-300)
Installation kit. Check your kit against the parts listed to make sure you have received
all of the parts. If any part is missing, contact Dynojet Technical Support.
part number description quantity
36561670 Bolt, 1/4-20 x 1”, Hex 2
36561284 Screw, 1/4-20 x 3/4” Button-Head 2
36912100 Washer, 1/4”, Splitlock, STL 2
42910030 Power Cord, 12 AWG, 15A, 25’ 1
43990001 Cover, Outlet Box, Blank 1
8-32 x .5 SCREW Screw, 8-32 x 1/2” 2
DE100-302 Power Carriage Remote Switch for Actuator 1
DE100-303 Power Carriage Bracket 1
DE100-304 Power Carriage Flexible Coupling 5/8 x 1/2” 1
De100-305 Power Carriage, 115V, Actuator Drive Motor 1
DE100-306 Power Carriage Aluminum Cover 1
DE100-311 Weatherproof Single Gang Box (Outlet Box) 1
DE100-313 Nylon Strain Relief 3
DM150-016-004 Flange Bearing 1
