ACCESSORIES
Power Carriage
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
3-45

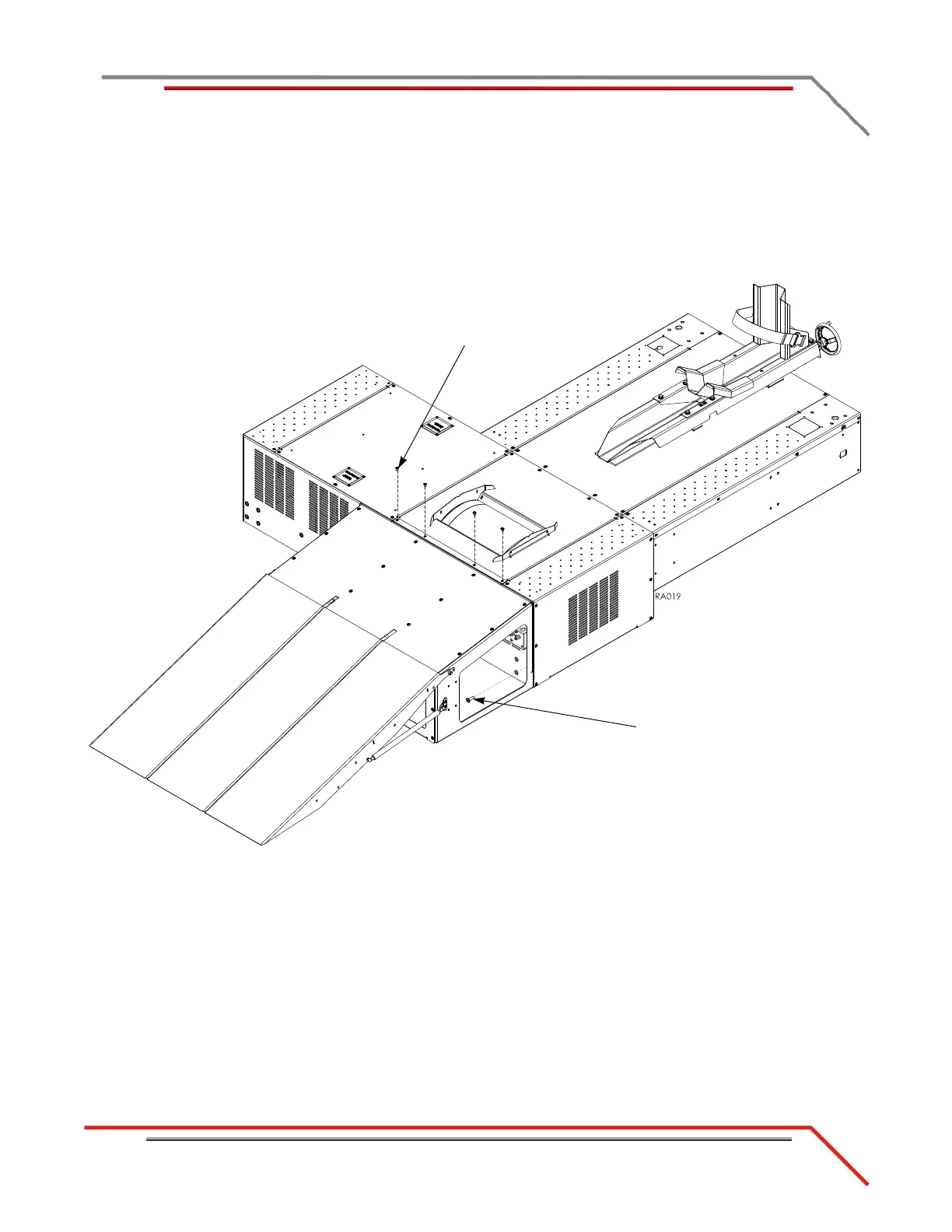

4 Bring the power carriage cable (two-pin connector) from the front of the dyno
over to the motor mount. The routing for this cable was shown on page 2-32.
5 Secure the power carriage cable strain relief to the side of the motor assembly
cover.
6 Insert the plastic coupler spider on the carriage screw half of the coupler.

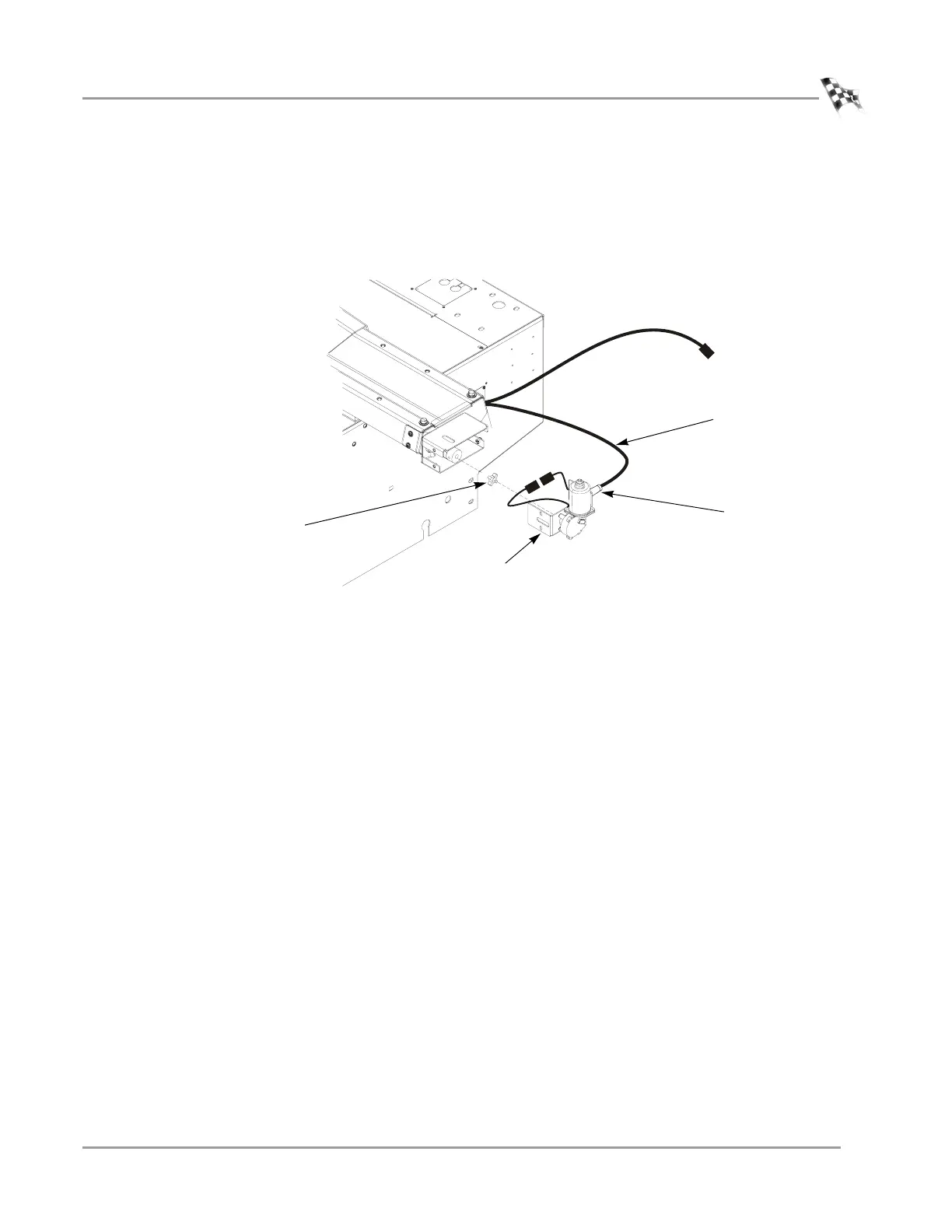

Figure 3-49: Secure the Strain Relief
PC024B
strain relief
power carriage
cable
coupler spider
motor assembly
cover
