3-37
ACCESSORIES
Power Carriage
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
INSTALLING THE POWER CARRIAGE
1 Insert the coupler jaw on the carriage screw making sure the inside of the coupler
jaw is flush with the end of the carriage screw.
2 Secure the coupler jaw with the set screw.
3 Secure the motor mount to the carriage using two 1/4-20 x 5/8-inch bolts and two
1/4-inch lock washers. The motor mount is installed in front of the flange bearing.
If the motor mount is already installed, skip this step and continue.
Note: The flange bearing must be facing so the grease zerk is accessible (facing
down).
Note: Dynojet recommends using a 1/4-inch ratchet drive with an extension and
a 7/16-inch shallow socket to secure the flange bearing bolts.

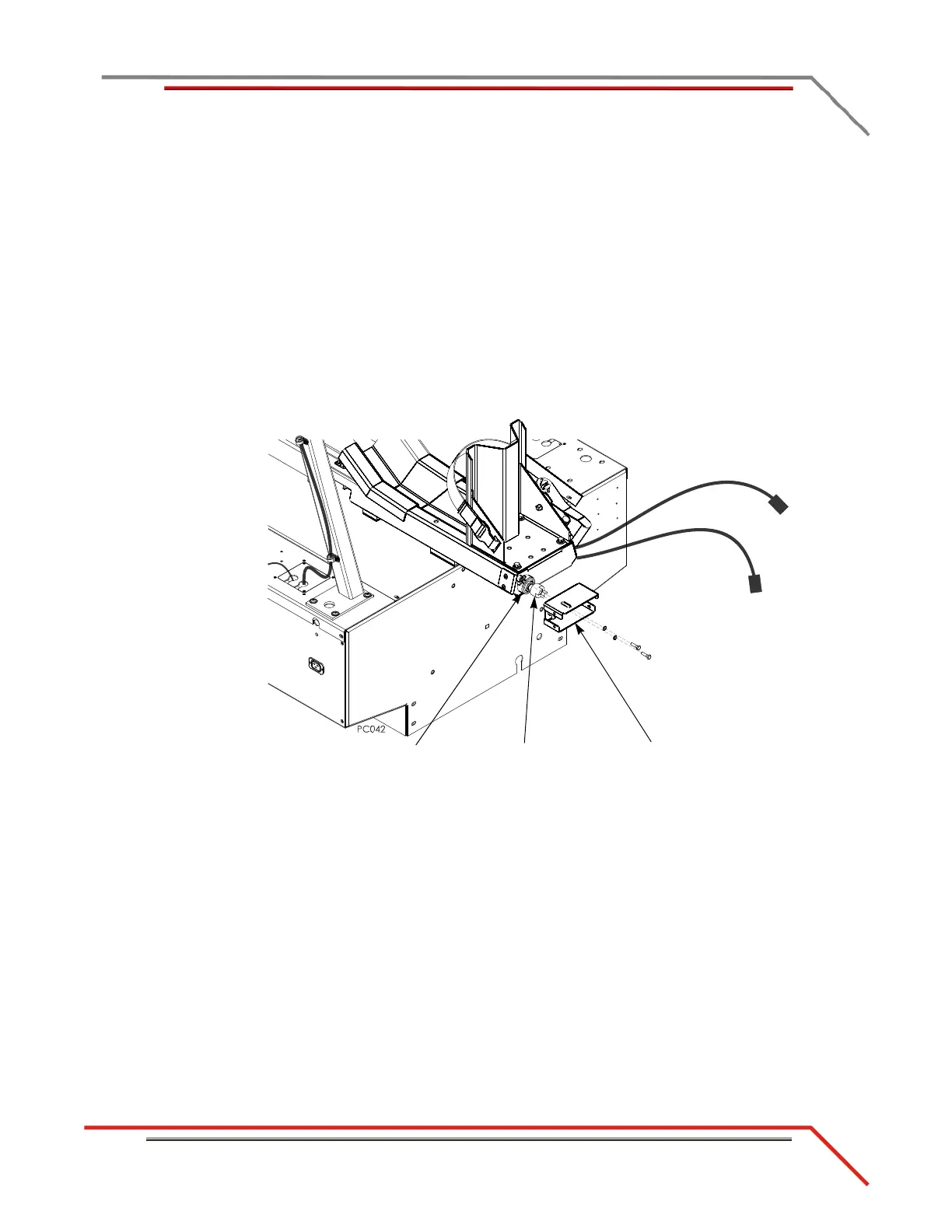

Figure 3-37: Install the Motor Mount
motor mount
flange bearing
coupler jaw
