CHAPTER 2
Dyno Installation
Above Ground Model 250i Motorcycle Dynamometer Installation Guide
2-10
DYNO INSTALLATION
This section will walk you through removing the dyno from the crate and installing the
dyno in your dyno room.
REMOVING THE DYNO FROM THE CRATE
You will need to provide equipment capable of lifting a minimum of 1,133.98 kg
(2,500 lbs.) to lift the dyno off the crate and into position in your dyno room. You will
also need a pair of straps capable of supporting the same weight. Dynojet recommends
using a single loop style strap.
1 Remove the four lag bolts and washers securing the dyno to the crate base using a
9/16-inch socket, open or box end wrench.
2 The pickup card may be taped to the lifting eye. Remove the pickup card and set it
aside.

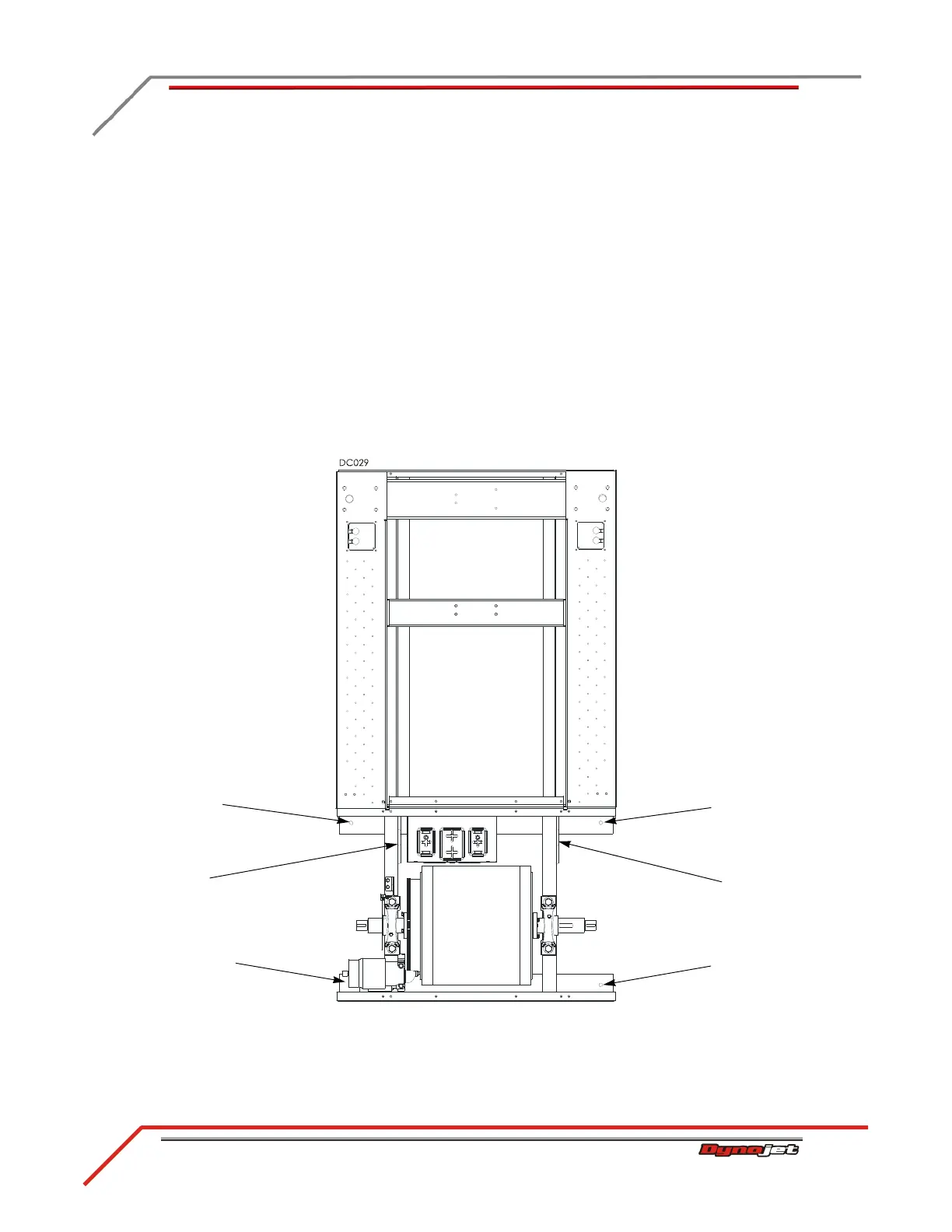

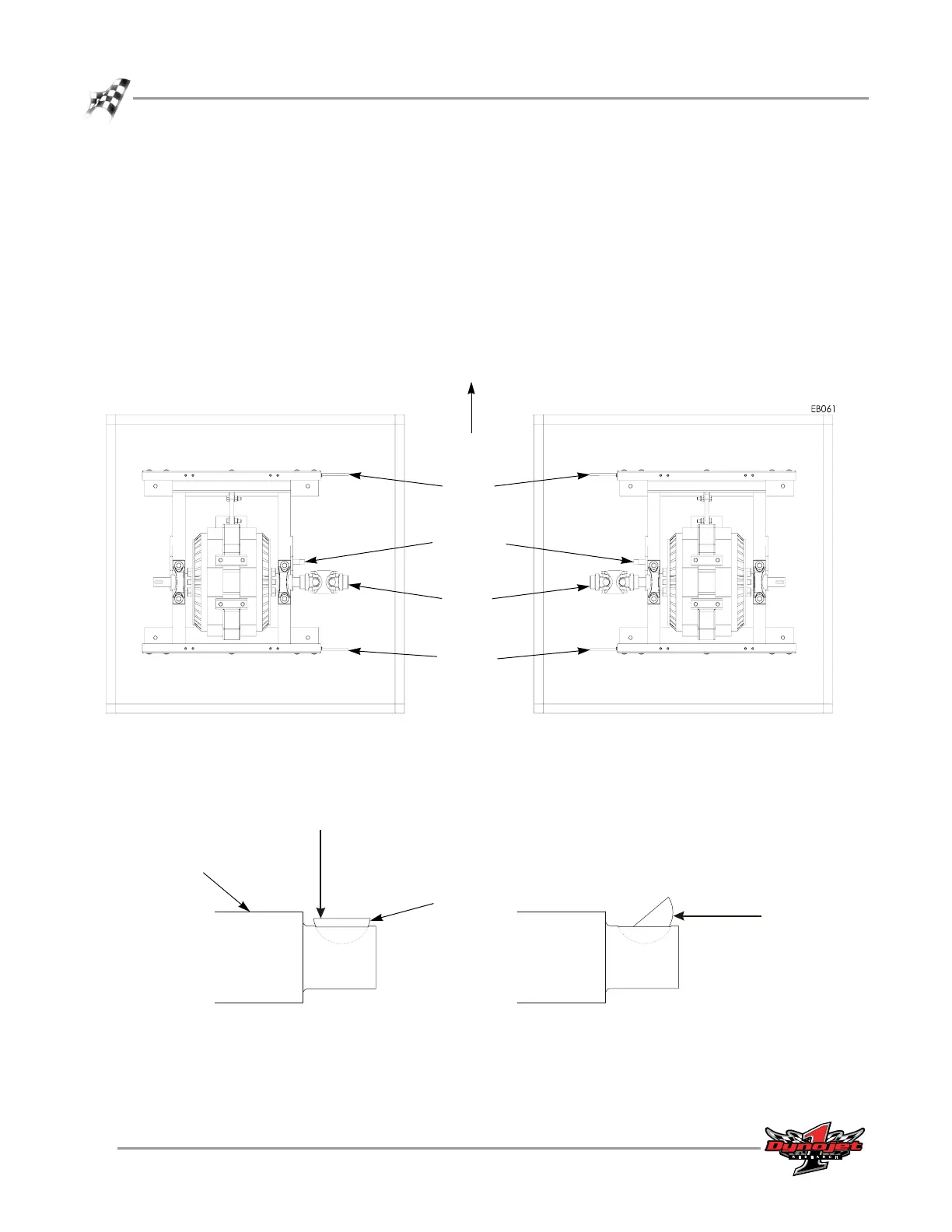

Figure 2-5: Remove the Dyno from the Crate Base
bolt and washer not
visible from this view
lifting eye
bolt and washer
bolt and washer
lifting eye
bolt and washer
To Next Page
