User’s Manual xLogic SuperRelay
A.3 Switching capacity and service life of the relay outputs
Ohmic load

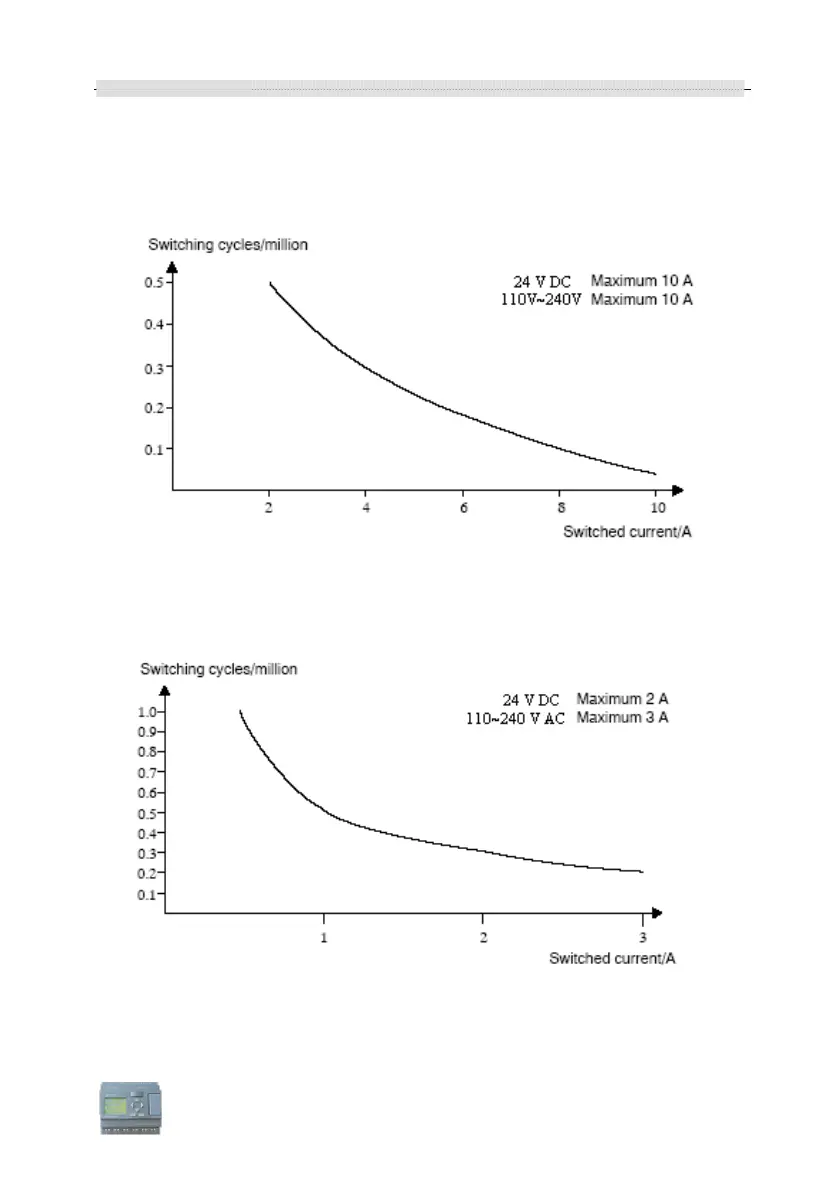

Figure A Switching capacity and service life of the contacts with ohmic load (heating)
Inductive load
Figure B Switching capacity and service life of the contacts with high inductive load
(contactors, solenoid coils, motors).
