xLogic SuperRelay User’s Manual
64
MI = Configured time interval
MN = Time-to-go
OT = Total time expired since the last 1 signal at the Ral input
These values are principally held retentive!
Parameter
The value of ＂ＭＩ＂ can be set and modified in parameter mode. For information
about how to modify, refer to chapter 4.2.2 please.
Description of the function

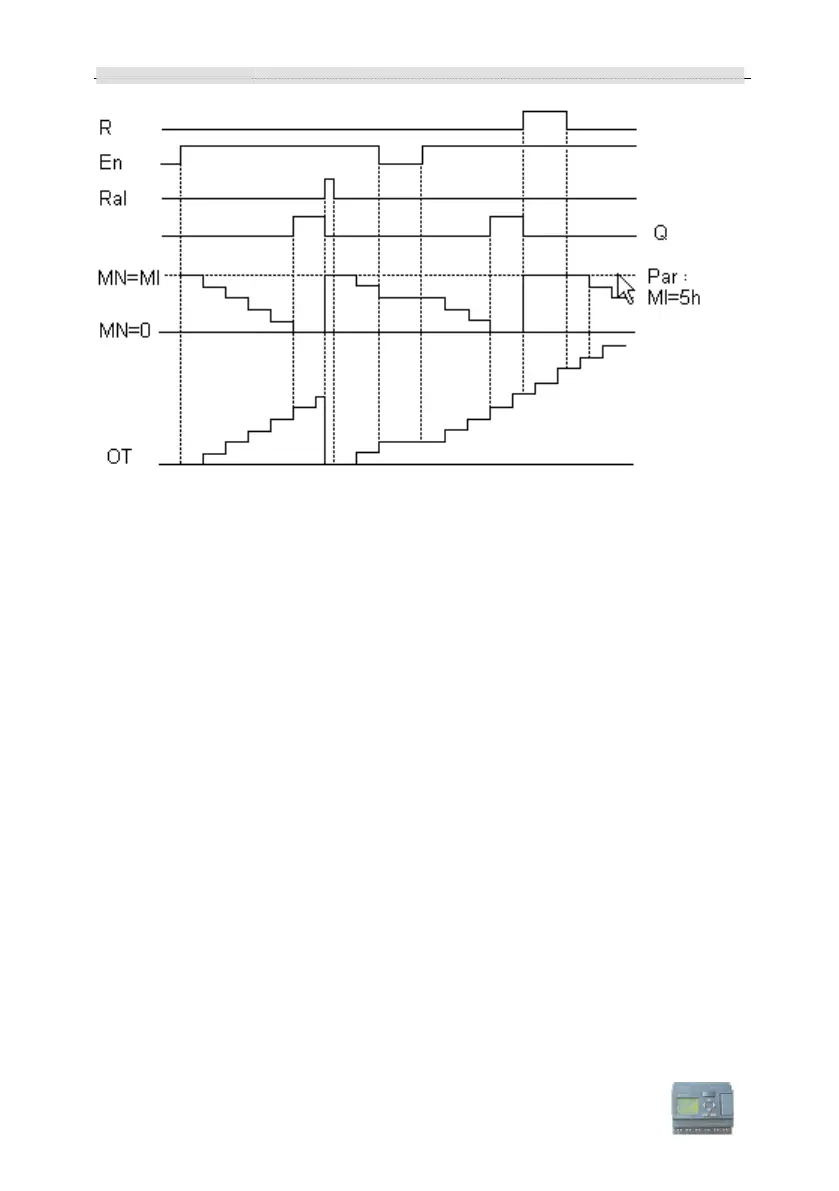

The hours counter monitors input En. As long as the status at this input is 1, xLogic
calculates the time expired and the time-to-go MN. xLogic displays these times when set
to configuration mode. The output is set to 1 when the time-to-go is equal to zero.
You reset output Q and the time-to-go counter to the specified value MI with a signal at
input R. The operation hour counter OT remains unaffected.
You reset output Q and the time-to-go counter to the specified value MI with a signal at
input Ral. The operation hour counter OT is reset to 0.
Depending on your configuration of the Q parameter, the output is either reset with a reset
signal at input R or Ral, or when the reset signal is 1 or the En signal is 0.
