User’s Manual xLogic SuperRelay
79
Connection Description
Input
Input the analog signal to be evaluated at input Ax.
Use the analog inputs AI1...AI8, the analog outputs AQ1 and
AQ2.
0 - 10 V is proportional to 0 - 1000 (internal value).
Parameter
A: Gain
Range of values: ± 10.00
B: Zero offset
Range of values: ± 10,000
On: On threshold
Range of values: ±20,000
Off: Off threshold
Range of values: ± 20,000
p: Number of decimals
Range of values: 0, 1, 2, 3
Output
Q is set or reset depending on the set thresholds.
Parameter p (number of decimals)
Applies only to the display of On, Off and Ax values in a message text.
Does not apply to the comparison of On and Off values! (The compare function ignores
the decimal point.)
The value of
＂On＂,＂Off＂and ＂Dec＂ can be set/modified in parameter mode. For
information about how to set/modify ,refer to chapter 4.2.2 please.(Dec means decimal
point.)

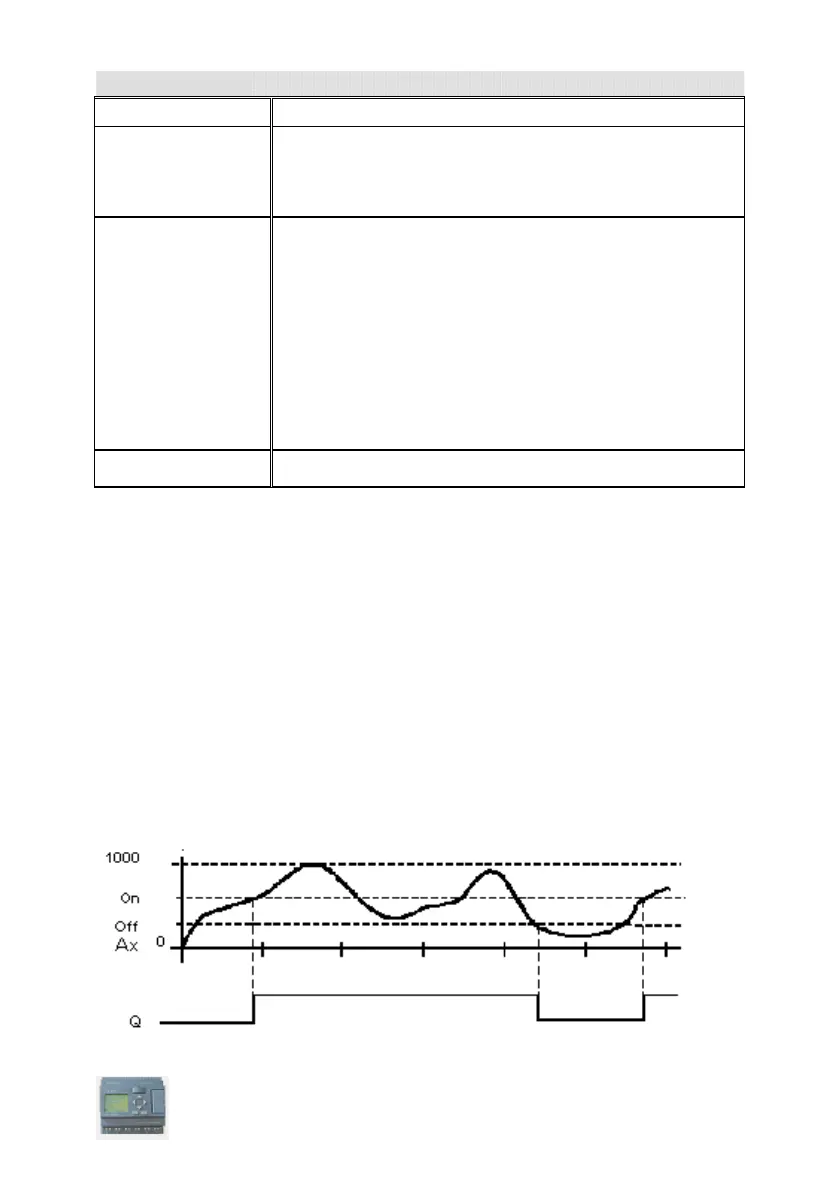

Timing diagram
