xLogic SuperRelay User’s Manual
80

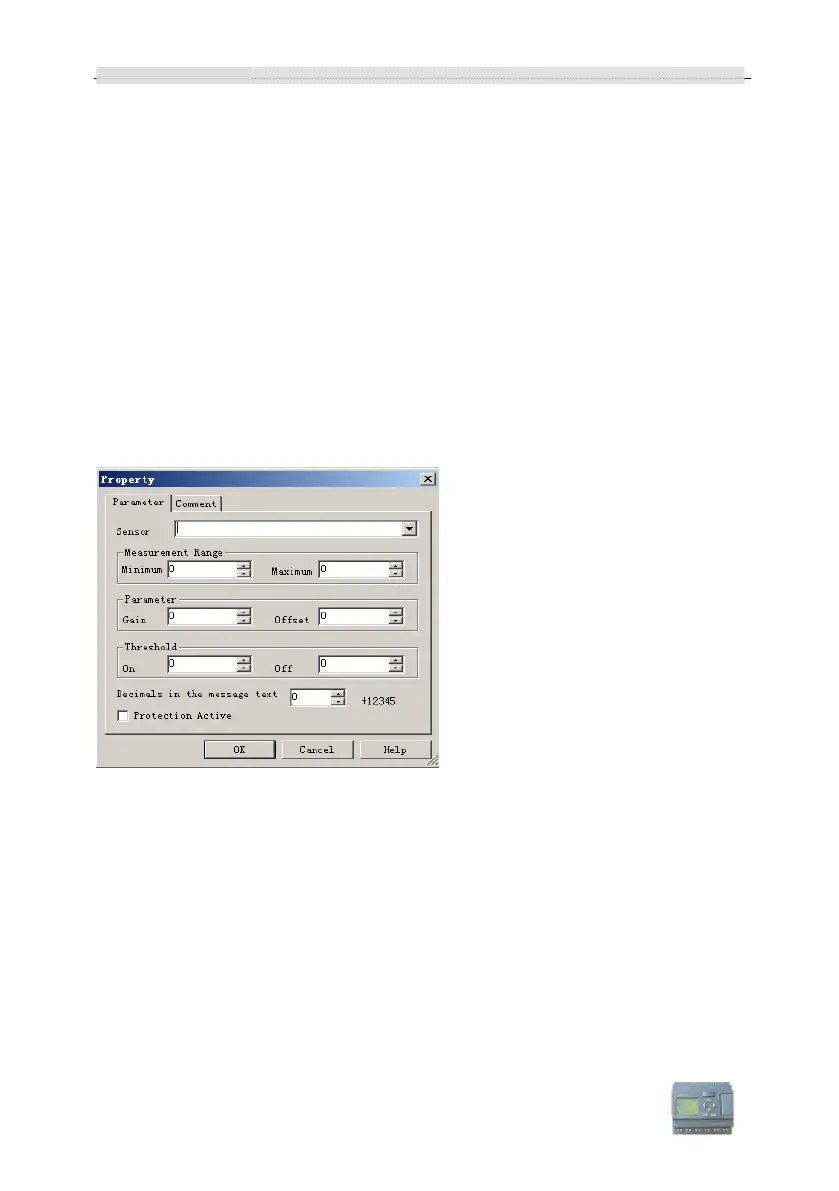

Description of the function
The function reads the value of the signal at the analog input Ax.
This value is multiplied by the value of parameter A (gain). Parameter B (offset) is added
to the product, hence
(Ax
∙Gain) + Offset = Actual value Ax.
Output Q is set or reset depending on the set threshold values. See the following
calculation rule.
Calculation rule
 If threshold (On) ≥ threshold (Off), then:
Q = 1, if the actual value Ax > On
Q = 0, if the actual value Ax
≤Off.
 If threshold (On) < threshold (Off), then Q = 1, if
On
≤ the actual value Ax < Off.
Note
The decimal point setting must be identical in the min. and max. range.
