11 Annex
11.8 DX-NET-SWD3
DC1 variable frequency drive 12/13 MN04020003Z-EN www.eaton.com 193
11.8 DX-NET-SWD3

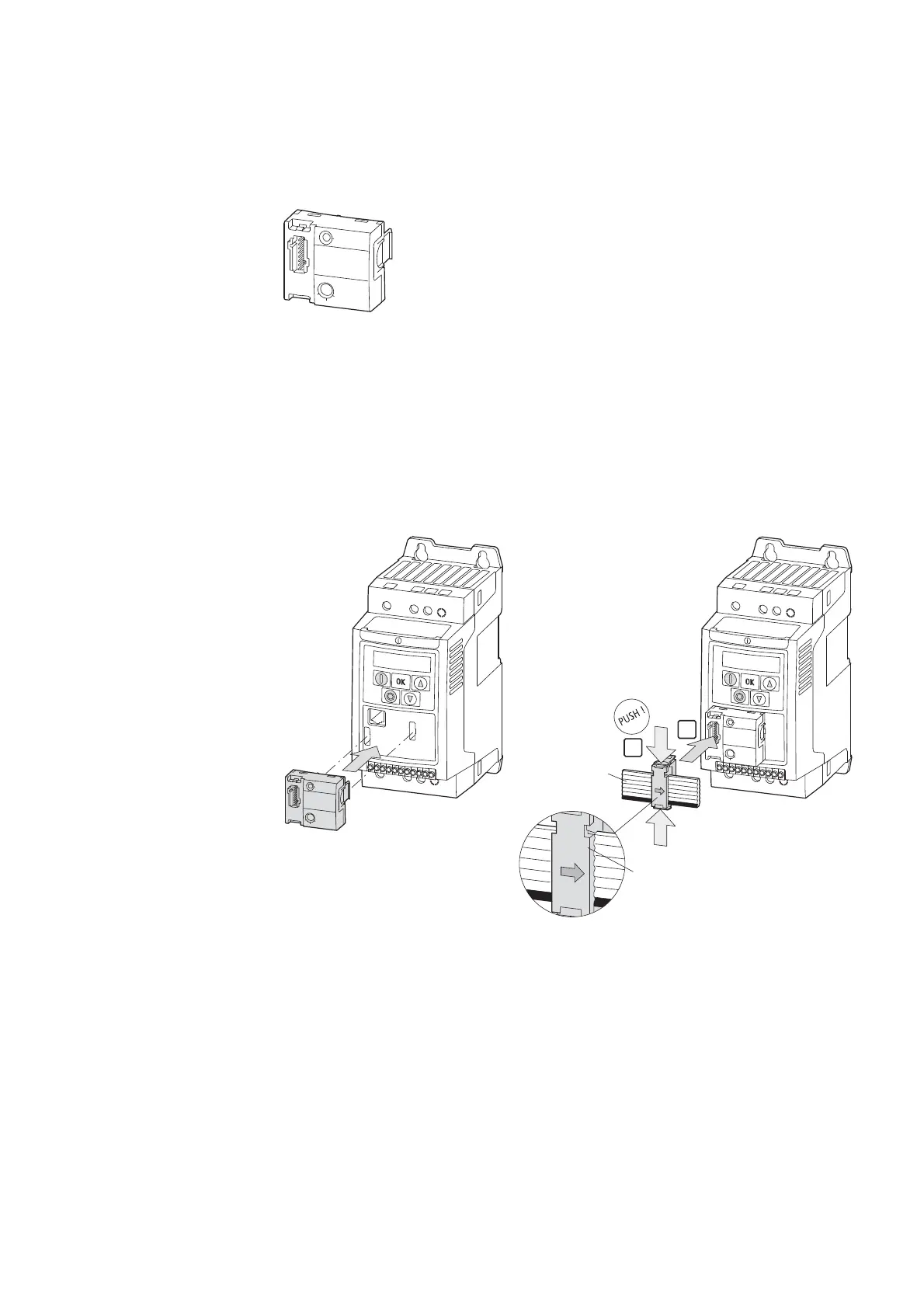

Figure 104: DX-NET-SWD3
The DX-NET-SWD3 expansion module can be used to connect a DC1 variable
frequency drive to SmartWire-DT. Together with a SmartWire-DT gateway,
this makes it possible to communicate directly via, for example,
PROFIBUS DP or PROFINET with the corresponding PROFIdrive profile.
The SmartWire-DT module needs to be plugged into the front of the DC1
variable frequency drive and then connected to an SWD4-…LF8-… ribbon
cable using an SWD4-8F2-5 external device plug.
Figure 105: SmartWire-DT Connection
￫
For detailed instructions on how to install the module, please
refer to instructional leaflet IL040009ZU.
￫
For detailed instructions on how to use the DX-NET-SWD3
module, please refer to manual MN04012009Z-EN.
Re
ady
I
O
A
L1/L
L2/N
L3
U
V
W


1
2
3
4
5
6
7
8
9
10
11
Ready
I
O
A
L1/L
L2/N
L3
U
V
W
8
9
10
1
1


R
eady
I
O
A
SWD4-8SF2-5
+ 15
V
SWD4-8SF2-5
+ 15V
SWD4-8SF2-5
SWD4-100LF8-24
SWD4-3LF8-24-2S
SWD4-5LF8-24-2S
SWD4-10LF8-24-2S
1
2
