11.10.2 DXC-EXT-2RO

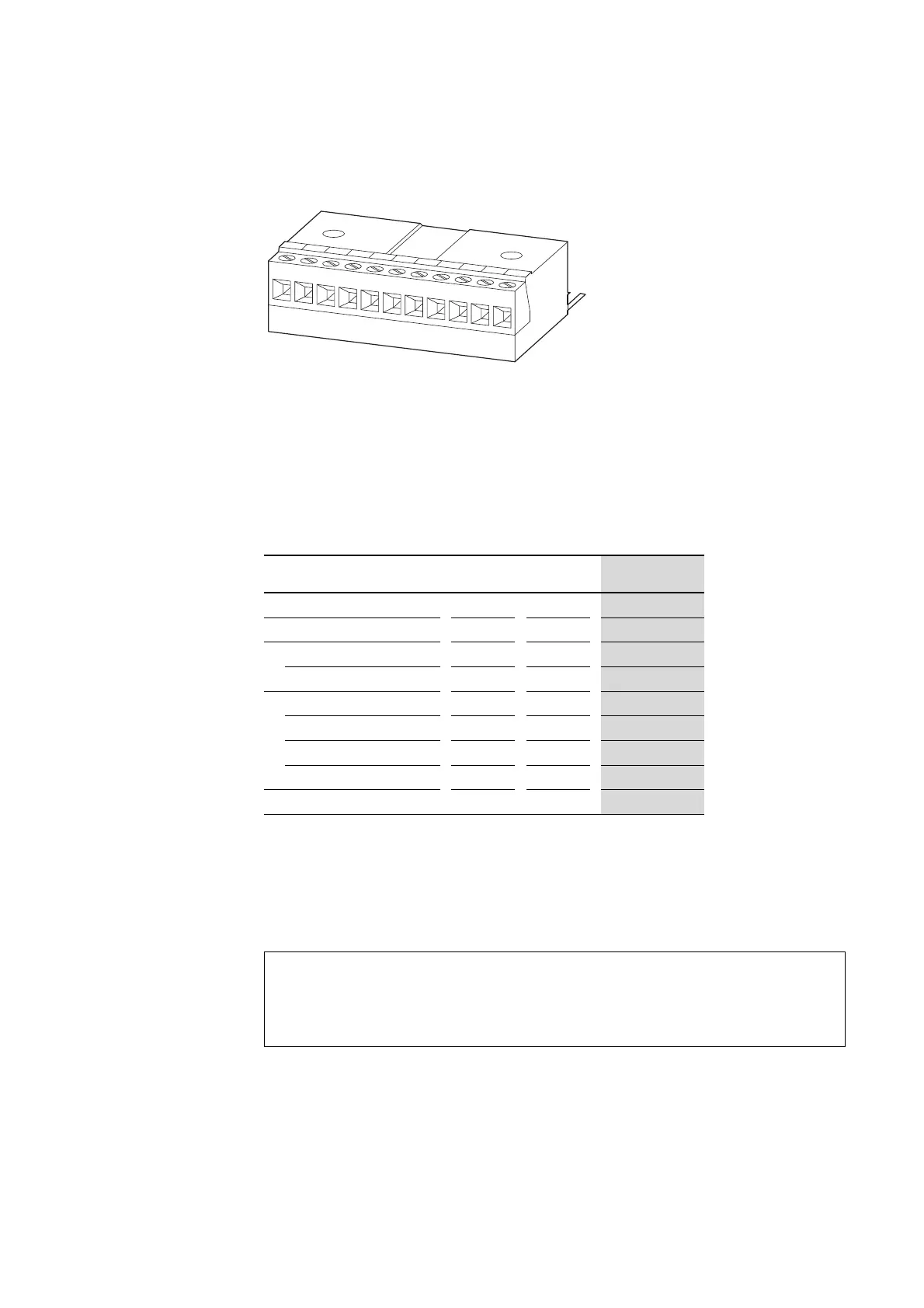

Figure 111: DXC-EXT-2RO
The DXC-EXT-2RO expansion module transforms the DC1 variable frequency
drive's DO1 digital output into a K2 relay output. This provides the variable
frequency drive with two potential-free relay contacts and enables it to
switch mains voltages of up to 250 VAC and 220 VDC.
11.10.2.1 Technical Data
11.10.2.2 mounting
1 2 3 4 5 6 7 8 9 10 11
Technical Data S y m b o l Unit Value
Input voltage, maximum V DC ±50
Relay switching voltage
K1 V 250 AC / 220 DC
K2 V 250 AC / 220 DC
Relay switching current
K1 A ≦ 1
K2 A ≦ 1
Operation temperature °C -10 - +50
Degree of protection IP00
￫
For detailed instructions on how to install the module, please
refer to instructional leaflet IL04012015Z.
NOTICE
Internal relay K1 is looped with the expansion module, meaning
it can conduct a lower current ( 1A).
