11 Annex
11.10 Expansion modules
202 DC1 variable frequency drive 12/13 MN04020003Z-EN www.eaton.com
11.10.3 DXC-EXT-2RO1AO

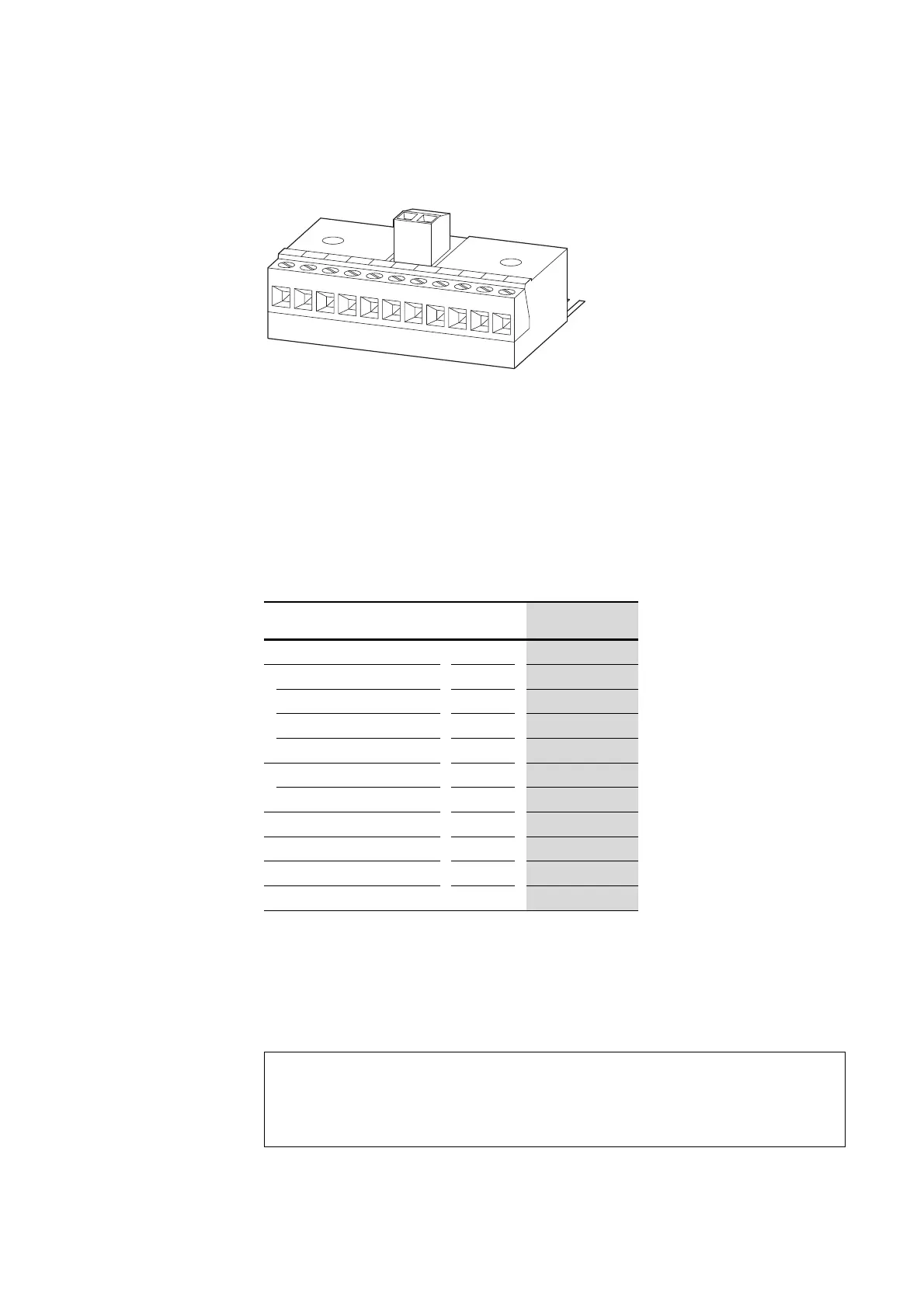

Figure 113: DXC-EXT-2RO1AO
The DXC-EXT-2RO1AO expansion module was developed for HVAC applica-
tions. It transforms the DC1 variable frequency drive's AO analog output into
a K2 relay output. This provides the variable frequency drive with two poten-
tial-free relay contacts and enables it to switch mains voltages of up to
250 VAC and 220 VDC.. In addition, analog output AO will be retained and
will output a voltage (0 - 10 V) that is proportional to the output frequency.
11.10.3.1 Technical Data
11.10.3.2 mounting
Technical Data Unit Value
Input voltage, maximum V DC ±50
Output switching voltage
K1 V 250 AC / 220 DC
K2 V 250 AC / 220 DC
AO V 0 -10 DC
Relay switching current
K1 A ≦ 1
K2 A ≦ 1
AO mA < 20
Operation temperature °C -10 - +50
Degree of protection IP00
￫
For detailed instructions on how to install the module, please
refer to instructional leaflet IL04012014Z.
NOTICE
Internal relay K1 is looped with the expansion module, meaning
it can conduct a lower current ( 1A).
