11 Annex
11.13 EMC cable brackets
DC1 variable frequency drive 12/13 MN04020003Z-EN www.eaton.com 209
11.13 EMC cable brackets
DX-EMC-MNT-… cable brackets can be used to route and secure cables in a
DC1 variable frequency drive's connection area. These cable brackets are
mounted on the variable frequency drive's mains connection and motor sides
and are then connected to the drive's ground connection.
The cable brackets' integrated hole pattern (M4 screw tread) makes it
possible to secure the cables being connected and relieve any strain on them
by using the corresponding gland plates. It also makes it possible to have a
360° EMC connection (PES) in the case of screened cables.
These cable brackets are made of galvanized sheet steel.

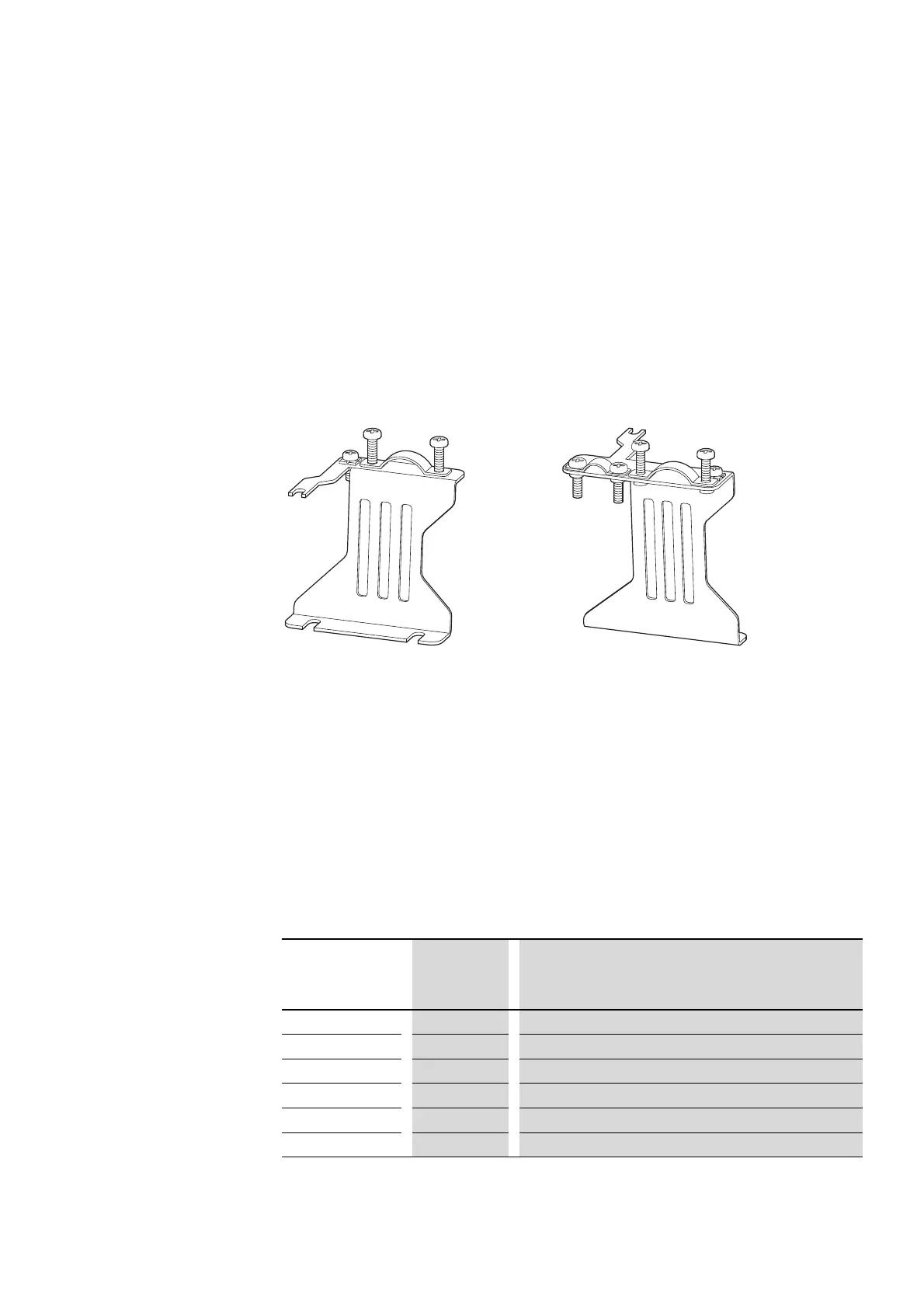

Figure 116: DX-EMC-MNT-1N (left) and DX-EMC-MNT-1M (right) cable brackets
￫
For more information and technical data on DX-EMC-MNT-…
EMC cable brackets, please refer to instructional leaflet
IL040010ZU.
￫
DX-EMC-MNT-… EMC cable brackets are sold as individual
units. There are different brackets for each DC1 variable
frequency drive size (FS1, FS2, and FS3).
The gland plates and their fixing screws are included in the
equipment supplied with the cable brackets.
Cable bracket Size DC1 Gland plates
Quantity / Designation
DX-EMC-MNT-1N FS1 1 x / mains connection
DX-EMC-MNT-1M FS1 2 x / control cables, motor connection
DX-EMC-MNT-2N FS2 1 x / mains connection
DX-EMC-MNT-2M FS2 3 x / control cables, motor connection, external braking resistance
DX-EMC-MNT-3N FS3 1 x / mains connection
DX-EMC-MNT-3M FS3 3 x / control cables, motor connection, external braking resistance
