167
© 2017 Eaton. All rights reserved
2018.12.12
Main Case Main Shaft Disassembly with Low Force Gearing | Service Procedures TRSM0940

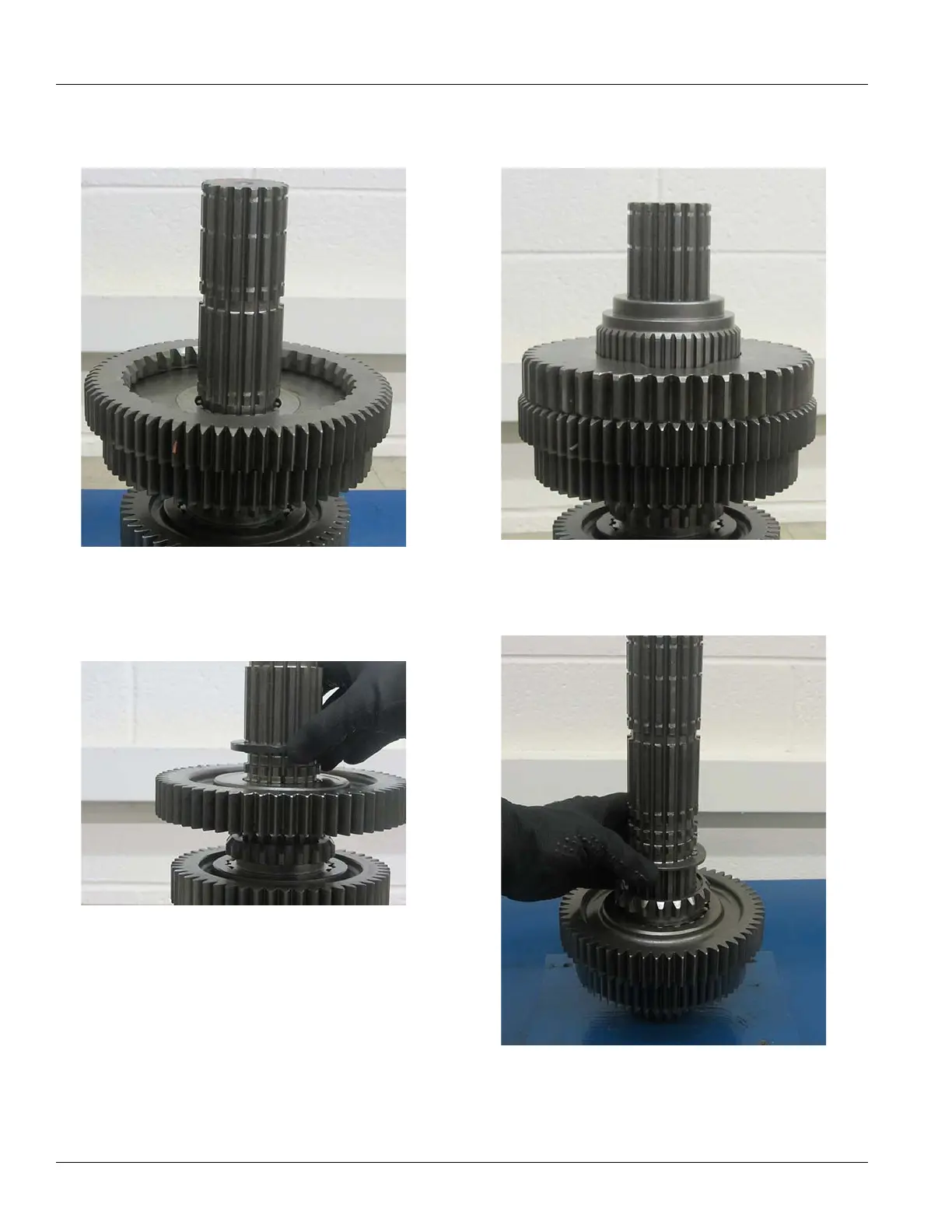

7. Remove the 1st Gear from the Main Shaft.
8. Remove the
2nd stepped no-burn washer from the
Main Shaft.
9. Remove
2nd Gear from the Main Shaft.
10. Remove the 3rd
stepped washer from the Main Shaft.
