59
© 2017 Eaton. All rights reserved
2018.12.12
VCS/VMS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940

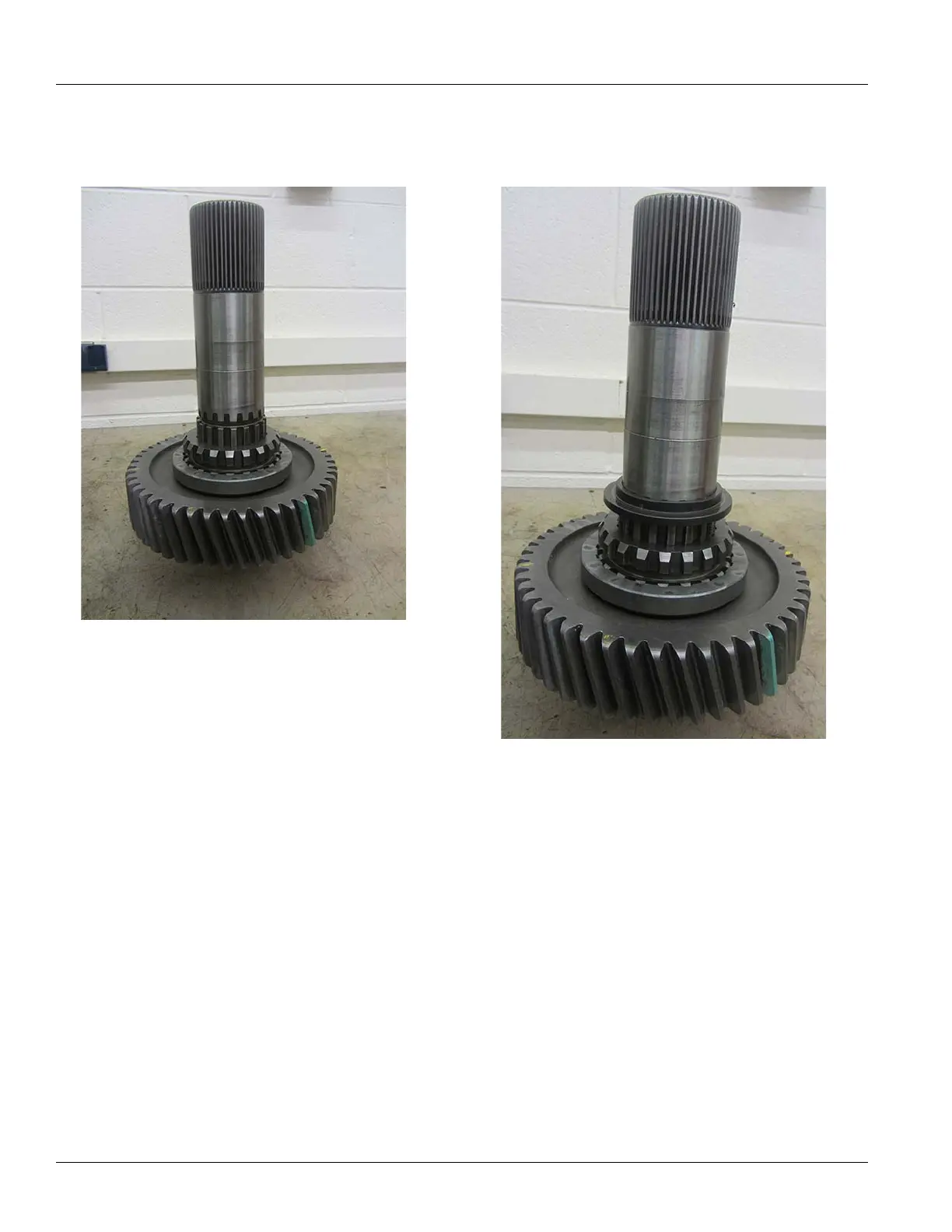

11. Flip the Mainshaft so that it is sitting with the forward
section down.
12. Install the stepped washer over the Auxiliary Mainshaft
with the stepped side up facing the rear of the shaft.
