TRSM0940 Service Procedures | VCS/VMS Auxiliary Section Assembly and Installation

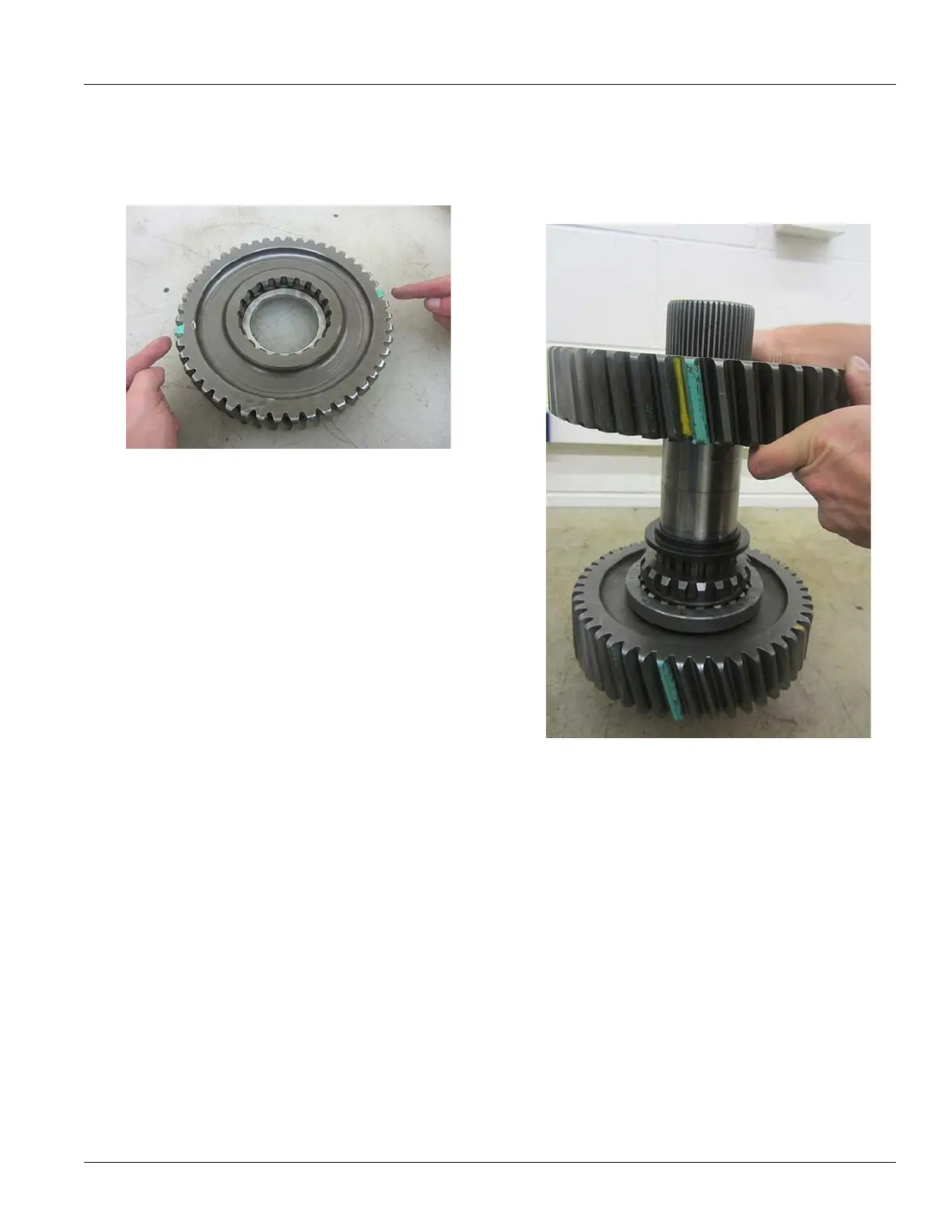

13. Prepare the Deep Reduction Gear for timing. Mark any
tooth on the gear and repeat on the tooth directly
opposite of the first marked.
14. Install the Deep Reduction Gear over the Auxiliary
Mainshaft with the clutching splines facing towards the
front of the shaft.Line up the marked teeth on both the
Low Range Gear and the Deep Reduction Gear.
15. Apply grea
se to Deep Reduction Gear rear thrust sur-
face.
