Eaton UltraShift PLUS Series User Manual

61
© 2017 Eaton. All rights reserved
2018.12.12
VCS/VMS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940

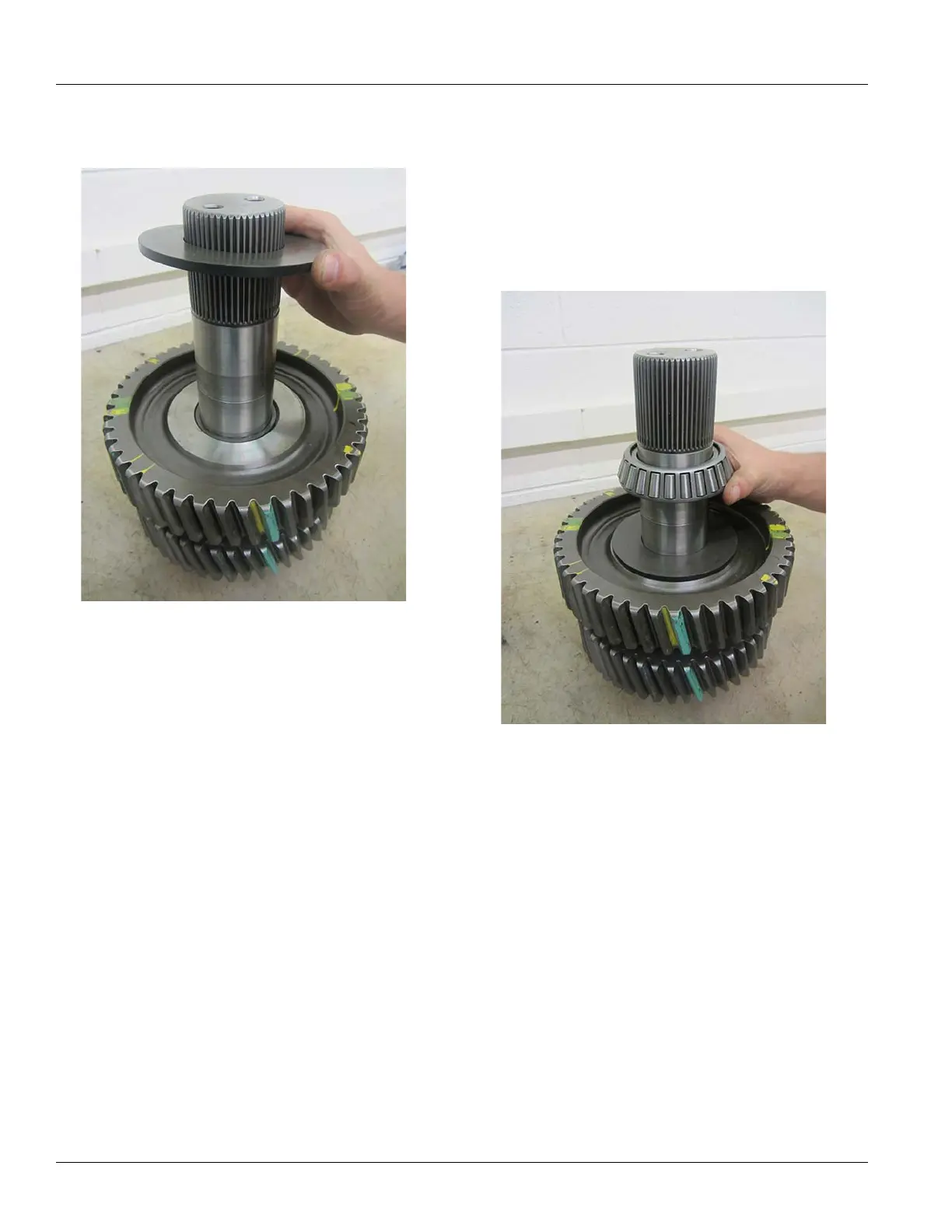

16. Install the large flat washer 17. Select the front tapered Output Bearing (bearing with
longer rollers) With the tapered side up, use heat, or a
small punch to install the Output Shaft Rear Bearing.
Note: A Bearing Driver
can also be used to seat the
bearing, however if using a bearing driver, install the
Bearing inner spacer prior to driving to avoid getting
the driver stuck on the shaft.
