Procedure:
WARNING!
Never apply force or excessive strain as otherwise the coupling may be
damaged! Should there be damage to the coupling (like deformations, cracks,
breaks), the responsible person-in-charge of Ecolab must be informed for an
immediate replacement!

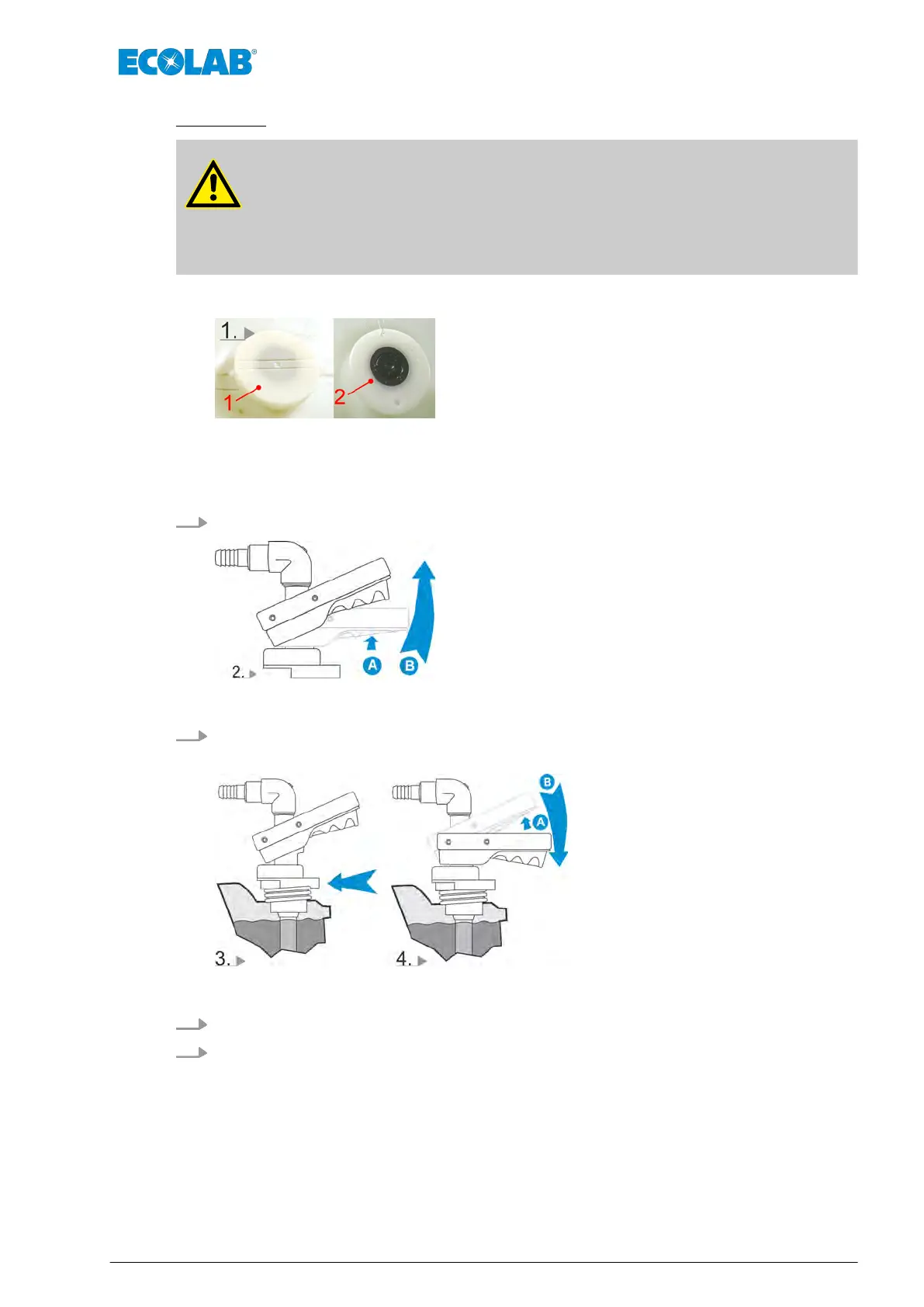

Correct connection of the Connexx coupling to the small outlet opening (white cap).
Fig. 4: Click & Plug connection fitting with white cap
1 Connection fitting with cap
2 Connection fitting without cap
1. Pull the white cap and uncover connection fitting
Fig. 5: Click & Plug coupling
2. Tighten the release lever (Pos. A).
Bring the coupling handle to the upper position (Pos. B).
Fig. 6: Move coupling to the connection fitting
3. Move coupling completely to the outlet fitting.
4. Tighten the release lever (Pos. A),
press handle (Pos. B) downwards
and lock.
