Ecolab Connexx red & blue

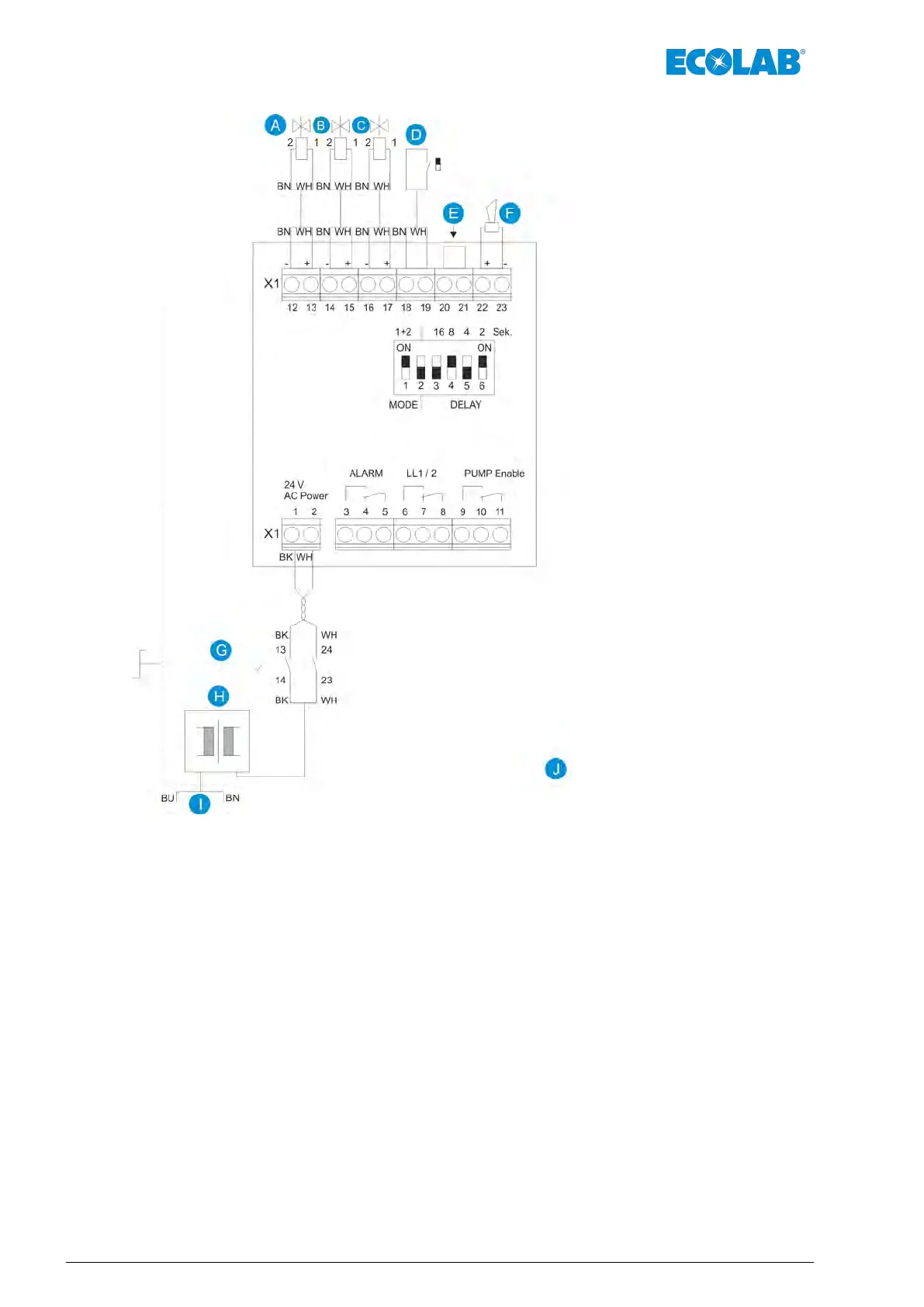

Fig. 12: Board Connexx Switch
A Lifting vessel
B Drum 1
C Drum 2
D Floater switch lifting vessel
E Wire jumper
F Piezo buzzer
G Main switch
H Power transformer, 230V / 2x12V / 15VA
I Voltage supply for ECU (230V / 50 Hz)
J Control housing
