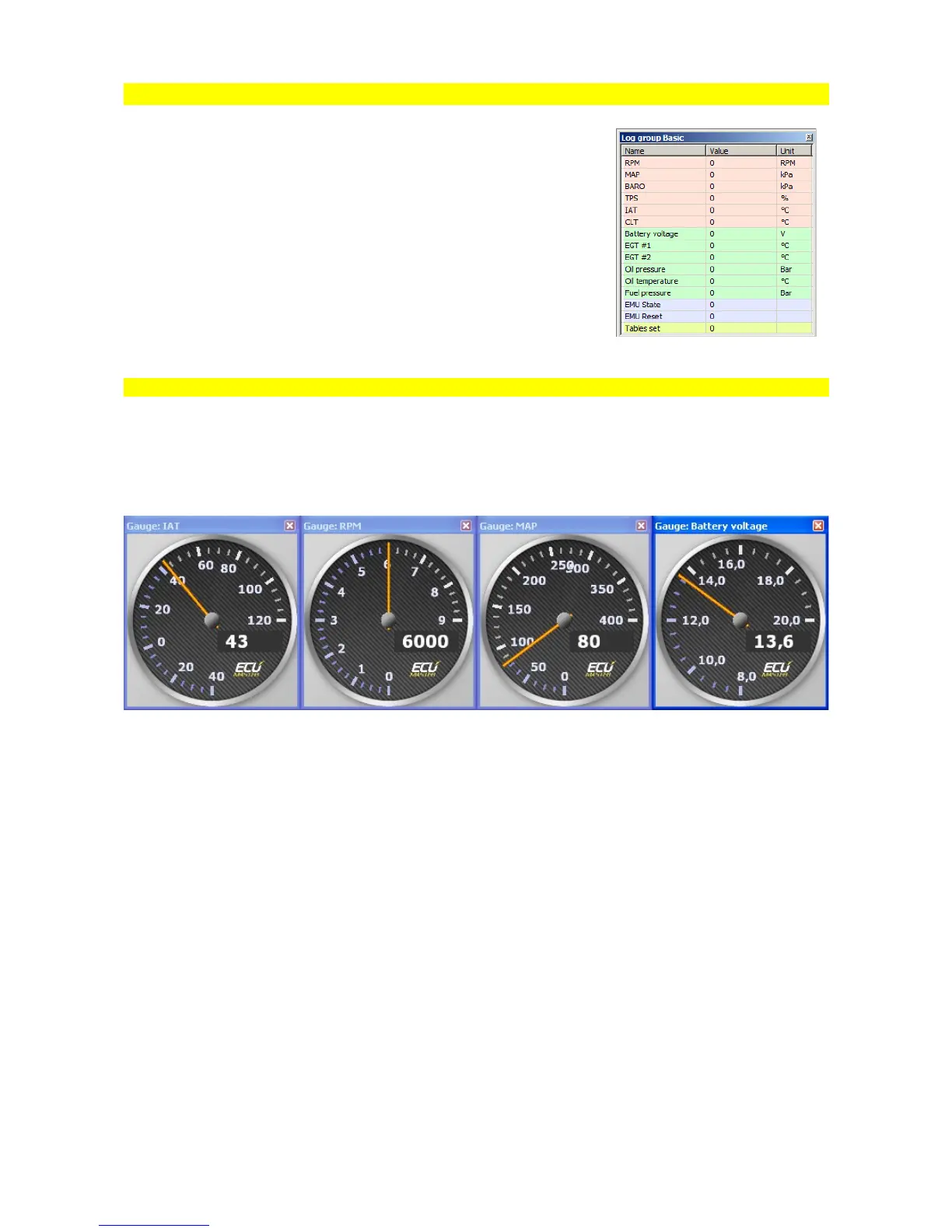

Visual log
Using the parameters’ log we can real-time track the selected
parameters of the engine’s work. Parameters are grouped
according to the function, what facilitates tracking of the device’s
functions (e.g. Idle control)
Gauges
It is an informative tool, used to control particular parameters’ values in the real time. Apart from
the analogue display with a needle on the scale at the 270 degree angle, the indicator also shows
the precise value in the digital form. Examples are presented in the picture below:
Pressing right mouse button on the gauge area display a menu to allow fast resize the gauge to
one of the three predefined sizes.
