EGT sensors
EMU device can use the K type thermocouple to measure the exhaust temperature. Sensor should
be installed as close to head’s exhaust channels as possible.
ATTENTION!
To maintain the accuracy of a thermocouple measurement system, K type
thermocouple compensation cable is required to extend from the thermocouple
sensor to the EMU device.
Page 49
EMU
B1

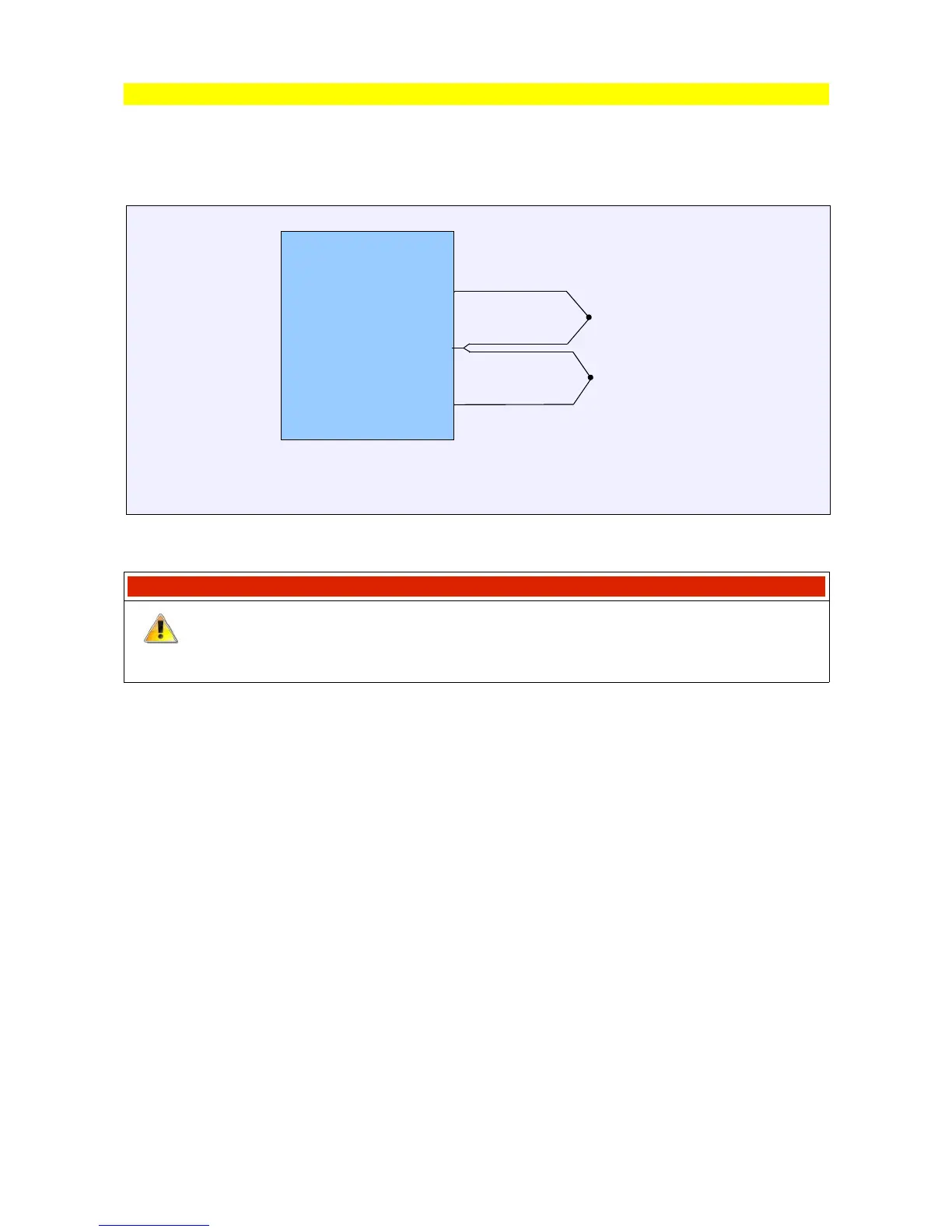

K type thermocouples connection diagram
B18
NiCr
NiCr
NiAl
NiAl
NiCr
NiCr
NiAl
NiAl
B9
