CONFIGURATION OF OUTPUTS PARAMETERS
Fuel pump
Fuel pump options determine which output is used to control the fuel pump relay and its control
parameters.
PARAMETER DESCRIPTION
After start activity
Specifies how long the fuel pump will run after the device is powered
on (time in seconds). This time must be long enough to allow the pump
to build nominal pressure in the fuel line
Output Device output to which the fuel pump relay is connected
Invert output
Invert the output state. Can be used to test the operation of the fuel
pump relay
Relay and 10-20A fuse must be used for proper fuel pump wiring.
Page 87
EMU
G21
G17
G24
B24

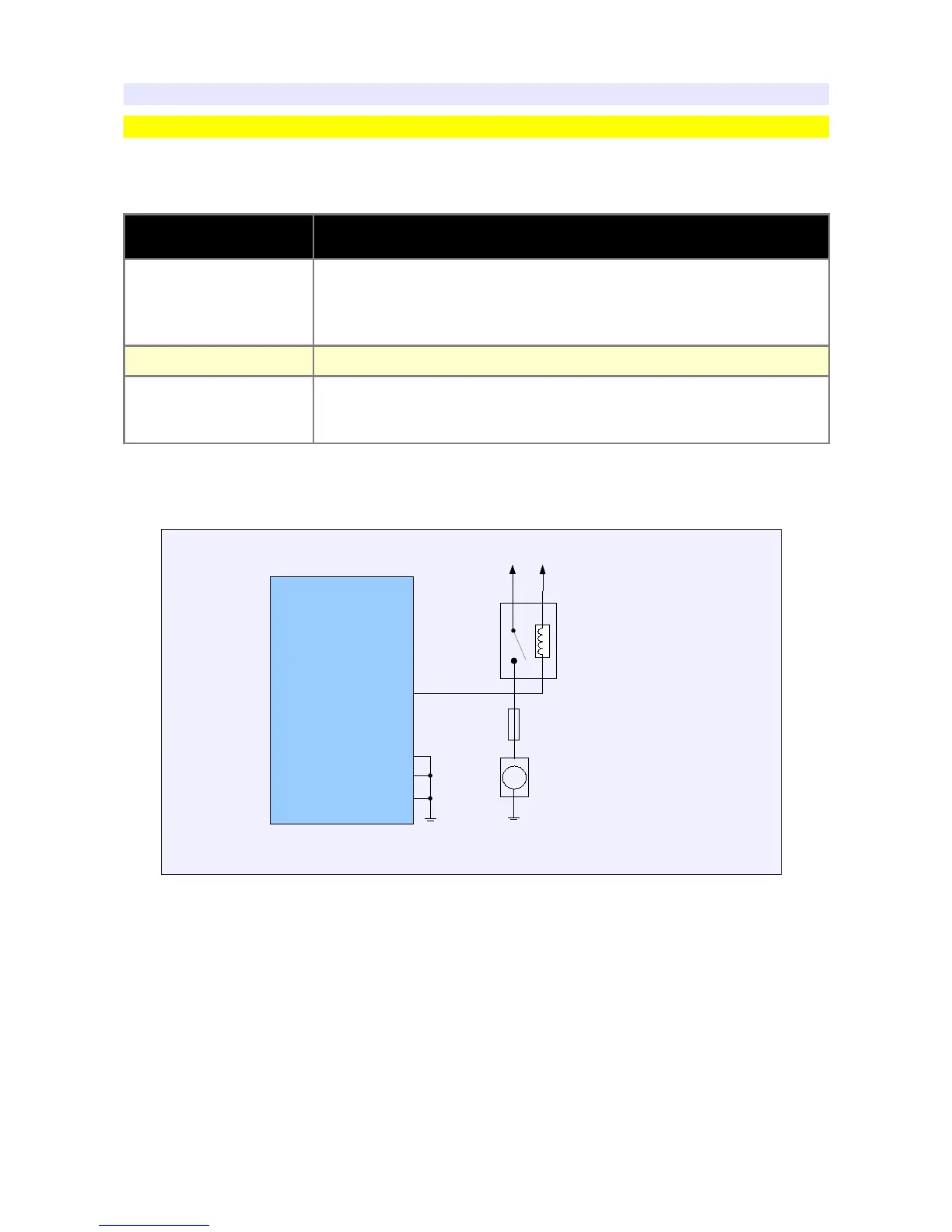

Example of the fuel pump relay wiring diagram
15A
+12V
30 86
87 85
+12V
M
