In case of active coils or using ignition modules, there is a chance to connect two coils or module
inputs to one ignition output in order to do wasted spark ignition.
Ignition event trims
Ignition event trims table defines ignition angle correction for each ignition event. Using this table
you can adjust ignition timing for each cylinder on an individual basis.
Soft rev limiter
The ignition soft rev limiter offers a smoother method for limiting engine RPM when compared to
the fuel cut RPM limiter. In order to function properly, the soft cut ignition limiter RPM must be set
below the fuel cut based limiter (Fuelling / Fuel cut).
PARAMETER DESCRIPTION
Enable soft rev limiter Activates soft rev limiter
Rev limit Rev limier RPM
Control range
The range below rev limit RPM where the spark cut occurs. In this
range the value of Spark cut percent and Ignition retard are
interpolated (see the picture below the table)
Page 79
EMU
G8
G16
G9
B16
G17
G24
B24
+12V

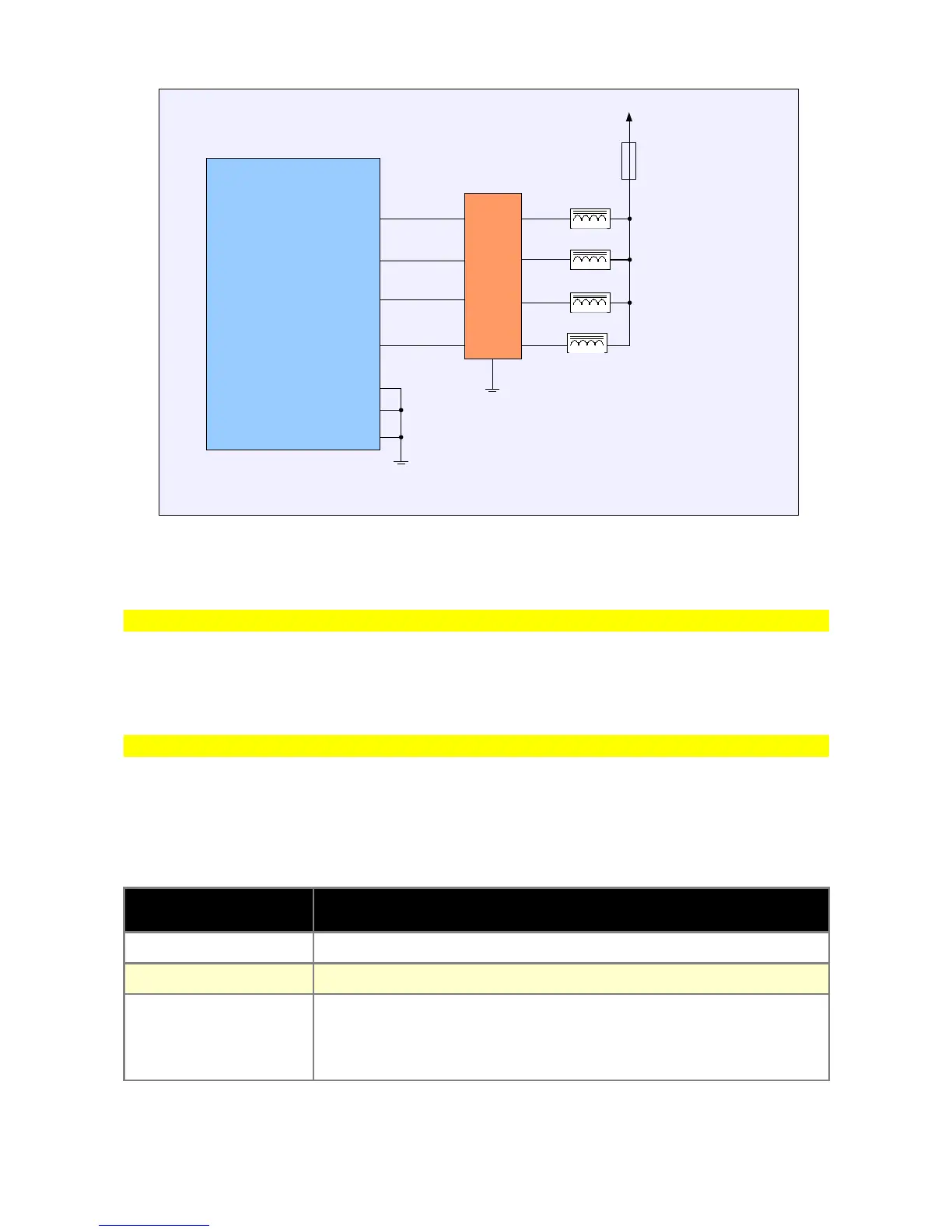

Sample of connection of 4 passive coils using ignition module
15A
Moduł
Zapłonowy
