Analog inputs
EMU device has two kinds of analog inputs. The first type is fixed for given sensors like IAT, CLT
and TPS. The second type is universal one. It could be used to connect any sensor in the voltage
range from 0-5v or as switch inputs for activating different strategies like ALS, Launch control, etc.
The CLT and IAT inputs have built in 2.2Kohm pull-ups to +5V.
User switches
To activate some functions like Launch control, table switch, Flat Shift or other, it is required to
connect a switch. There are several options to do it.

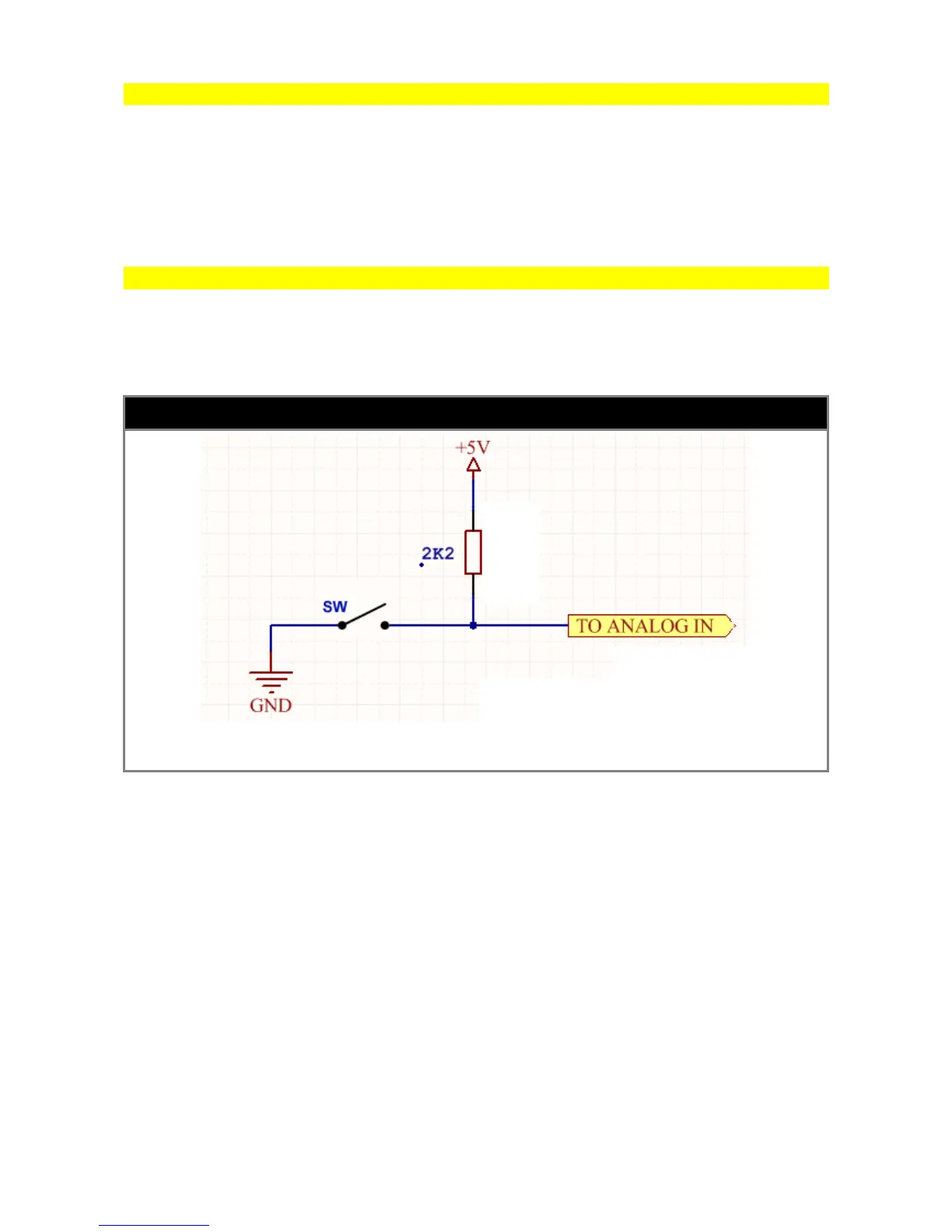

ANALOG #1 - ANALOG #4 INVERTED
In the case of Analog input #x inverted option, the activation is performed if the voltage on analog
input is lower than 1V
Page 33
