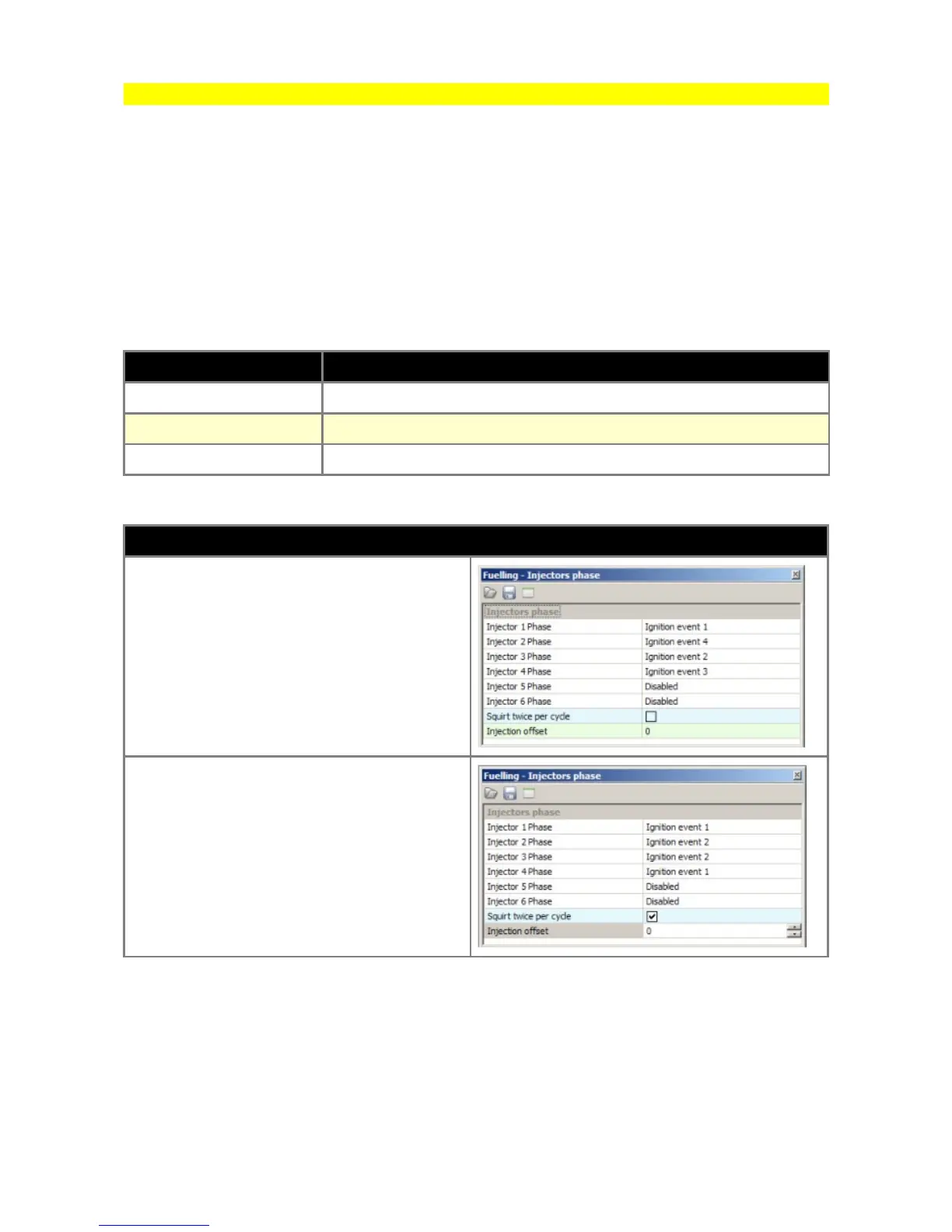

Injectors phase
Injectors phase configuration window connects fuel injection start with Ignition Events. Injections
starts N degrees before Top Dead Centre of cylinder connected with Ignition Event, to which the
injector is assigned. N is a base angle that is equal to Trigger angle value from Primary trigger
configuration.
Number of Ignition Events equals number of cylinders in the engine. Every injector opens only one
time in engine cycle (720 degrees) except when Squirt twice per cycle option is activated, then
every injector opens twice per cycle. This option is used for bank fire injection.
PARAMETER DESCRIPTION
Injector X Phase Ignition Event to which injector X opening is associated.
Squirt twice per cycle Activates two fuel injections during full engine cycle
Injection offset Offset of injection angle from base angle described above
Example configurations
Full sequential injection for 1-3-4-2 ignition
sequence
Bank fire injection for wasted spark ignition
