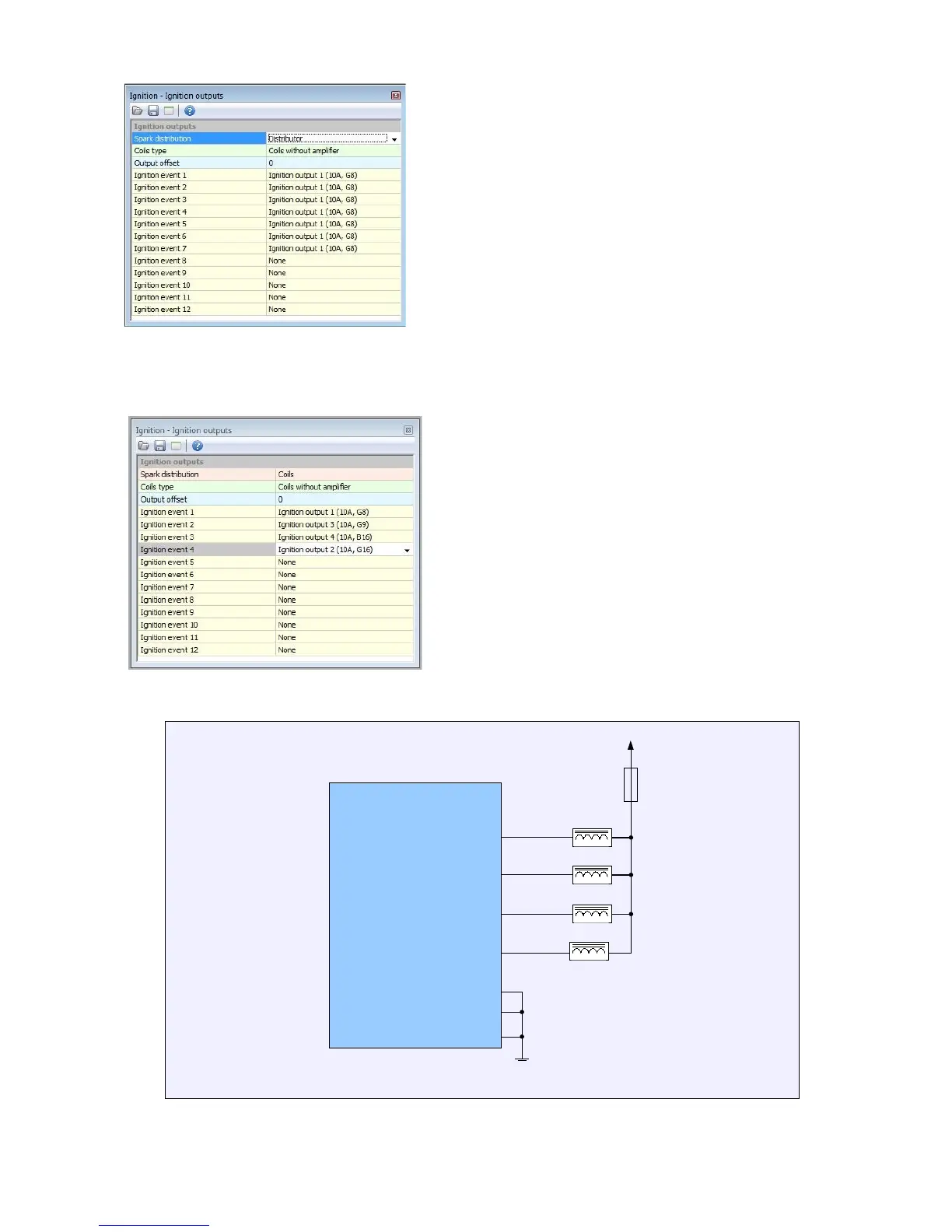

Ignition outputs configuration for 8 cylinders engine, one
ignition coil with distributor
It is common that settings for primary and secondary triggers define the correct base ignition angle,
but the spark at cylinder 1 is not executed during ignition event #1. In this case it is possible to use
output offset parameter to "move" the first ignition event in the ignition outputs table.
In the configuration on the left the ignition order is 1-3-
4-2, for output offset equal to 1 the ignition order will be
3-4-2-1, for output offset equal to 2 the firing order will
be 4-2-1-3, and so on.
Example of connecting the ignition coils to the EMU device
Page 78
EMU
G8
G16
G9
B16
G17
G24
B24
+12V
Connection of 4 passive ignition coils
15A
