Edgetech 4200 User Manual

2-1

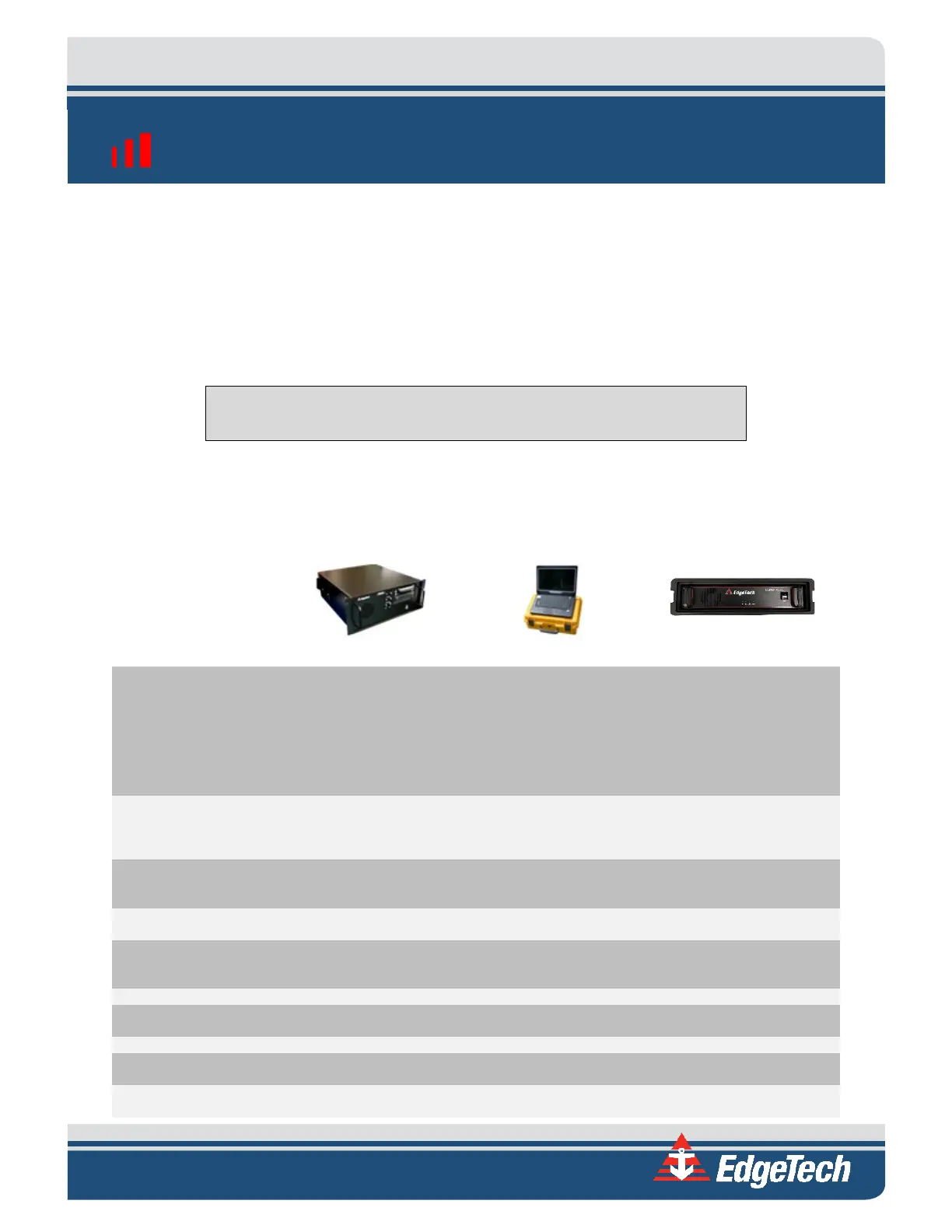

SECTION 2: SPECIFICATIONS
The specifications and technical descriptions for the main system components of the EdgeTech 4200
Series High Definition Dual-frequency Side Scan Sonar System are as follows:
• 4200 Series Topside Processors
• 4200 Series Tow Vehicles
• Cables
• Depressor Wing (optionally supplied)
NOTE: All specifications are subject to change without notice.
2.1 4200 Series Topside Processors
General specifications for the 4200 Series Topside Processors are given in Table 2-1.
4200 RACK MOUNT
4200-P PORTABLE
701-DL DIGITAL LINK
Size:
17.8 cm (7 in.) high
43.2 cm (17 in.) wide
45.7 cm (19 in.) deep
18.5 cm (7.3 in.) high
48.8 cm (19.2 in.) wide
38.6 cm (15.2 in.) deep
With 2U-SKB Case:
15.75 cm (6.20 in.) high
56.90 cm (22.40 in) wide.
60.96 cm (24 in.) wide
Without Case:
8.3 cm (3.25 in.) high
48.3 cm (19 in.) wide
43.2 cm (17 in.) deep
Weight: 19.5 kg (43 lb.)
13 kg (30 lb.)
(w/laptop computer)
10 kg (22 lb.)
(w/o laptop computer)
With 2u-SKB Case:
10.80 kg (23.8 lb.)
Without Case:
6.4 kg (14 lb.)
Case construction:
Aluminum 19-inch rack
mount
Waterproof, high impact
ABS plastic with a purge
valve
Aluminum 19-inch rack
mount
Shipping container
type:
Sealed high impact
polyurethane case
Carton Carton
Shipping container
size:
71.1 cm (28 in.) high
66.0 cm (26 in.) wide
50.8 cm (20 in.) deep
63.5 cm (25 in.) high
53.3 cm (21 in.) wide
53.3 cm (21 in.) deep
61 cm (24 in) high
61 cm (24 in wide
30.5 cm (12 in) deep
Shipping weight:
47.7 kg (105 lb.)
21.8 kg (48 lb.)
11.3 Kg (25 lb.)
Operating
temperature:
0–45°C (32–113°F) 0–45°C (32–113°F) 0–45°C (32–113°F
Storage temperature:
-10–60°C (14–140°F)
-10–60°C (14–140°F)
-10–60°C (14–140°F)
Operating relative
humidity:
0–95% (non-condensing) 0–90% (non-condensing) 0–80% (non-condensing)
Non-Operating storage
relative humidity:
5-90%
