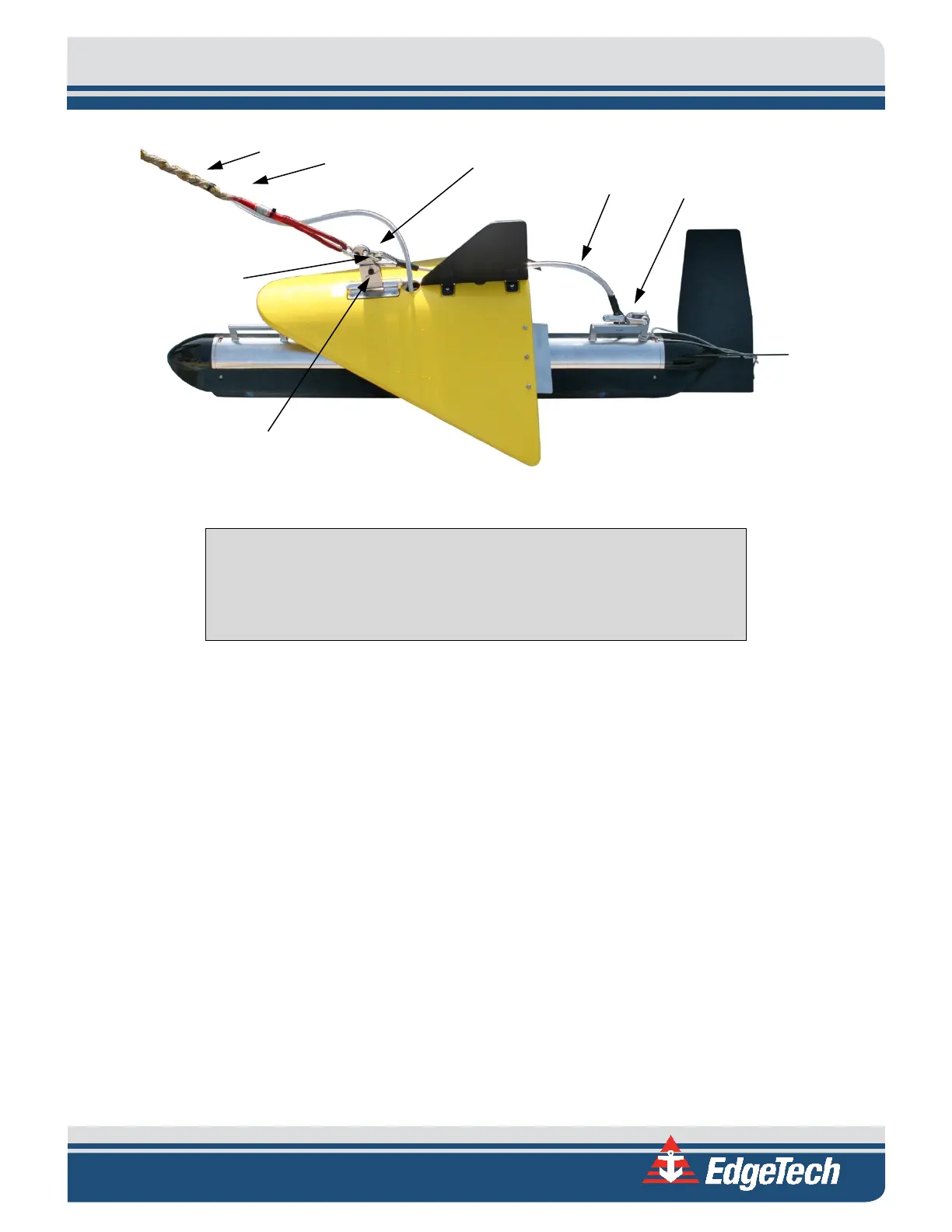

Figure 3-8: Tow Vehicle with Depressor Wing and Safety Grip Attached
CAUTION!
Only an armored tow cable should be used for a 4200 Series Tow Vehicle
with a depressor wing; otherwise, loss of the tow vehicle could occur.
To install the depressor wing, and connect and attach the tow cable to the tow vehicle:
1. Verify that the tow cable is not connected to the topside processor.
2. Attach the tail fins to the tow vehicle and secure them with the thumbscrew.
3. Detach the safety cable from the tow vehicle rear handle.
4. Verify that the dummy plug is installed on the option connector if not used.
5. Remove the two towing arm bolts shown in F
IGURE 3-9, and remove the towing arm.
6. Install the depressor wing into the slot where the towing arm was mounted and secure it with the
two towing arm bolts.
7. Secure depressor safety cable to the rear handle of the tow vehicle.
8. For a wing angle of 0°, leave the configuration as shown in F
IGURE 3-9 with the angle adjustment
bolt at the 0° position. For a wing angle of 5°, loosen the pivot bolt and remove the angle
adjustment bolt and install this bolt. Install this bolt into the second available hole, as shown. For
a wing angle of 10°, install the bolt into the third available hole, as shown.
