4200 SIDE SCAN SONAR SYSTEM USER HARDWARE MANUAL 0004842
2.1.2.5 Net Burner
The Net Burner board mounts and connects directly to the Powerboard to provide Powerboard
diagnostics, tow vehicle power control, positive and negative trigger edge selection, and sensor
monitoring. An Ethernet connection to the Net Burner board is provided on J3 from the ADSL Modem
board. Power is input from the Powerboard.
2.1.2.6 Wireless Router
The Wireless Router connects to the ADSL Modem board over an Ethernet connection to provide a
wireless Ethernet connection to the laptop computer that is on the same LAN as the wired Ethernet
connection.
2.1.3 701-DL Digital Link
The electronics chassis is depicted in FIGURE 2-6. For block electronics and wiring diagrams of the 701-DL
Digital Link, see F
IGURE 2-7 and FIGURE 2-8, respectively.

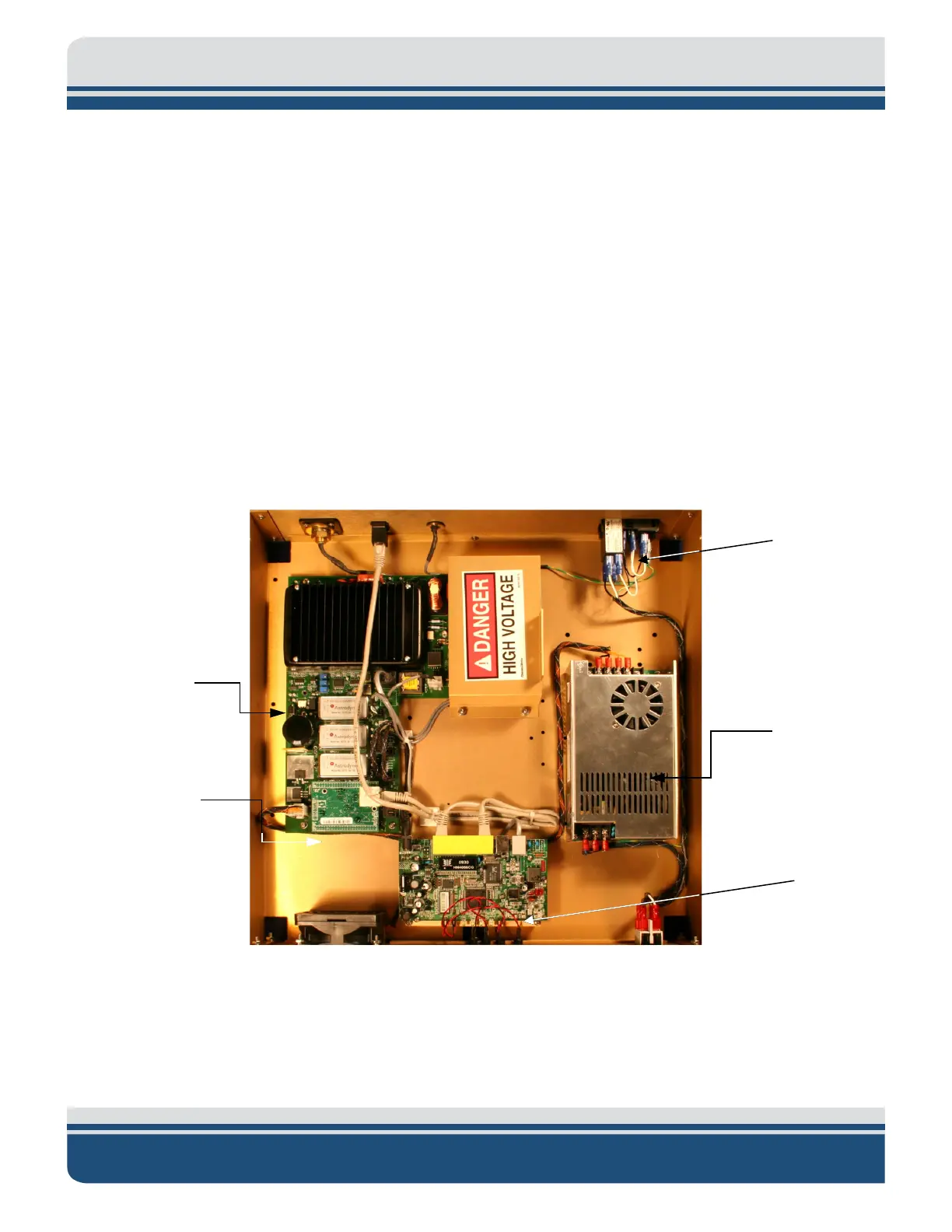

Figure 2-6: 701-DL Internal Hardware
Power board
ADSL modem
board
Power Entry Module
24 VDC
power
supply
Net Burner
board
