3-10

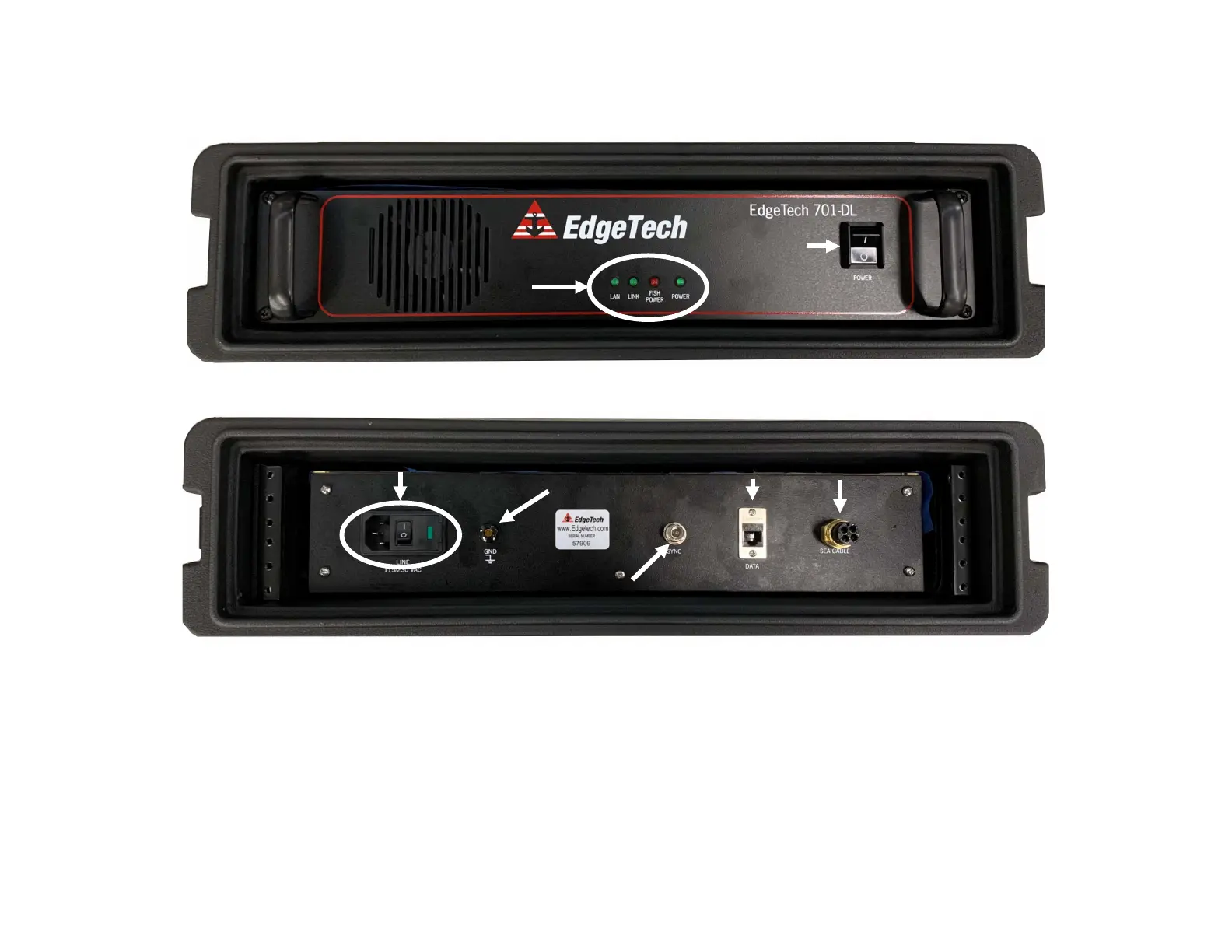

Figure 3-4: 701-DL Front and Back Panels
SYNC
connector
SEA CABLE
connector
LINE VAC connector,
Switch, and AC Fuse
DATA
connector
LAN, LINK, FISH POWER
and POWER indicators
POWER Switch
SEA CABLE
connector
GROUNDING
LUG
