5-6
4200 SIDE SCAN SONAR SYSTEM USER HARDWARE MANUAL 0004842_REV_N
9. Attach the supplied end cap removal handle to the end cap using the mounting screws. Finger
tighten the screws only.

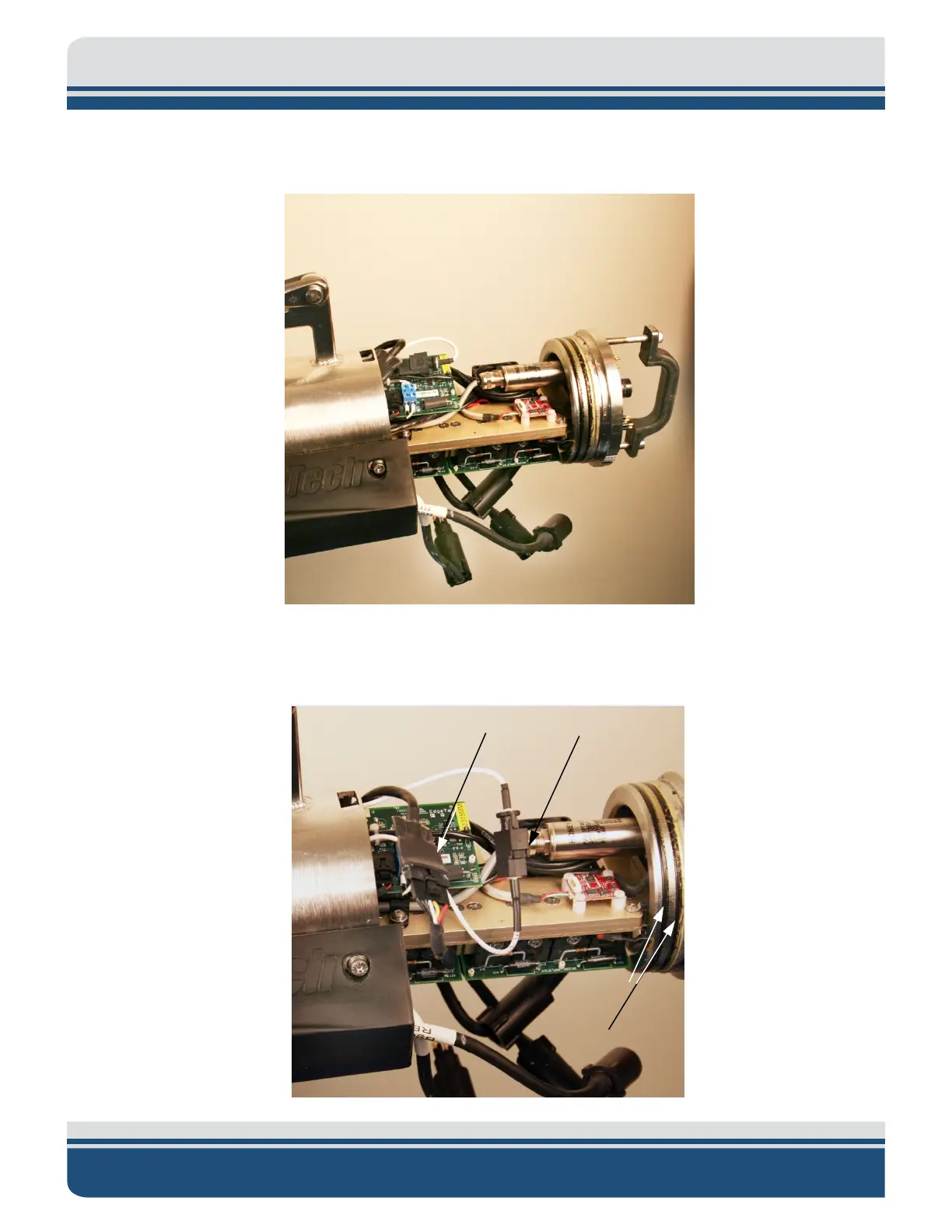

Figure 5-8: End Cap Extracted from Housing
10. Using the handle, carefully pull the end cap straight out until the electronics chassis is extracted—
but no more than five or six inches—from the housing.
Figure 5-9: Tow Cable and Option Connectors
