Edgetech 4200 User Manual

2-2
4200 SIDE SCAN SONAR SYSTEM USER HARDWARE MANUAL 0004842_REV_N
4200 RACK MOUNT
4200-P PORTABLE
701-DL DIGITAL LINK
Input voltage:
90–260 VAC, 50/60 Hz,
auto-switching
90–260 VAC, 50/60 Hz,
auto-switching
or 18-36 VDC
90–260 VAC, 50/60 Hz,
auto-switching
Input power: ~ 120 W
AC = 165W
DC = 185W
~ 120W
Power to tow vehicle:
400 VDC
Processor:
I7, 3.6 GHz Quad-Core
I7 1.8GHZ Quad-Core
—
Memory:
8 GB DDR4
8 GB
—
Data storage:
DVD/RW drive
1-TB hard drive (data)
500 GB hard drive (OS)
500 GB hard drive —
Operating system:
Windows 10, 64 Bit
Windows 10, 64 Bit
—
Application software:
Discover 4200
Discover 4200
—
Display:
21-inch LCD monitor
Laptop 15.6-inch LCD
—
Keyboard:
High impact industrial
Laptop keyboard
—
Pointing device:
High impact industrial
trackball
Laptop mouse pad —
Wireless ethernet: —
CENTRINO 802.11 BGN
2x2
—
External trigger:
5 VDC TTL positive or negative leading edge-triggered, selectable in Discover
I/O ports:
(1) Ethernet
(3) RS-232
(6) USB 2
(2) USB 3
(1) Trigger
(1) Ethernet
(1) FIREWIRE2
(3) USB 1
(1) SVGA
(1) Trigger
(1) Ethernet
(1) Trigger

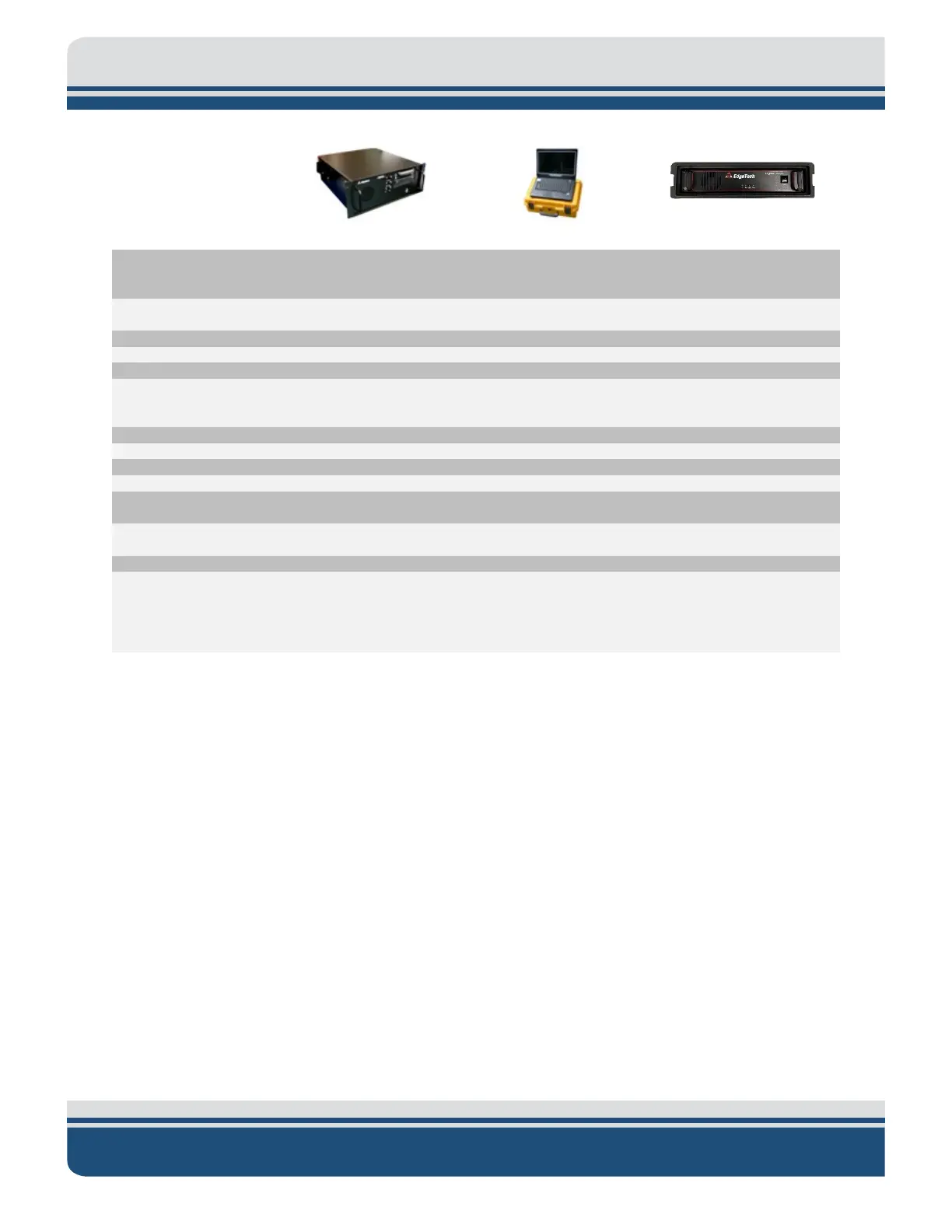

Table 2-1: 4200 Series Topside Processor Specifications
