Controls and Indicators
Rear Panel

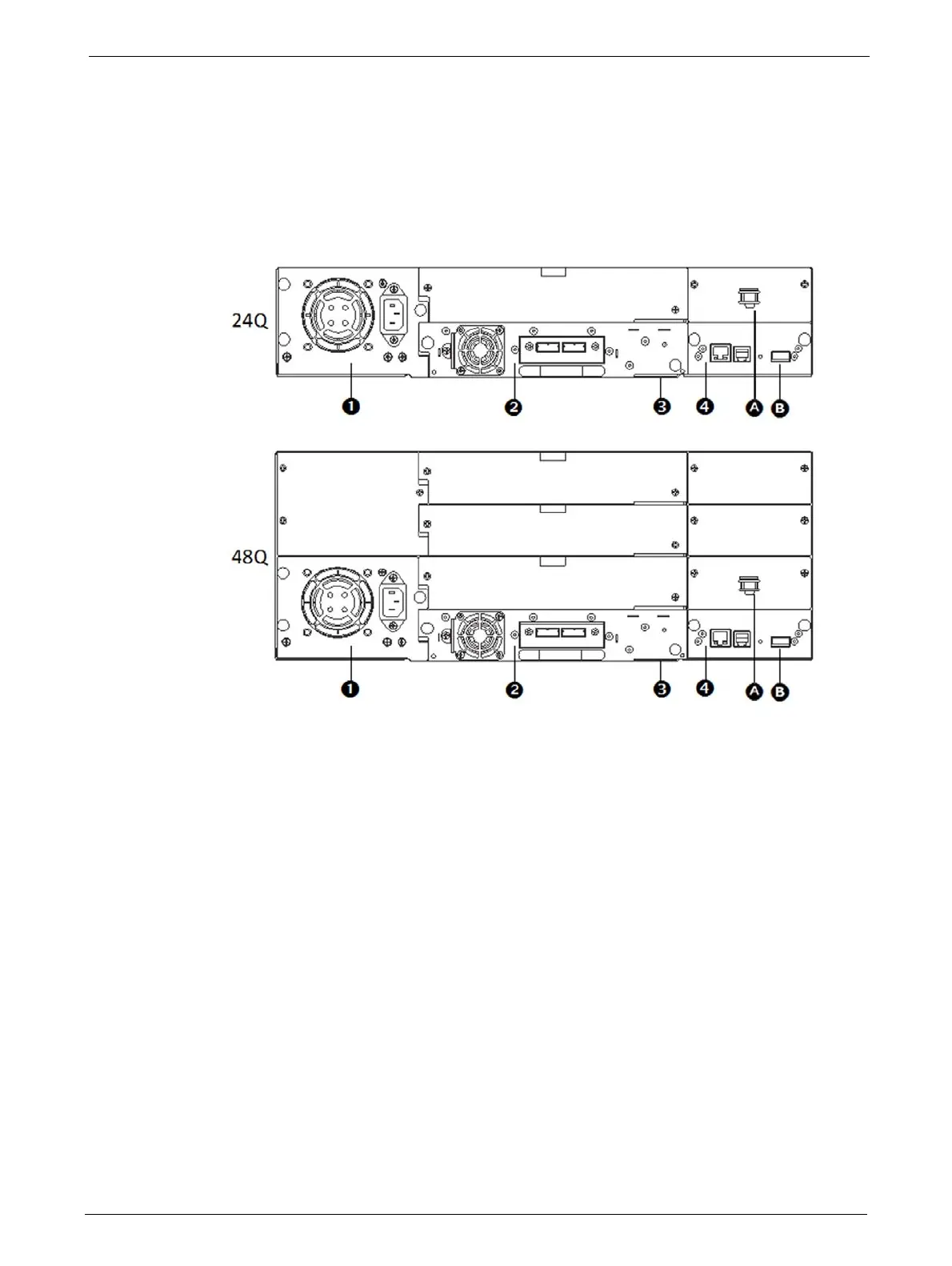

The rear panels of both tape libraries provide access to the drive interface connectors (either SAS
or Fibre Channel), the power connector, Ethernet, serial and USB ports and the magazine release
holes.
The power supply is on the left side, tape drives are in the middle and the library controller is on
the right side of
these
libraries.
1. Power supply (lower left) A Storage location for shipping lock.
2. Tape drive(s) B USB port (firmware upgrades, key storage)
3. Pull-out tab containing the product
inf
o
rmation
(Serial Number/Model/Customer)
4. Library controller
