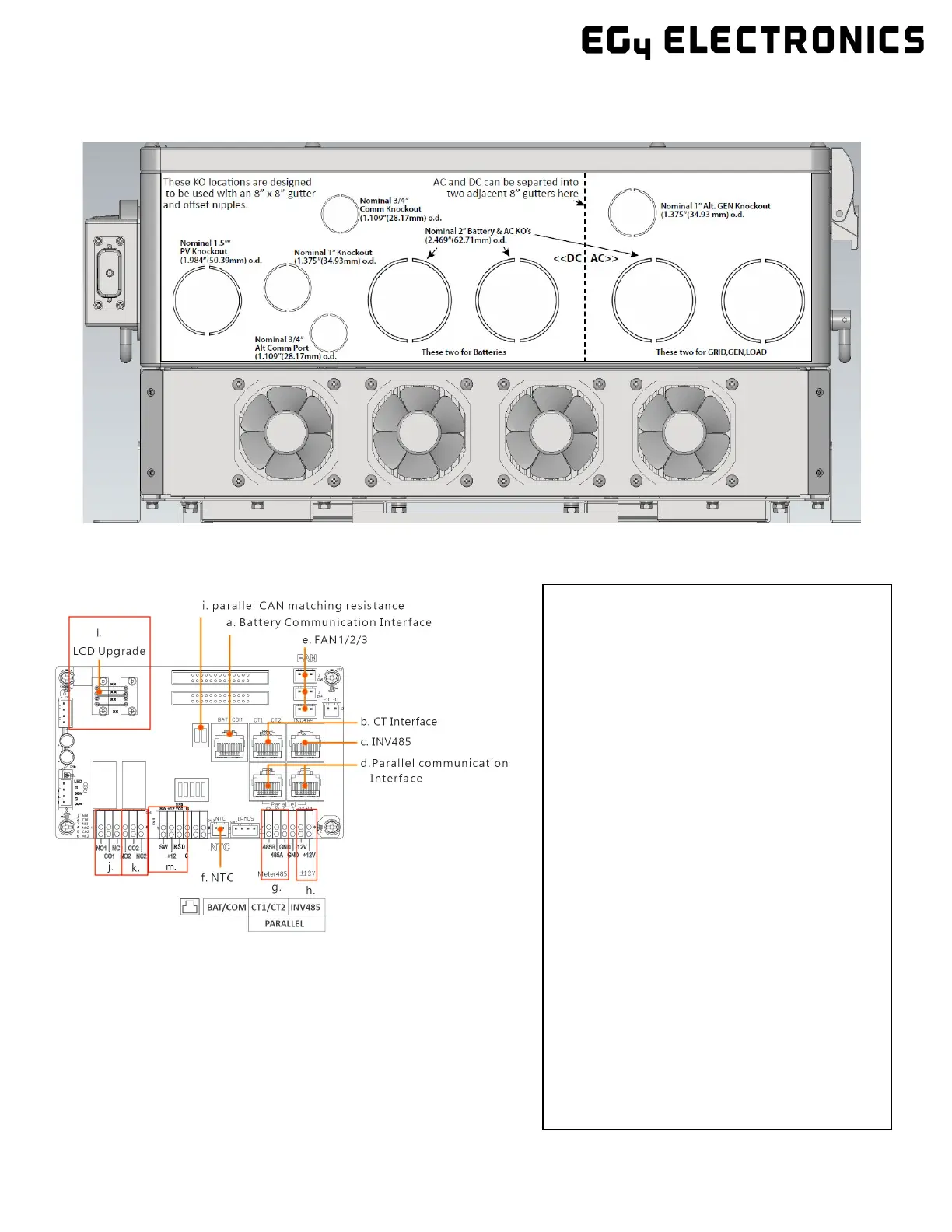

Overview of Connection Ports

a. Battery communication port (CAN &

RS485)

b. CT interface (refer to Section 4.5.6 for

CT connection)

c. INV 485: debugging port

d. Parallel communication port (refer to

Section 4.9 for parallel connection)

e. Fans 1/2/3

f. Temp sensor connection for lead- acid

battery

g. Meter 485B & 485A: for meter com-

munication

h. ±12V: reserved for customer to use –

500mA max

i. CAN matching resistance: set DIP

switch when using inverters in parallel

j. Connection for generator auto-start

function: GEN (NO, NC)

k. Reserved: DRY (NO, NC)

l. LCD UI upgrade port

m. RSD Terminals
