11.2.2 External RSD Wiring Instructions

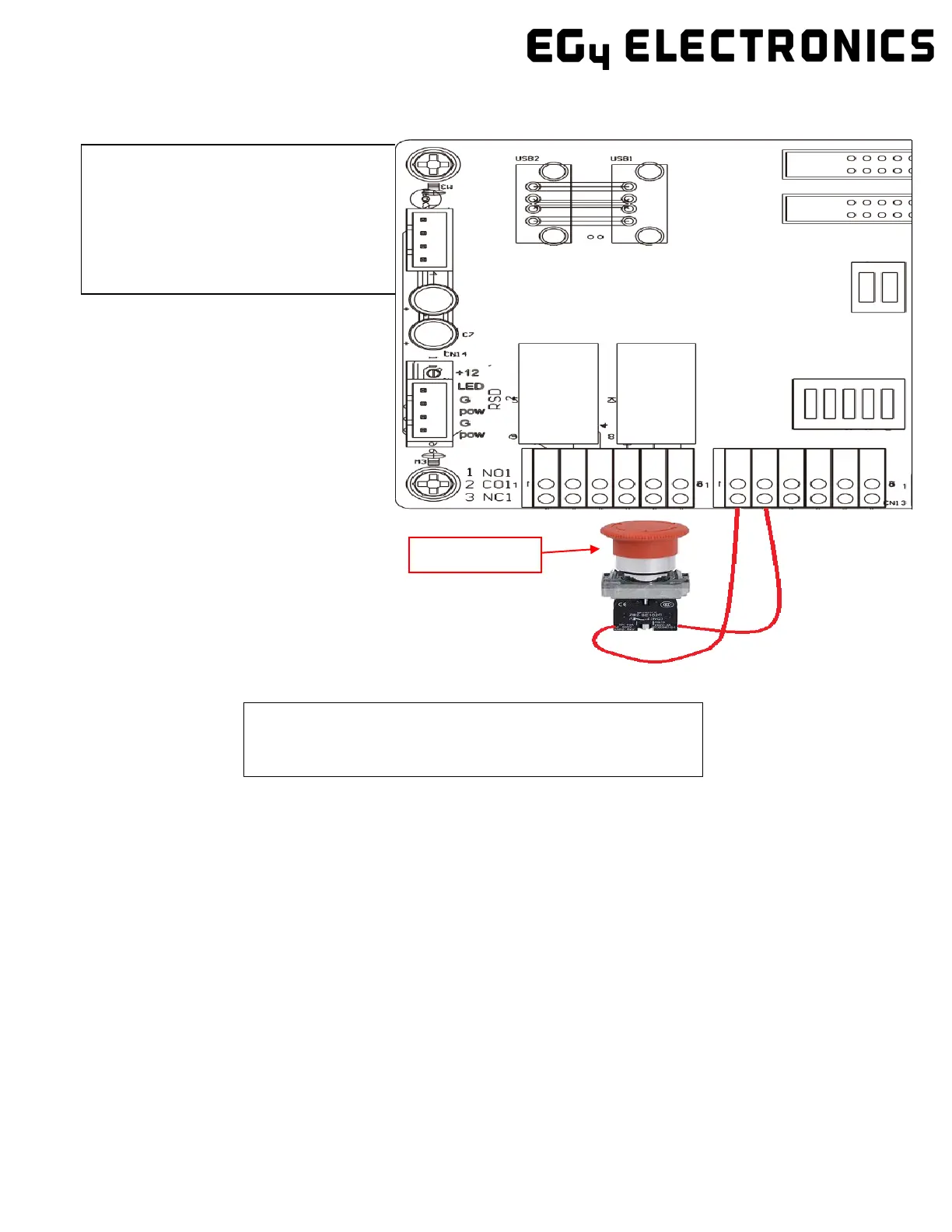

Wire the E-Stop Switch into the RSD
terminals according to the
Switch’s specifications.
See image to the right
E-Stop Switch
KEY NOTE: If your inverter does not have the RSD terminals
located in the above photo, please contact your distributor
for information regarding the steps for RSD installation.
