LCD Screen
Running status, real-time power, and daily and accumulated energy information can all be conveniently
viewed on the inverter’s LCD screen. Additionally, users can also check the alarm and fault record on the
display for troubleshooting.
11.3.1 Viewing Information and Alarm Fault/Record

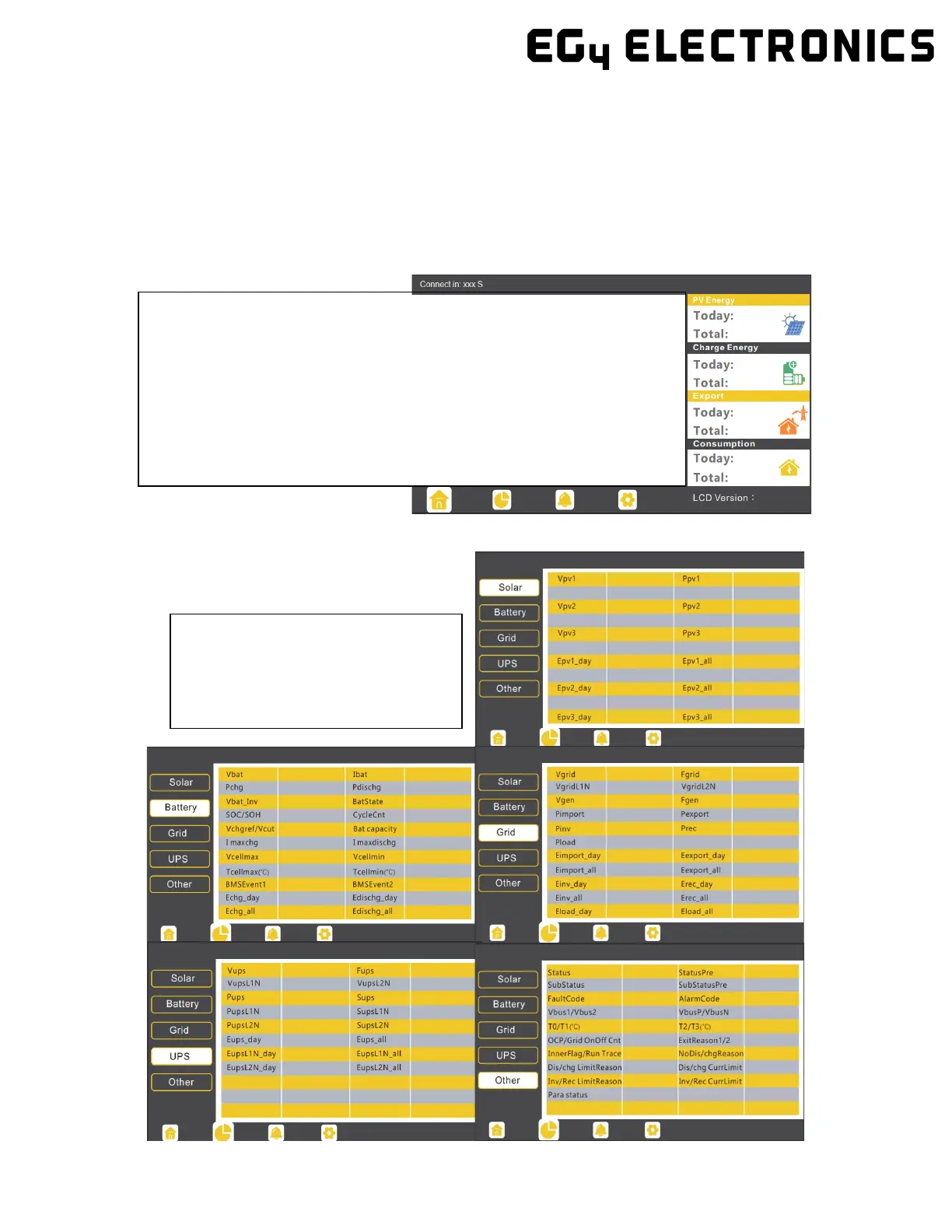

Home Screen
Detailed System Information
Click on the pie icon at the bottom of the
screen to view the detailed real-time so-
lar information, battery information, grid
information, and load output infor-
mation.
Touch the LCD screen to light it up if in sleep mode. The home page will appear on
the display. Users will see a system overview diagram along with real-time infor-
mation of each component such as battery SOC, battery charging/discharging
power, grid import/export power, load power, etc. On the right side of the screen,
users can check daily and accumulated solar energy, battery charge/discharge en-
ergy, grid import/export energy, as well as load consumption.
