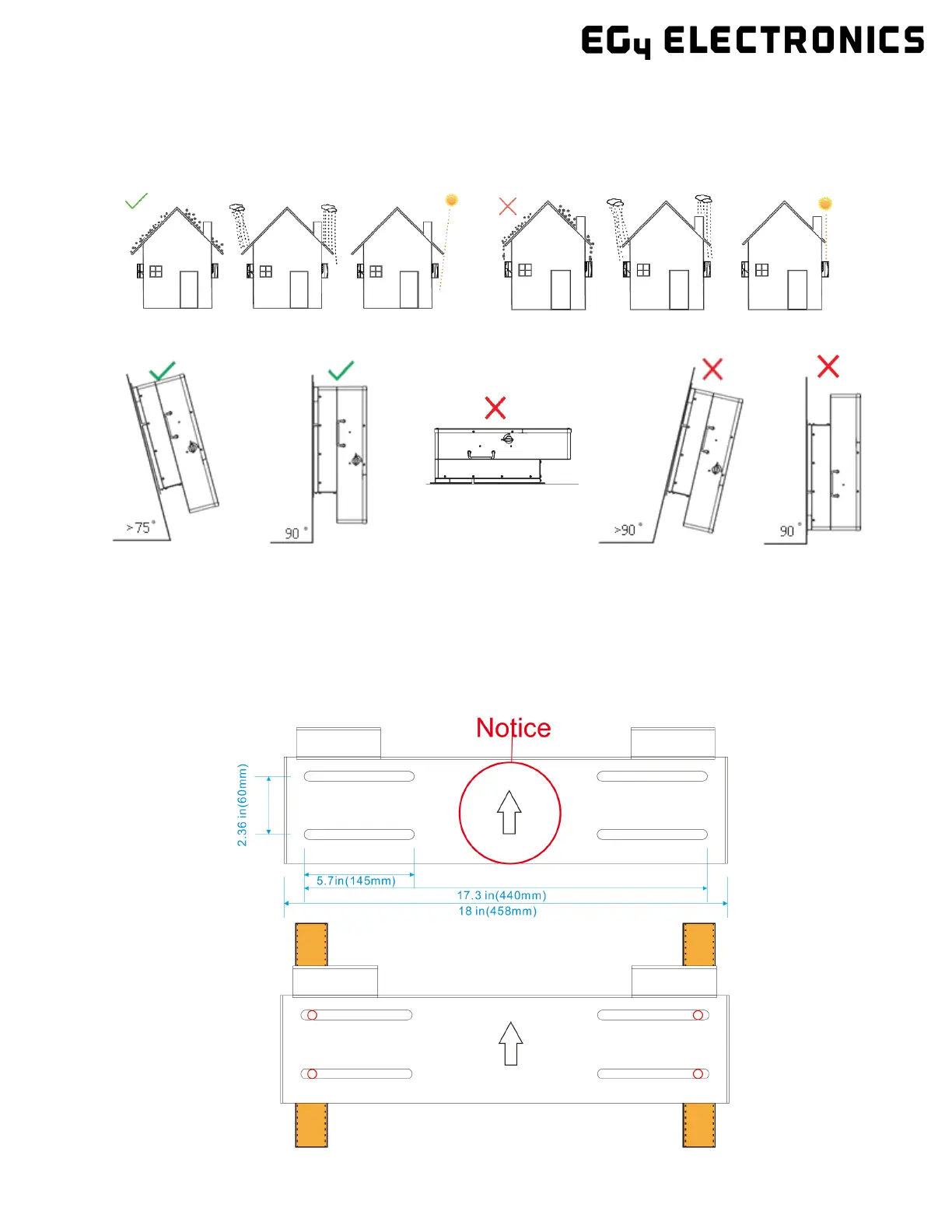

3. Never position the inverter in direct sunlight. Please refer to the figure below and choose a well-

shaded site or a shed to protect the inverter from direct sunlight. PROTECT the LCD screen from

excessive UV exposure.

4. The inverter should be installed upright on a vertical surface.

4.2.2 Installing the Inverter

The inverter is designed to be wall-mounted and should be installed on a vertical, solid, mounting sur-

face, such as brick, concrete, or other non-combustible material. Two or more people may be needed

to install the inverter due to its weight. The slots on the mounting bracket can accommodate various

stud spacings from 12 in. (305 mm) to 16 in. (406 mm).
