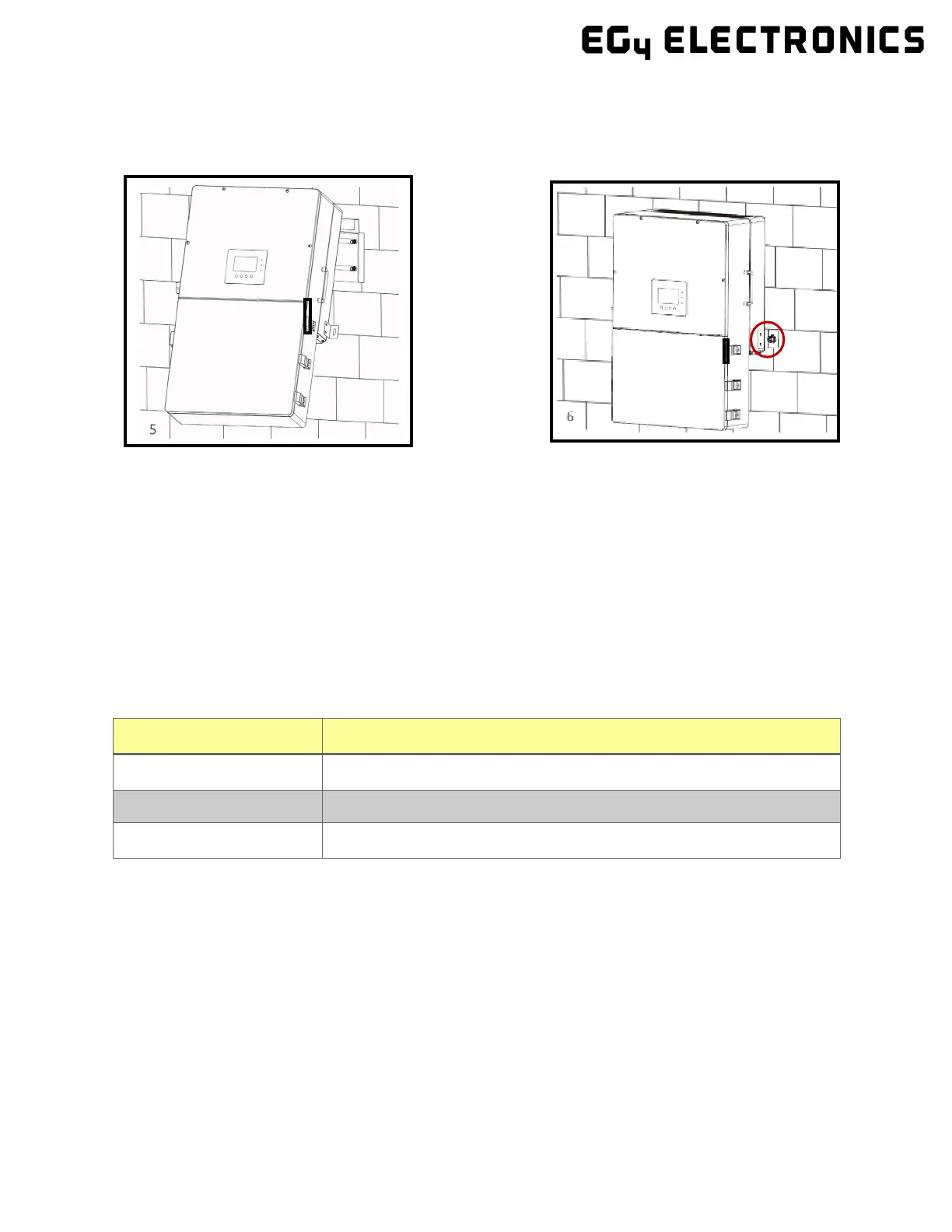

5. Hang the inverter on the wall-mount bracket and lock the inverter on the wall using two (2) self-

tapping screws on the top of the inverter (not included with inverter). Lock the safety screws on the

left and right sides.

For installation on concrete board with wood studs:

Fasten the mounting bracket to the studs with four (4) heavy duty wood screws, then hang the inverter

on the bracket and lock the inverter on the wall with two (2) self-tapping screws.

Please note that the wood screws and self-tapping screws are not provided with the inverter. Installers

will need to acquire the screws before installation.

4.3

Connection Overview

4.3.1 System Connections

Breaker selection recommendation for both DC and AC

Breaker/Switch

Recommended Breaker Rating

PV Input

PV Disconnect Switch: 600VDC/32A

AC Input/Output

See breaker notes on wiring diagrams (Page 28)

Generator

240VAC /100A
