54
• Charge First Power (kW): The max charge power from PV.
• Stop Charge first SOC (%)/Volt (V): The inverter sill stop charging the batteries if the bat-
tery SOC or Voltage exceeds these limits.
• Charge First Start Time 1-3: Start time for PV Charge First setting.
• Charge First End Time 1-3: End time for PV Charge First setting.
7.5

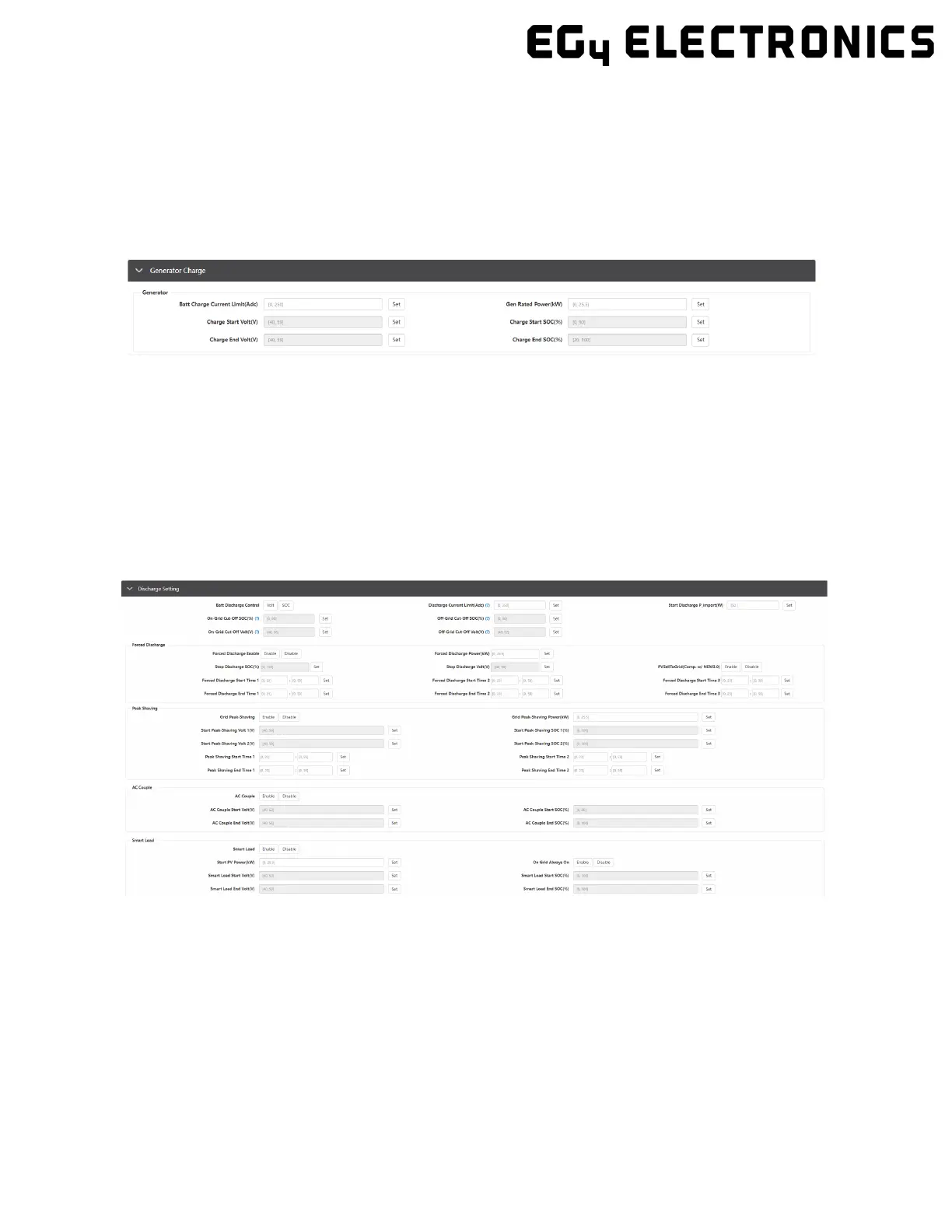

Generator Charge Settings
• Batt Charge Current Limitation (Adc) - Battery charge current limitation from Generator.
• Gen Rated Power (kW) - You can limit the battery charge power based on the detected in-
verter’s load consumption and Generator input power limitations.
• Charge Starts Volt(V)/SOC(%)- While using auto-start function of the generator, you can
limit the charge start voltage / SOC to start up the generator automatically.
• Charge End Volt(V)/SOC(%)- While using auto-start function of the generator, you can limit
the charge end voltage / SOC to turn off the generator automatically.
7.6
Discharge Settings
• Batt Discharge Control: If the inverter communicates with the Lithium battery and is capa-
ble of closed-loop communication, then you can select discharge control according to “SOC.”
When using lead-acid batteries or lithium batteries without communication, you can always
select discharge control according to “VOLT.”
• Discharge Current Limit(Adc): The max. discharge current limit when grid power is on.
• Start Discharge P_Import(W): Default value is 100 which means the battery will begin to
discharge power to take the load when the import power from grid is higher than 100Watts.
(Adjust range [50-100]).
• On-Grid Cut-Off SOC(%)/Volt(V): When the inverter connects to the grid and if the battery
